F4AMH (2009)
LOWER CASING & DRIVE 2

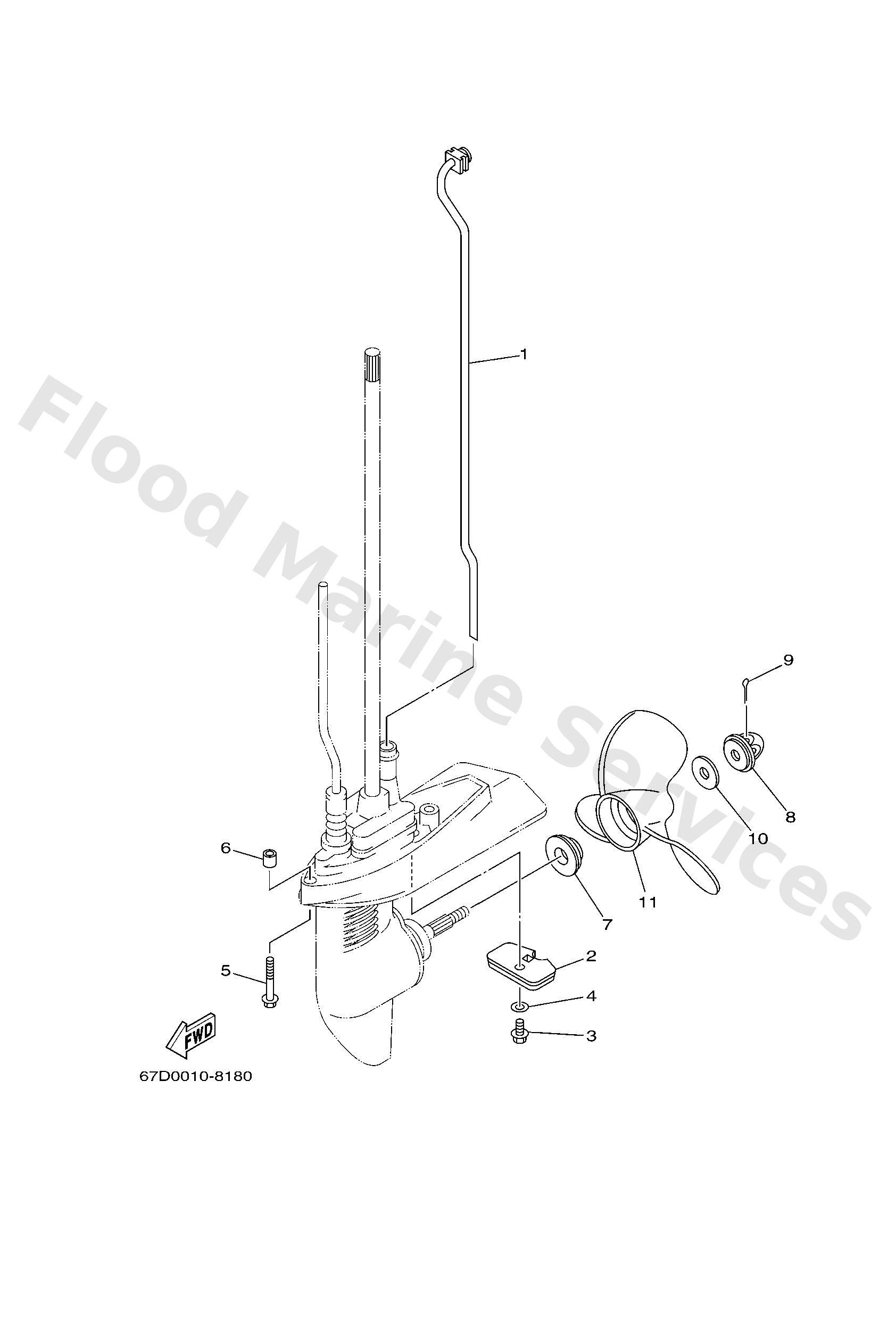

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
68DG436000
S(17.1")
Water Tube assembly
Loading…
↗
1
68DG436010
L(22.1")
Water tube assembly
Loading…
↗
2
68DG525100
Anode
Loading…
↗
3
9589506012
Bolt, flange deep recess
Loading…
↗
4
9299006300
Washer, tooth
Loading…
↗
5
9011906M40
S(17.1")
Bolt, with washer
Loading…
↗
6
9038706806
Collar(6e0)
Loading…
↗
7
68DG598700
Spacer 1
Loading…
↗
8
6L54561600
Nut, propeller
Loading…
↗
9
9149025030
Pin, cotter(6l5)
Loading…
↗
10
9020108M54
Washer, plate (6e5)
Loading…
↗
11
6E04594101EL
UR
Propeller (3x7-1/2 x8 -ba)
Loading…
↗
11
6E04594301EL
UR
Propeller (3x7-1/2"x7"-ba)
Loading…
↗
11
6E04594900EL
UR
Propeller (3x7-1/4 x6-1/2 -ba)
Loading…
↗
