F50FED (2005)
LOWER CASING & DRIVE 2

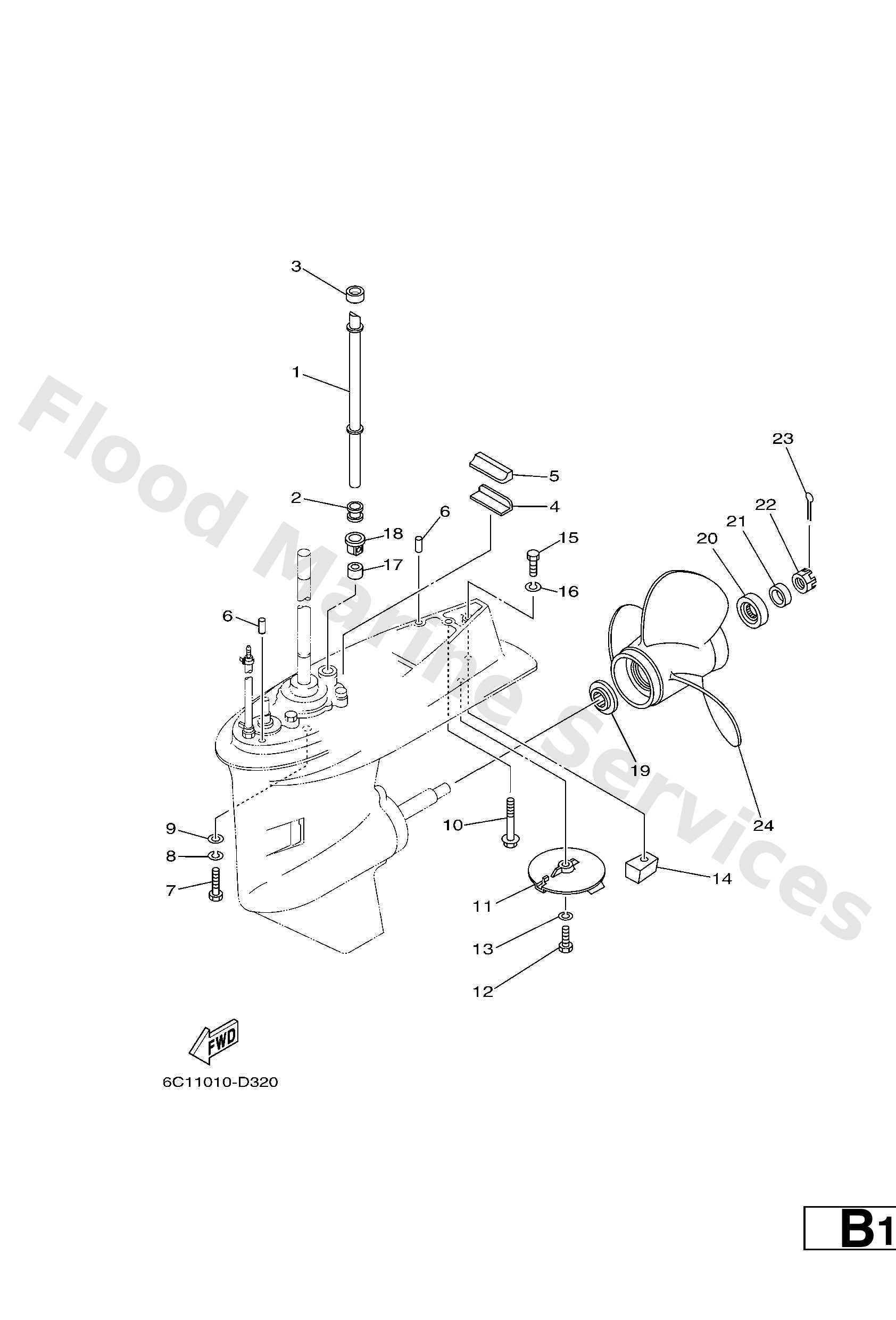

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6C54436100
L
Tube, water 1
Loading…
↗
2
6634436700
Damper, water seal 3
Loading…
↗
3
6634436600
Damper, water seal 2
Loading…
↗
4
663453760094
Guide, seal damper
Loading…
↗
5
63D4537500
Damper, seal
Loading…
↗
6
9360612019
Pin, dowel (614)
Loading…
↗
7
9707510040
L
Bolt, hexagon deep recess
Loading…
↗
8
9299510100
L
Ybs67-10 washer, spring
Loading…
↗
9
9299510600
L
Washer, plate
Loading…
↗
10
9011908M84
L
Bolt, with washer
Loading…
↗
11
67C4537100
Tab-trim
Loading…
↗
12
9709508025
Bolt (62g)
Loading…
↗
13
9299508100
Ybs67-8 washer, spring
Loading…
↗
14
67C4525100
Anode
Loading…
↗
15
9709508035
Bolt(70w)
Loading…
↗
18
63D4431200
Cover, water pump housing
Loading…
↗
19
6634598702
Spacer
Loading…
↗
20
66T4599700
Spacer 2
Loading…
↗
21
9038922M01
Bush
Loading…
↗
22
9017116011
Nut, castle (663)
Loading…
↗
23
9149030025
Pin cotter
Loading…
↗
24
69W4594500EL
UR
Propeller (3x11-1/8"x13"-g)
Loading…
↗
24
69W4594700EL
UR
Prop assembly (3x11-5/8"x11"-g)
Loading…
↗
24
69W4595200EL
UR
Propeller (3x11-3/8 x12 -g)
Loading…
↗
24
69W4594300EL
UR
Propeller (3x11 x15 -g)
Loading…
↗
24
663459780098
UR
Propeller (3x10-1/4"x16"-g)
Loading…
↗
24
663459760098
UR
Propeller (3x10-1/4"x15"-g)
Loading…
↗
24
663459740298
UR
Propeller (3x10-5/8"x13"-g)
Loading…
↗
24
663459300098
UR
Propeller (3x10-1/4"x14"-g)
Loading…
↗
24
697459700098
UR
Propeller (ss 3x11-1/4"x14"-g)
Loading…
↗
24
663459746098
UR
Propeller (3x11-1/2"x13"-g)
Loading…
↗
24
663459726098
UR
Propeller (3x12"x11"-g)
Loading…
↗
24
663459706098
UR
Propeller (3x11-3/4"x12"-g)
Loading…
↗
24
6H54595800EL
UR WITH LIP CUP
Propeller (3x10-1/4"x14"-g)
Loading…
↗
24
6H54595200EL
UR WITH LIP CUP
Propeller (3x10-5/8"x12"-g)
Loading…
↗
24
6H54594500EL
UR WITH LIP CUP
Propeller (3x10-3/8"x13"-g)
Loading…
↗
24
6H54594300EL
UR WITH LIP CUP
Propeller (3x10"x15"-g)
Loading…
↗
24
6634595801EL
UR
Propeller (3x11-1/4"x14"-g)
Loading…
↗
24
6634595601EL
UR
Propeller (3x12-1/4"x9"-g)
Loading…
↗
24
6634595202EL
UR
Propeller (3x11-3/8x12-g)
Loading…
↗
24
6634594901EL
UR
Propeller (3x10-3/4"x16"-g)
Loading…
↗
24
6634594101EL
UR
Propeller (3x10-3/4"x17"-g)
Loading…
↗
