F6AMH (2009)
LOWER CASING & DRIVE 2

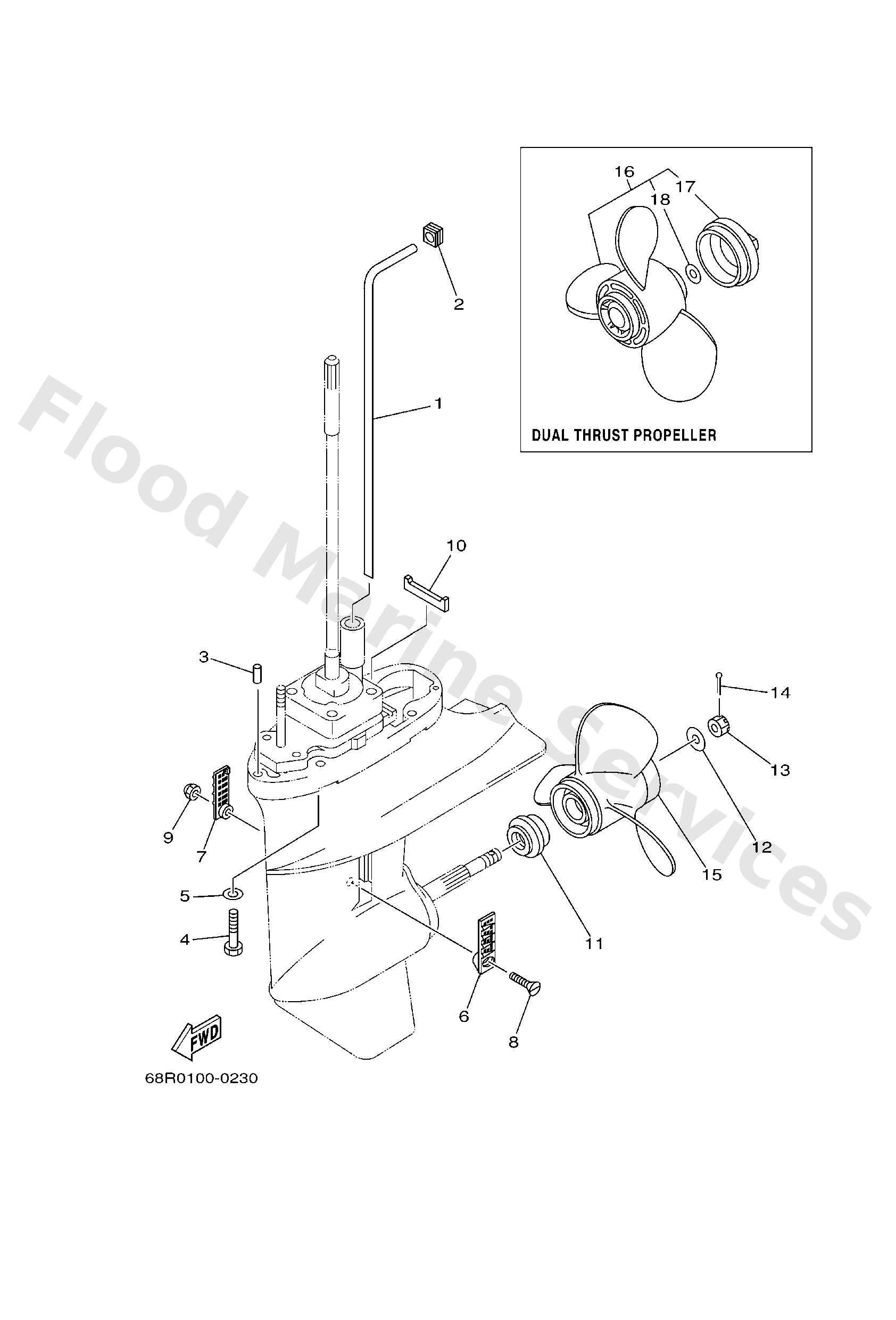

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
68T4436110
L(22.1")
Tube, water 1
Loading…
↗
1
68T4436100
S(17.1")
Tube, water 1
Loading…
↗
2
63V4436510
Damper, water seal 1
Loading…
↗
3
9360412M07
Pin, dowel (688)
Loading…
↗
4
9707508035
Bolt(70w)
Loading…
↗
5
9299508600
Washer, plain (663)
Loading…
↗
6
6G14521400
Cover, water inlet
Loading…
↗
7
6G14521500
Cover, water inlet
Loading…
↗
8
9015205M03
Screw, countersunk
Loading…
↗
9
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
10
63V4537500
Damper, seal
Loading…
↗
11
6N0G598710
Spacer
Loading…
↗
12
9020110M01
Washer, plate(6m7)
Loading…
↗
13
9017110M01
Nut castle (683)
Loading…
↗
14
9149030020
Pin cotter
Loading…
↗
15
6G14594100EL
UR
Propeller (3x8-1/2"x8-1/2"-n)
Loading…
↗
15
6G14594300EL
UR
Propeller (3x8-1/2 x7-1/2 -n)
Loading…
↗
15
6G14594700EL
UR
Propeller (3x8-1/2"x6-1/2"-n)
Loading…
↗
15
6G14595200EL
UR
Propeller (3x8-1/2 x8 -n)
Loading…
↗
16
6G1W459101EL
UR
Propeller (3x9 x7 -n)
Loading…
↗
16
6G1W459200EL
UR
Propeller (3x9 x5 -n)
Loading…
↗
17
6G14561601
Nut, propeller
Loading…
↗
18
9020110M02
Washer, plate(6g9)
Loading…
↗
