F6CMH (2013)
LOWER CASING & DRIVE 2

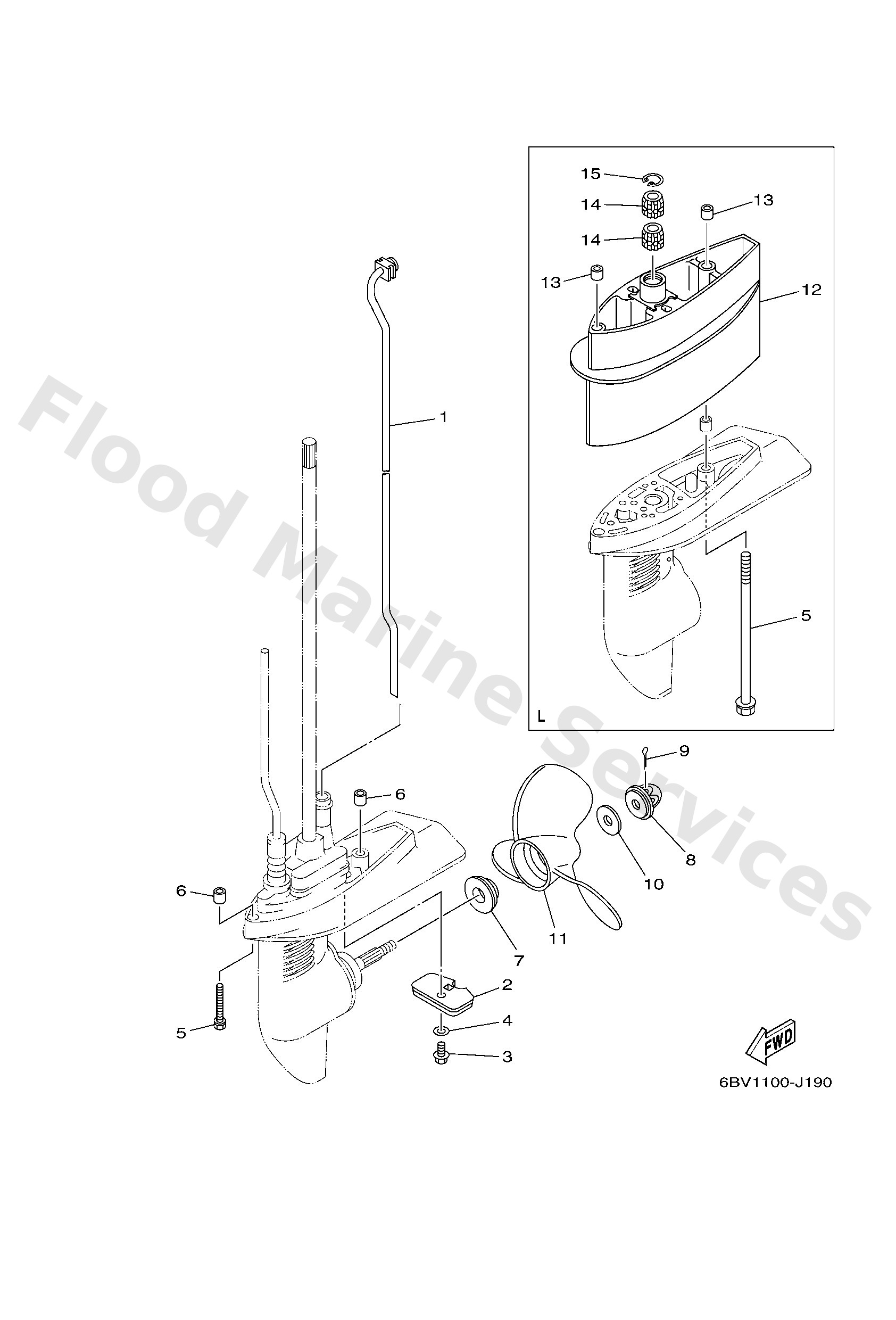

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6BXG436010
L(22.1")
Water tube assembly
Loading…
↗
1
6BXG436000
S(17.1")
Water tube assembly
Loading…
↗
2
68DG525100
Anode
Loading…
↗
3
9589506012
Bolt, flange deep recess
Loading…
↗
4
9299006300
Washer, tooth
Loading…
↗
5
9011906254
L(22.1")
Bolt, with washer
Loading…
↗
5
9011906253
S(17.1")
Bolt, with washer
Loading…
↗
13
9038706806
L(22.1")
Collar(6e0)
Loading…
↗
7
68DG598700
Spacer 1
Loading…
↗
8
6L54561600
Nut, propeller
Loading…
↗
9
9149025030
Pin, cotter(6l5)
Loading…
↗
10
9020108M54
Washer, plate (6e5)
Loading…
↗
11
6E04595400
UR
Propeller (3x7-1/2 x9 -ba)
Loading…
↗
11
6E04595200
UR
Propeller (3x7-1/4 x8-1/4 -ba)
Loading…
↗
11
6E04594900
UR
Propeller (3x7-1/4 x6-1/2 -ba)
Loading…
↗
11
6E04594301
UR
Propeller (3x7-1/2"x7"-ba)
Loading…
↗
11
6E04594101
UR
Propeller (3x7-1/2 x8 -ba)
Loading…
↗
12
6BXG5211004D
L(22.1")
Extension
Loading…
↗
14
6BX4531801
L(22.1")
Bushing, drive shaft
Loading…
↗
15
9342022M03
L(22.1")
Cir clip (6e0)
Loading…
↗
