F70AET (2011)
LOWER CASING & DRIVE 2

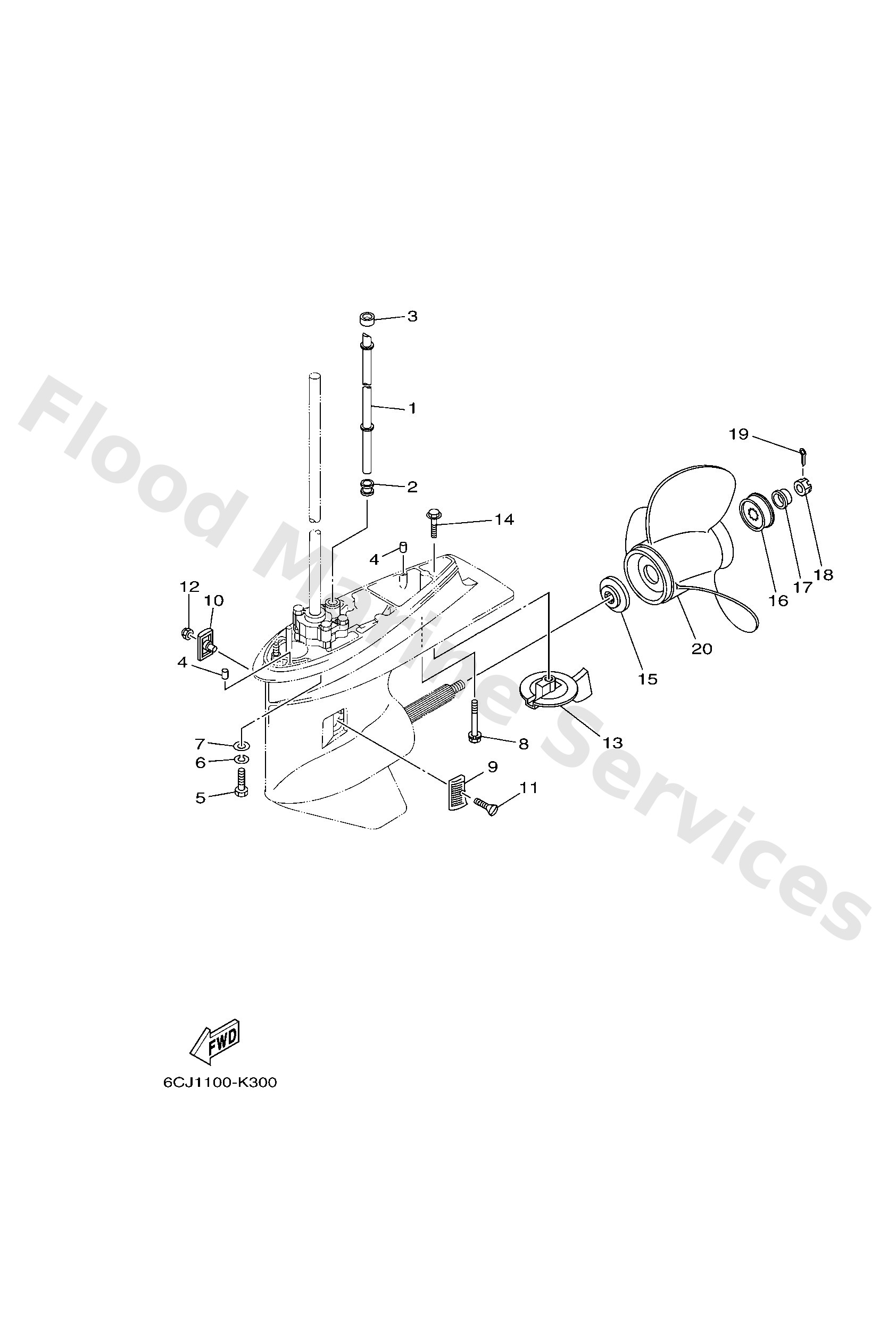

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6CJ4436100
L(21.0")
Tube, water 1
Loading…
↗
2
6634436700
Damper, water seal 3
Loading…
↗
3
6634436600
Damper, water seal 2
Loading…
↗
4
9360612019
Pin, dowel (614)
Loading…
↗
5
9707510040
L(21.0")
Bolt, hexagon deep recess
Loading…
↗
6
9299510100
L(21.0")
Ybs67-10 washer, spring
Loading…
↗
7
9299510600
L(21.0")
Washer, plate
Loading…
↗
8
9011908M84
L(21.0")
Bolt, with washer
Loading…
↗
9
6H14521400
Cover, water inlet
Loading…
↗
10
6H14521500
Cover, water inlet
Loading…
↗
11
9015105M00
Screw, countersunk(692)
Loading…
↗
12
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
13
67F4537100
Tab-trim
Loading…
↗
14
9010510M67
Bolt, hexagon (663)
Loading…
↗
15
6884598701
Spacer
Loading…
↗
16
67F4599700
Spacer 2
Loading…
↗
17
9038925M00
Bush
Loading…
↗
18
9017116011
Nut, castle (663)
Loading…
↗
19
9149040025
Pin, cotter (663)
Loading…
↗
20
6E54594300EL
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
20
6E54594501EL
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
20
6E54594700EL
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
20
6E54594900EL
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
20
6E54595200EL
UR
Propeller (3x13"x23"-k)
Loading…
↗
20
6E54595400EL
UR
Propeller (3x14"x11"-k)
Loading…
↗
20
6E54595600EL
UR
Propeller (3x13"x25"-k)
Loading…
↗
20
6E54594100EL
UR
Propeller (3x13x19-k)
Loading…
↗
20
68V4594300EL
UR
Propeller (3X13-1/2"X19"-K)
Loading…
↗
20
68V4594100EL
UR
Propeller (3X13-1/2"X17"-K)
Loading…
↗
20
688459326098
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
20
688459300298
UR
Propeller (3x13x17)
Loading…
↗
20
688459786098
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
20
688459760198
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
20
688459740298
UR
Propeller (3x13"x23"-k)
Loading…
↗
20
688459720298
UR
Propeller (3x13"x21"-k)
Loading…
↗
20
688459700398
UR
Propeller (3x13"x19"-k)
Loading…
↗
20
6E54595800EL
UR
Propeller (3x13-5/8"x14"-k)
Loading…
↗
