F80BET (2015)
LOWER CASING & DRIVE 2

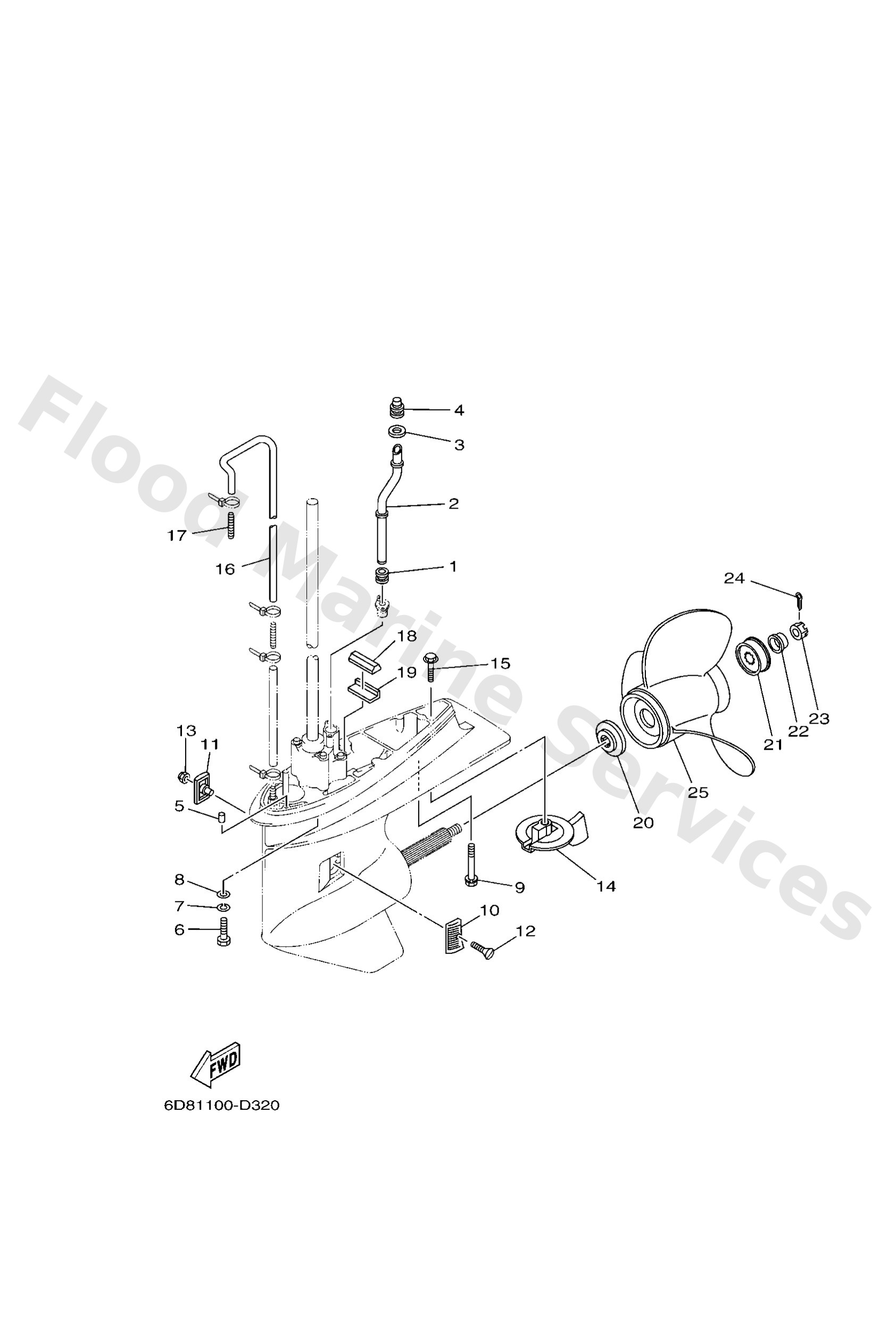

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6634436700
Damper, water seal 3
Loading…
↗
2
6D84436100
L(21.1")
Tube, water 1
Loading…
↗
2
6D84436110
X(26.1")
Tube, water 1
Loading…
↗
3
6D84431400
Spacer
Loading…
↗
4
67F4436500
Damper, water seal
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
9707510040
L(21.1")
Bolt, hexagon deep recess
Loading…
↗
7
9299510100
L(21.1")
Ybs67-10 washer, spring
Loading…
↗
8
9299510600
L(21.1")
Washer, plate
Loading…
↗
9
9011908M84
L(21.1")
Bolt, with washer
Loading…
↗
9
9011908M86
X(26.1")
Bolt, with washer(62x)
Loading…
↗
10
6H14521400
Cover, water inlet
Loading…
↗
11
6H14521500
Cover, water inlet
Loading…
↗
12
9015105M00
Screw, countersunk(692)
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
67F4537100
Tab-trim
Loading…
↗
15
9010510M67
Bolt, hexagon (663)
Loading…
↗
16
9044507ME0
Hose (l1457)
Loading…
↗
17
6E58355800
End, nipple
Loading…
↗
18
6884537500
Damper, seal 2
Loading…
↗
19
6634537600
Guide, seal damper
Loading…
↗
20
6884598701
Spacer
Loading…
↗
21
67F4599700
Spacer 2
Loading…
↗
22
9038925M00
Bush
Loading…
↗
23
9017116011
Nut, castle (663)
Loading…
↗
24
9149040030
Pin, cotter (663)
Loading…
↗
25
6E54594100
UR
Propeller (3x13x19-k)
Loading…
↗
25
6884593260
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
25
6884593002
UR
Propeller (3x13x17)
Loading…
↗
25
6884597860
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
25
6884597601
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
25
6884597402
UR
Propeller (3x13"x23"-k)
Loading…
↗
25
6884597202
UR
Propeller (3x13"x21"-k)
Loading…
↗
25
6884597003
UR
Propeller (3x13"x19"-k)
Loading…
↗
25
6E54595800
UR
Propeller (3x13-5/8"x14"-k)
Loading…
↗
25
6E54595600
UR
Propeller (3x13"x25"-k)
Loading…
↗
25
6E54595400
UR
Propeller (3x14"x11"-k)
Loading…
↗
25
6E54595200
UR
Propeller (3x13"x23"-k)
Loading…
↗
25
6E54594900
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
25
6E54594700
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
25
6E54594501
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
25
6E54594300
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
