F9.9HMH (2015)
LOWER CASING & DRIVE 2

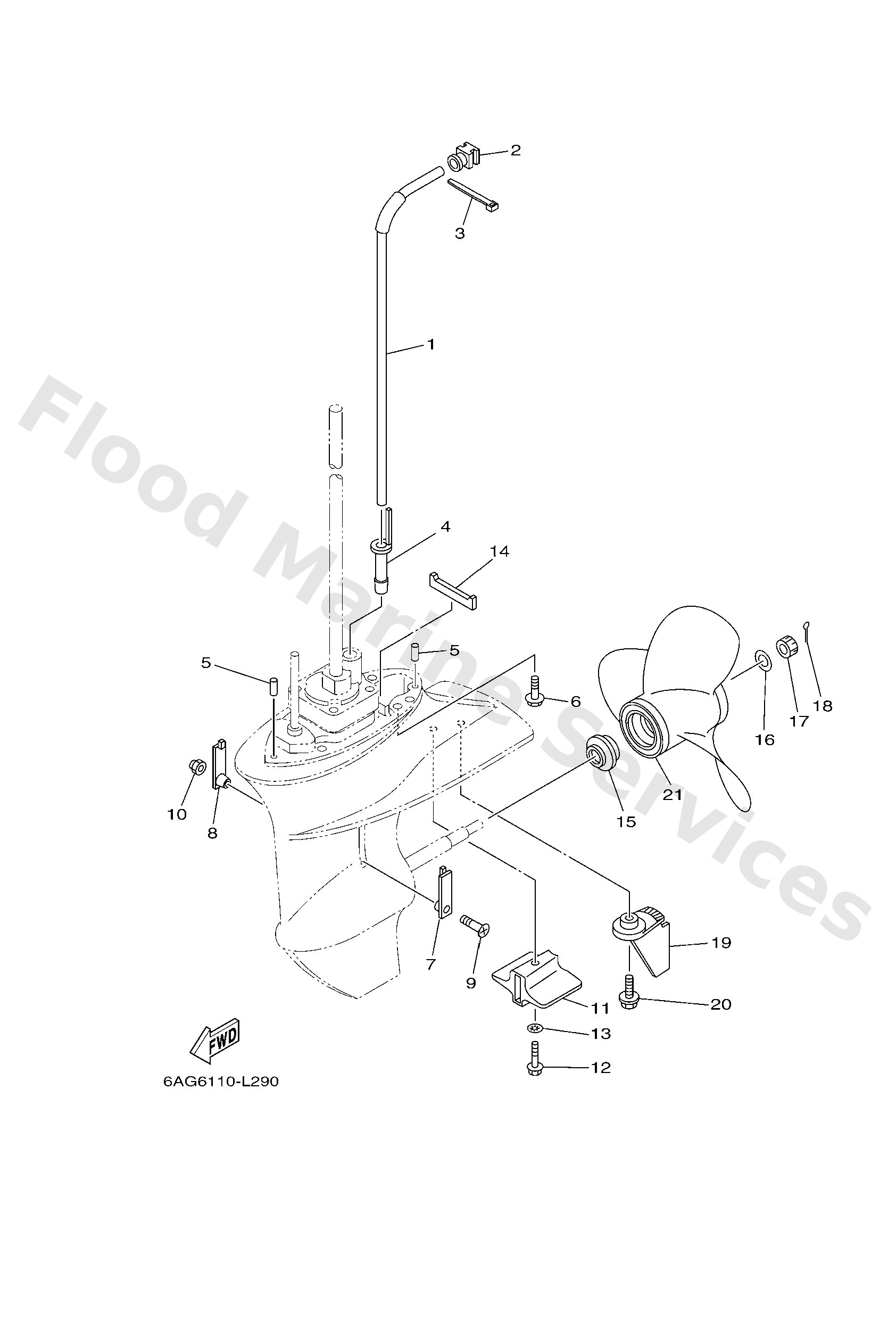

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6AH4436111
L(22.1")
Tube, water 1
Loading…
↗
1
6AH4436101
S(17.1")
Tube, water 1
Loading…
↗
2
6AH4436500
Damper, water seal 1
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
6AH4436800
Rubber, water seal 4
Loading…
↗
5
9360412M07
Pin, dowel (688)
Loading…
↗
6
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
7
6G14521400
Cover, water inlet
Loading…
↗
8
63V4521500
Cover, water inlet
Loading…
↗
9
9015205011
Screw, countersunk
Loading…
↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
11
6AH4525100
Anode
Loading…
↗
12
9589506035
Bolt, flange(4nx)
Loading…
↗
13
9299006300
Washer, tooth
Loading…
↗
14
63V4537500
Damper, seal
Loading…
↗
15
6E74598701
Spacer
Loading…
↗
16
9020110M01
Washer, plate(6m7)
Loading…
↗
17
9017110M01
Nut castle (683)
Loading…
↗
18
9149030020
Pin cotter
Loading…
↗
19
6AH45371A04D
Tab-trim
Loading…
↗
20
9011906M88
Bolt, with washer
Loading…
↗
21
63V4594110
UR
Propeller (3x9-1/4 x12 -j1)
Loading…
↗
21
63V4594310
UR
Propeller (3x9-1/4 x11 -j1)
Loading…
↗
21
63V4594510
UR
Propeller (3x9-1/4 x9 -j1)
Loading…
↗
21
63V4595210
UR
Propeller (3x9-1/4 x10 -j1)
Loading…
↗
21
6834594100
UR
Propeller (3x9-1/4"x12"-j)
Loading…
↗
21
6834594300
UR
Propeller (3x9-1/4"x10-1/2"-j)
Loading…
↗
21
6834595200
UR
-
Loading…
↗
