FL115AET (2014)
LOWER CASING & DRIVE 2

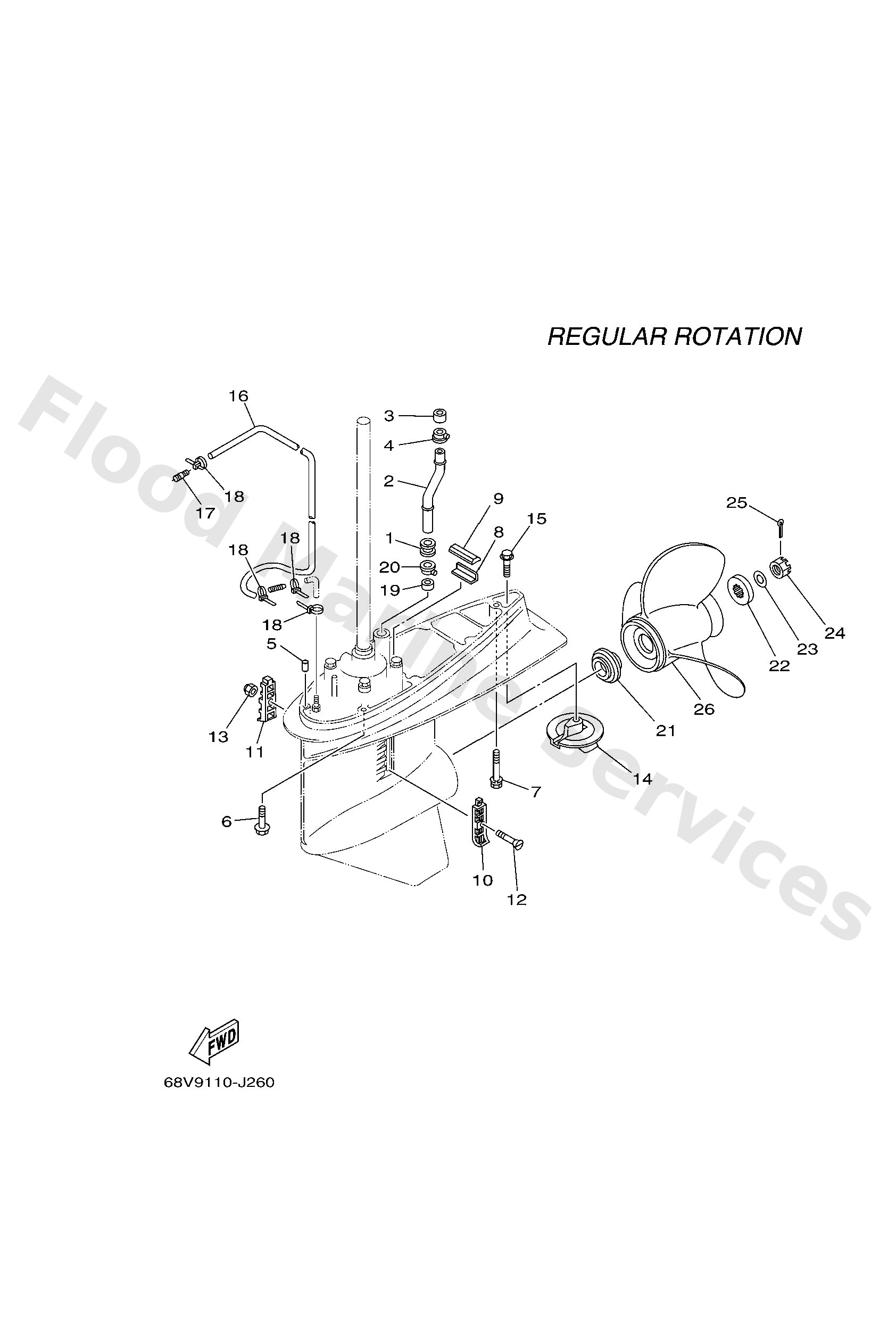

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
68V4436111
L(20.3")
Tube, water 1
Loading…
↗
2
68V4436130
X(25.3")
Tube, water 1
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
6E54431200
Cover, water pump housing
Loading…
↗
5
9360812M05
Pin, dowel b (6e5)
Loading…
↗
6
9757510545
Bolt, hexagon w/w deep recess
Loading…
↗
7
9011910M89
Bolt, with washer
Loading…
↗
8
6634537600
Guide, seal damper
Loading…
↗
9
6884537500
Damper, seal 2
Loading…
↗
10
6884521402
Cover, water inlet
Loading…
↗
11
6884521502
Cover, water inlet
Loading…
↗
12
9015205M07
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
6E54537101
Trim tab
Loading…
↗
15
9010510M00
Bolt, hexagon (663)
Loading…
↗
16
90445076K2
Hose (l1700)
Loading…
↗
17
6E58355800
End, nipple
Loading…
↗
18
9046511M10
Clamp
Loading…
↗
21
63P4598700
Spacer 1
Loading…
↗
22
6884599701
Spacer 2
Loading…
↗
23
9299018200
Washer (6e5)
Loading…
↗
24
9017118M04
Nut, castle (6e5)
Loading…
↗
25
9149040030
Pin, cotter (663)
Loading…
↗
26
6E54594100
UR
Propeller (3x13x19-k)
Loading…
↗
26
62A4597600
UR
-
Loading…
↗
26
62A4597410
UR
-
Loading…
↗
26
62A4597210
UR
-
Loading…
↗
26
62A4597010
UR
-
Loading…
↗
26
68V4594300
UR
Propeller (3X13-1/2"X19"-K)
Loading…
↗
26
68V4594100
UR
Propeller (3X13-1/2"X17"-K)
Loading…
↗
26
6884597860
UR
Propeller (3x13-1/2"x16"-k)
Loading…
↗
26
6884597601
UR
Propeller (ss 3x13"x25"-k)
Loading…
↗
26
6884597402
UR
Propeller (3x13"x23"-k)
Loading…
↗
26
6884597202
UR
Propeller (3x13"x21"-k)
Loading…
↗
26
6884597003
UR
Propeller (3x13"x19"-k)
Loading…
↗
26
6884593260
UR
Propeller (3x13-1/2"x14"-k)
Loading…
↗
26
6884593002
UR
Propeller (3x13x17)
Loading…
↗
26
6E54595800
UR
Propeller (3x13-5/8"x14"-k)
Loading…
↗
26
6E54595600
UR
Propeller (3x13"x25"-k)
Loading…
↗
26
6E54595400
UR
Propeller (3x14"x11"-k)
Loading…
↗
26
6E54595200
UR
Propeller (3x13"x23"-k)
Loading…
↗
26
6E54594900
UR
Propeller (3x13-5/8"x13"-k)
Loading…
↗
26
6E54594700
UR
Propeller (3x13-1/2x15-k)
Loading…
↗
26
6E54594501
UR
Propeller (3x13-1/4x17-k)
Loading…
↗
26
6E54594300
UR
Propeller (3x12-5/8"x21"-k)
Loading…
↗
