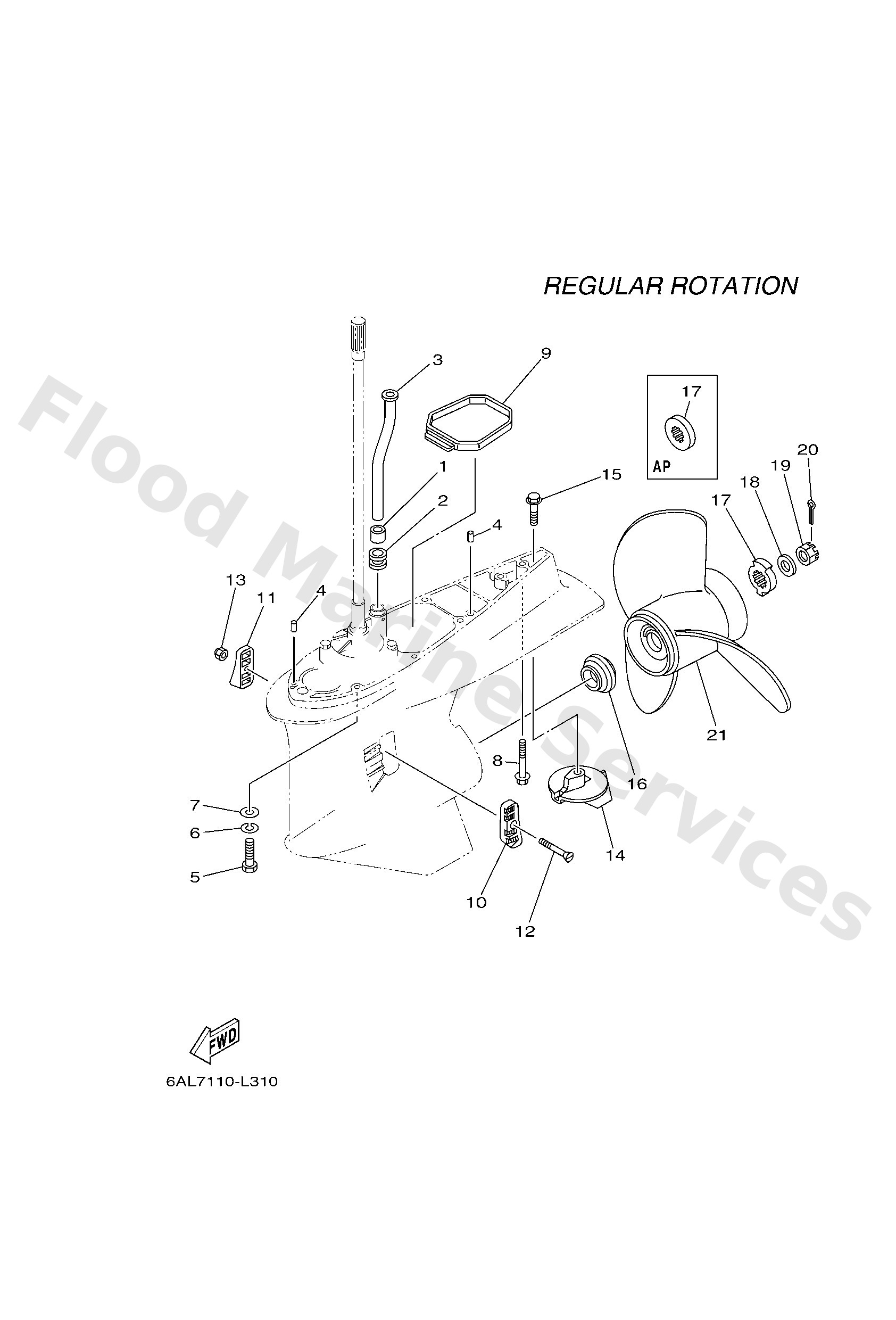

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

Reference

Description

Price

1

6E54436500

Damper, water seal 1

Loading…

2

6E54436600

Damper, water seal 2

Loading…

3

6S14436111 U(30.3")

Loading…

3

6S14436101 X(25.3")

Loading…

4

9360812M05

Pin, dowel b (6e5)

Loading…

5

9709510045 X(25.3")

Loading…

6

9299510100 X(25.3")

Ybs67-10 washer, spring

Loading…

7

9299510600 X(25.3")

Loading…

8

9011910008 U(30.3")

Bolt, with washer

Loading…

8

9011910MA2 X(25.3")

Bolt, with washer

Loading…

9

69J4537500

Loading…

10

61A4521411

Cover, water inlet 1

Loading…

11

61A4521511

Cover, water inlet 2

Loading…

12

9015205003

Screw, countersunk

Loading…

13

9018505002

Nut nylon (sus)(ex4)

Loading…

14

61A4537100

Loading…

15

9010510M00

Bolt, hexagon (663)

Loading…

16

69J4598700

Loading…

17

6884599701 AP FOR STD PROP.

Loading…

17

6CE4599700

Loading…

18

9299018200

Loading…

19

9017118M04

Nut, castle (6e5)

Loading…

20

9149040030

Pin, cotter (663)

Loading…

21

6G54597002 UR

Propeller (3x15-1/4 x15 -m)

Loading…

21

6G54597202 UR

Propeller (3x13-3/4 x21 -m)

Loading…

21

6G54597403 UR

Propeller (3x13-3/4"x19"-m2)

Loading…

21

6G54597803 UR

Propeller (3x13-3/4"x17"-m2)

Loading…

21

61A4597400 UR

Propeller (3x14-1/2"x19"-t)

Loading…

21

61A4597800 UR

Propeller (3x15"x17"-t)

Loading…

21

6R445970A1 UR

Propeller (3X15-1/4"X19"-M)

Loading…

21

6R445972A0 UR

Propeller (3X14-7/8"X21"-M)

Loading…

21

6R445974A0 UR

Propeller (3X14-1/2"X23"-M)

Loading…

21

6R445976A0 UR

Propeller (3X14-1/2"X15"-M)

Loading…

21

6R445978A0 UR

Propeller (3X15-1/4"X17"-M)

Loading…

21

6BR45B7000 UR

Propeller (4X15"X21"-T)

Loading…

21

6BR45B7200 UR

Propeller (4X15"X22"-T)

Loading…

21

6BR45B7400 UR

Propeller (4X15"X23"-T)

Loading…

21

61A4597200 UR

Propeller (3x14-1/2"x21"-t)

Loading…
