FL200CET (2018)
LOWER CASING & DRIVE 2

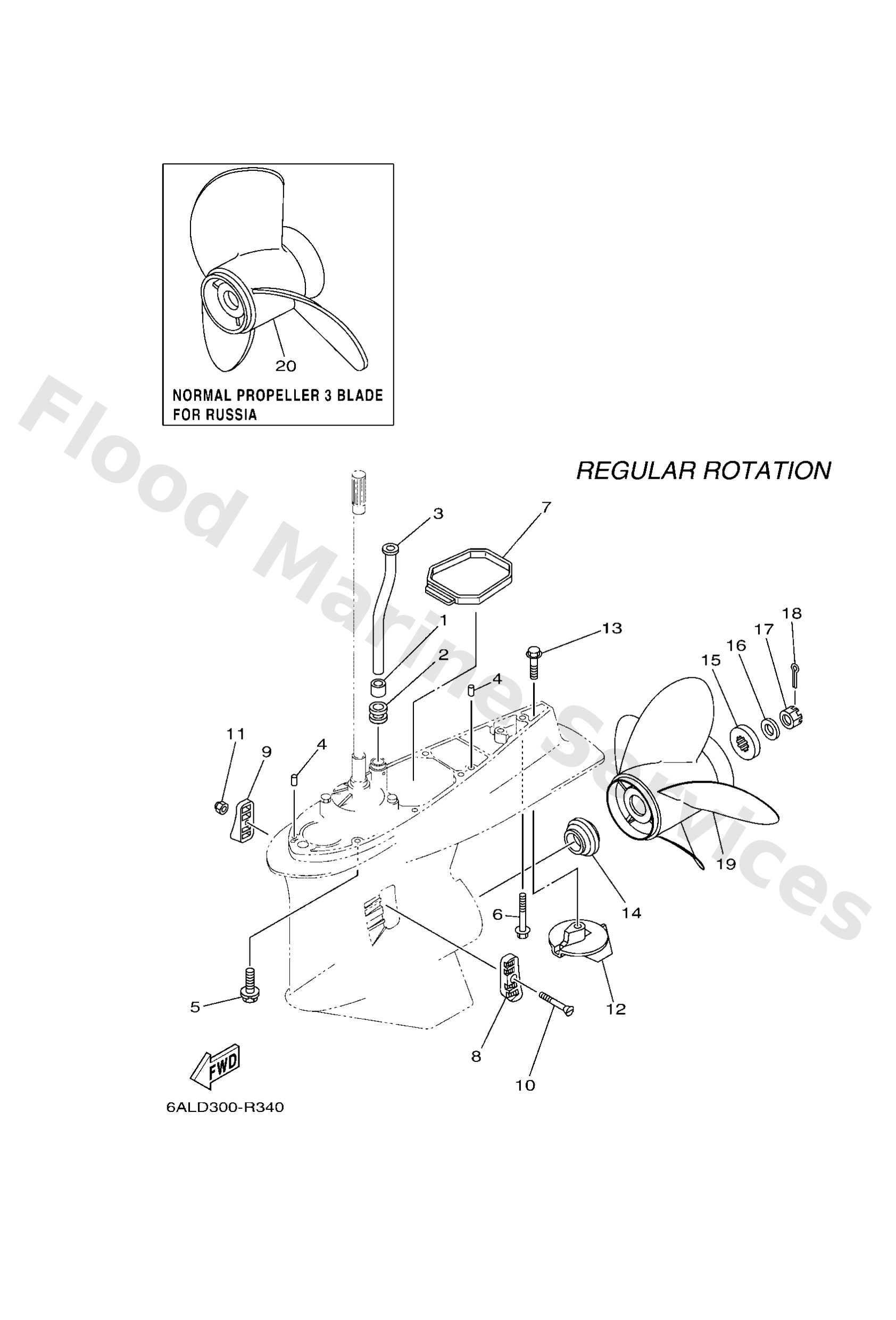

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436500
Damper, water seal 1
Loading…
↗
2
6E54436600
Damper, water seal 2
Loading…
↗
3
6S14436102
X(25.3")
Tube, water 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9759510645
X(25.3")
Bolt, hexagon w/w deep recess
Loading…
↗
6
9011910MA2
X(25.3")
Bolt, with washer
Loading…
↗
7
69J4537500
Damper, seal
Loading…
↗
8
61A4521411
Cover, water inlet 1
Loading…
↗
9
61A4521511
Cover, water inlet 2
Loading…
↗
10
9015205003
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
61A4537100
Anode
Loading…
↗
13
9010510M00
Bolt, hexagon (663)
Loading…
↗
14
69J4598700
Spacer 1
Loading…
↗
15
6884599701
Spacer 2
Loading…
↗
16
9299018200
Washer (6e5)
Loading…
↗
17
9017118M04
Nut, castle (6e5)
Loading…
↗
18
9149040030
Pin, cotter (663)
Loading…
↗
19
6BR45B7000
UR NORMAL 4 BLADE
Propeller (4X15"X21"-T)
Loading…
↗
19
6BR45B7200
UR NORMAL 4 BLADE
Propeller (4X15"X22"-T)
Loading…
↗
19
6BR45B7400
UR NORMAL 4 BLADE
Propeller (4X15"X23"-T)
Loading…
↗
20
61A4597200
NORMAL 3 BALDE FOR RUS
Propeller (3x14-1/2"x21"-t)
Loading…
↗
