FL225BET (2014)
LOWER CASING & DRIVE 2

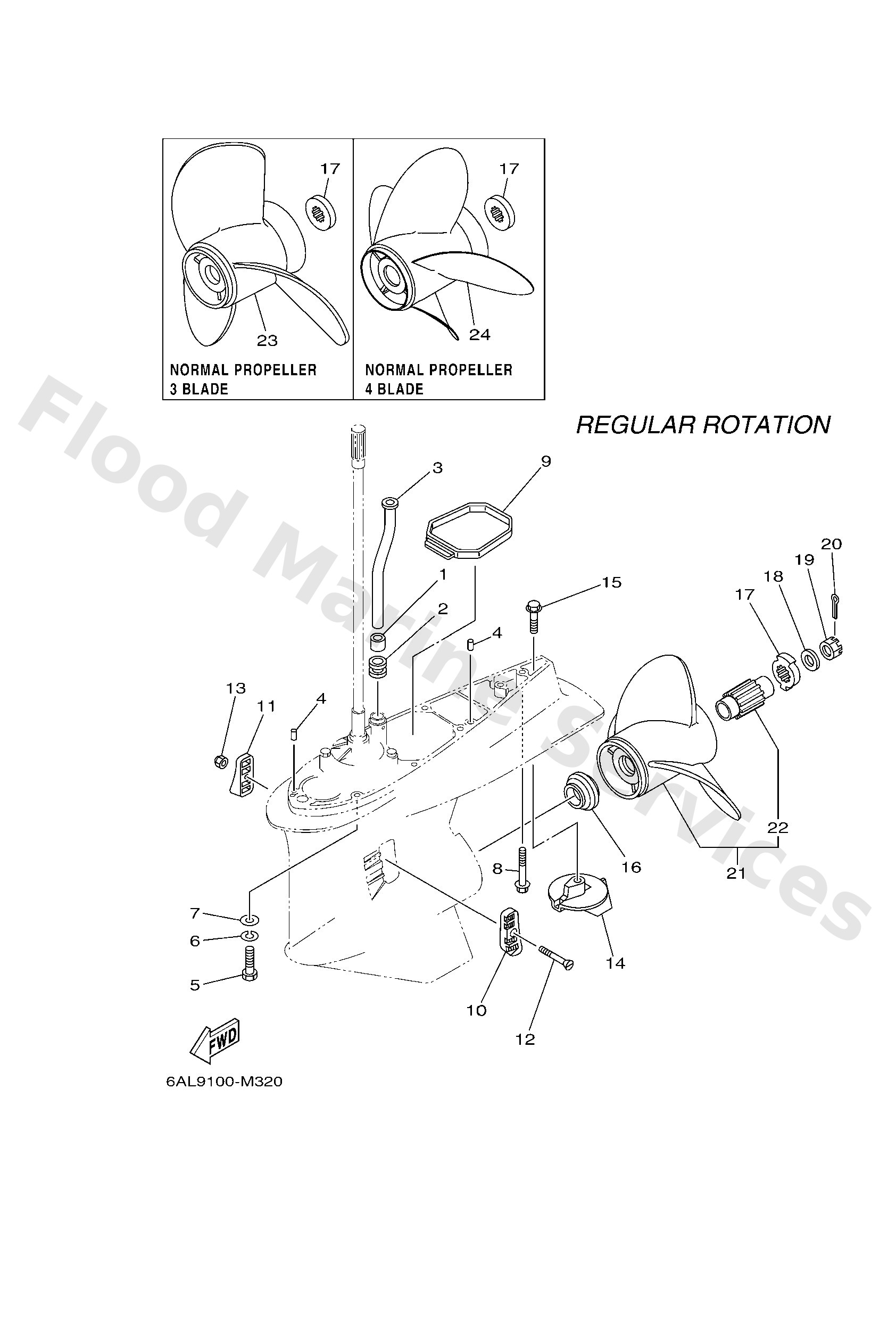

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436500
Damper, water seal 1
Loading…
↗
2
6E54436600
Damper, water seal 2
Loading…
↗
3
6S14436102
X(25.3")
Tube, water 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9709510045
X(25.3")
Bolt(64d)
Loading…
↗
6
9299510100
X(25.3")
Ybs67-10 washer, spring
Loading…
↗
7
9299510600
X(25.3")
Washer, plate
Loading…
↗
8
9011910MA2
X(25.3")
Bolt, with washer
Loading…
↗
9
69J4537500
Damper, seal
Loading…
↗
10
61A4521411
Cover, water inlet 1
Loading…
↗
11
61A4521511
Cover, water inlet 2
Loading…
↗
12
9015205003
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
61A4537100
Anode
Loading…
↗
15
9010510M00
Bolt, hexagon (663)
Loading…
↗
16
69J4598700
Spacer 1
Loading…
↗
17
6CE4599700
FOR SDS PROP.
Spacer 2
Loading…
↗
17
6884599701
AP NORMAL PROP.
Spacer 2
Loading…
↗
18
9299018200
Washer (6e5)
Loading…
↗
19
9017118M04
Nut, castle (6e5)
Loading…
↗
20
9149040030
Pin, cotter (663)
Loading…
↗
21
6CE4593200
UR SDS PROP.
Propeller (3X15"X20"-T)
Loading…
↗
21
6CE4593000
UR SDS PROP.
-
Loading…
↗
21
6CE4597600
UR SDS PROP.
-
Loading…
↗
21
6CE4597800
UR SDS PROP.
-
Loading…
↗
21
6CE4593400
UR SDS PROP.
Propeller (3X15-1/4"X18"-T)
Loading…
↗
21
6CE4597000
UR SDS PROP.
-
Loading…
↗
21
6CE4597200
UR SDS PROP.
-
Loading…
↗
21
6CE4597400
UR SDS PROP.
-
Loading…
↗
22
6CE45C8100
Propeller damper sds gen 1
Loading…
↗
23
6G54597202
AP NORMAL 3 BLADE
Propeller (3x13-3/4 x21 -m)
Loading…
↗
23
6R445978A0
AP NORMAL 3 BLADE
Propeller (3X15-1/4"X17"-M)
Loading…
↗
23
6R445976A0
AP NORMAL 3 BLADE
Propeller (3X14-1/2"X15"-M)
Loading…
↗
23
6R445974A0
AP NORMAL 3 BLADE
Propeller (3X14-1/2"X23"-M)
Loading…
↗
23
6R445972A0
AP NORMAL 3 BLADE
Propeller (3X14-7/8"X21"-M)
Loading…
↗
23
6R445970A1
AP NORMAL 3 BLADE
Propeller (3X15-1/4"X19"-M)
Loading…
↗
23
61A4597800
AP NORMAL 3 BLADE
Propeller (3x15"x17"-t)
Loading…
↗
23
61A4597400
AP NORMAL 3 BLADE
Propeller (3x14-1/2"x19"-t)
Loading…
↗
23
61A4597200
AP NORMAL 3 BLADE
Propeller (3x14-1/2"x21"-t)
Loading…
↗
23
6G54597803
AP NORMAL 3 BLADE
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
23
6G54597403
AP NORMAL 3 BLADE
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
23
6G54597002
AP NORMAL 3 BLADE
Propeller (3x15-1/4 x15 -m)
Loading…
↗
24
6BR45B7400
AP NORMAL 4 BLADE
Propeller (4X15"X23"-T)
Loading…
↗
24
6BR45B7200
AP NORMAL 4 BLADE
Propeller (4X15"X22"-T)
Loading…
↗
24
6BR45B7000
AP NORMAL 4 BLADE
Propeller (4X15"X21"-T)
Loading…
↗
