Yamaha Outboard Parts - LOWER CASING & DRIVE 2 - FL250LET (2018) | Flood Marine

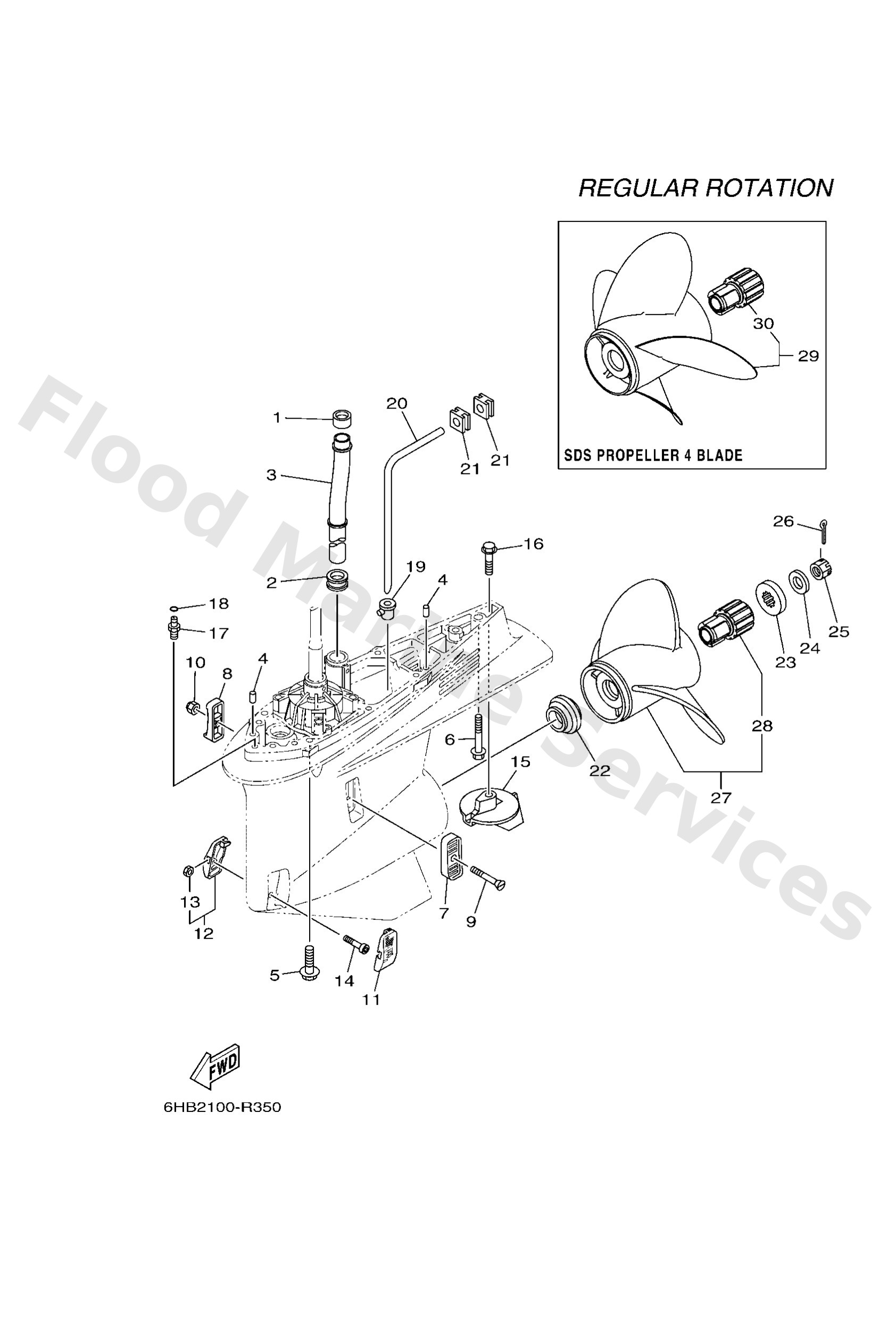

Diagram: LOWER CASING & DRIVE 2

Diagram

Parts List

Reference
Description
Price


1
6AW4436500
Damper, water seal 1
Loading…

↗
2
6AW4436600
Damper, water seal 2
Loading…

↗
3
6CE4436100
Tube, water 1
Loading…

↗
4
9360816M16
Pin, dowel(6t4)
Loading…

↗
5
9011910038
Bolt, with washer
Loading…

↗
6
9757510570
Bolt, hexagon w/w deep recess
Loading…

↗
7
6P24521400
Cover, water inlet 1
Loading…

↗
8
6P24521500
Cover, water inlet 2
Loading…

↗
9
9015205M08
Screw, countersunk
Loading…

↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…

↗
11
6CE4522400
Cover, water inlet 3
Loading…

↗
12
6CE4522500
Cover, water inlet 4
Loading…

↗
14
9011005039
Bolt, hexagon socket head
Loading…

↗
15
61A4537100
Anode
Loading…

↗
16
9010510M00
Bolt, hexagon (663)
Loading…

↗
17
63P4537800
Nipple, hose
Loading…

↗
18
9321007003
O-ring (11m)
Loading…

↗
19
6D04436700
Damper, water seal 3
Loading…

↗
20
6D04436201
Tube, water 2
Loading…

↗
21
6D04436600
Damper, water seal 2
Loading…

↗
22
69J4598700
Spacer 1
Loading…

↗
23
6884599701
Spacer 2
Loading…

↗
24
9299018200
Washer (6e5)
Loading…

↗
25
9017118M04
Nut, castle (6e5)
Loading…

↗
26
9149040030
Pin, cotter (663)
Loading…

↗
27
6CE4593020 UR SDS 3 BLADE
Sws2 w/sds (3x15-3/4 x13-t)
Loading…

↗
27
6CE4597620 UR SDS 3 BLADE
Sws2 w/sds (3x15-3/4 x15-t)
Loading…

↗
27
6CE4593820 UR SDS 3 BLADE
Sws2 w/sds (3x15-1/2 x16 -t)
Loading…

↗
27
6CE4597820 UR SDS 3 BLADE
Sws2 w/sds (3x15-1/2 x 17-t)
Loading…

↗
27
6CE4593420 UR SDS 3 BLADE
Sws2 w/sds (3x15-1/4 x18 -t)
Loading…

↗
27
6CE4597020 UR SDS 3 BLADE
Sws2 w/sds (3x15-1/4 x19-t)
Loading…

↗
27
6CE4593220 UR SDS 3 BLADE
Sws2 w/sds (3x15 x20-t)
Loading…

↗
27
6CE4597220 UR SDS 3 BLADE
Sws2 w/sds (3x15 x21-t)
Loading…

↗
27
6CE4593620 UR SDS 3 BLADE
Sws2 w/sds (3x14-3/4 x22 -t)
Loading…

↗
27
6CE4597420 UR SDS 3 BLADE
Sws2 w/sds (3x14-3/4 x23-t)
Loading…

↗
28
6CE45C8110
Damper rubber, propeller 1
Loading…

↗
29
6CE45B7020 UR SDS 4 BLADE
Sws hs4 sds (ss 4x15"x21"-t)
Loading…

↗
29
6CE45B7220 UR SDS 4 BLADE
Sws hs4 sds (ss 4x15"x22"-t)
Loading…

↗
29
6CE45B7420 UR SDS 4 BLADE
Sws hs4 sds (ss 4x15"x23"-t)
Loading…

↗
