FL300BET (2012)
LOWER CASING & DRIVE 2

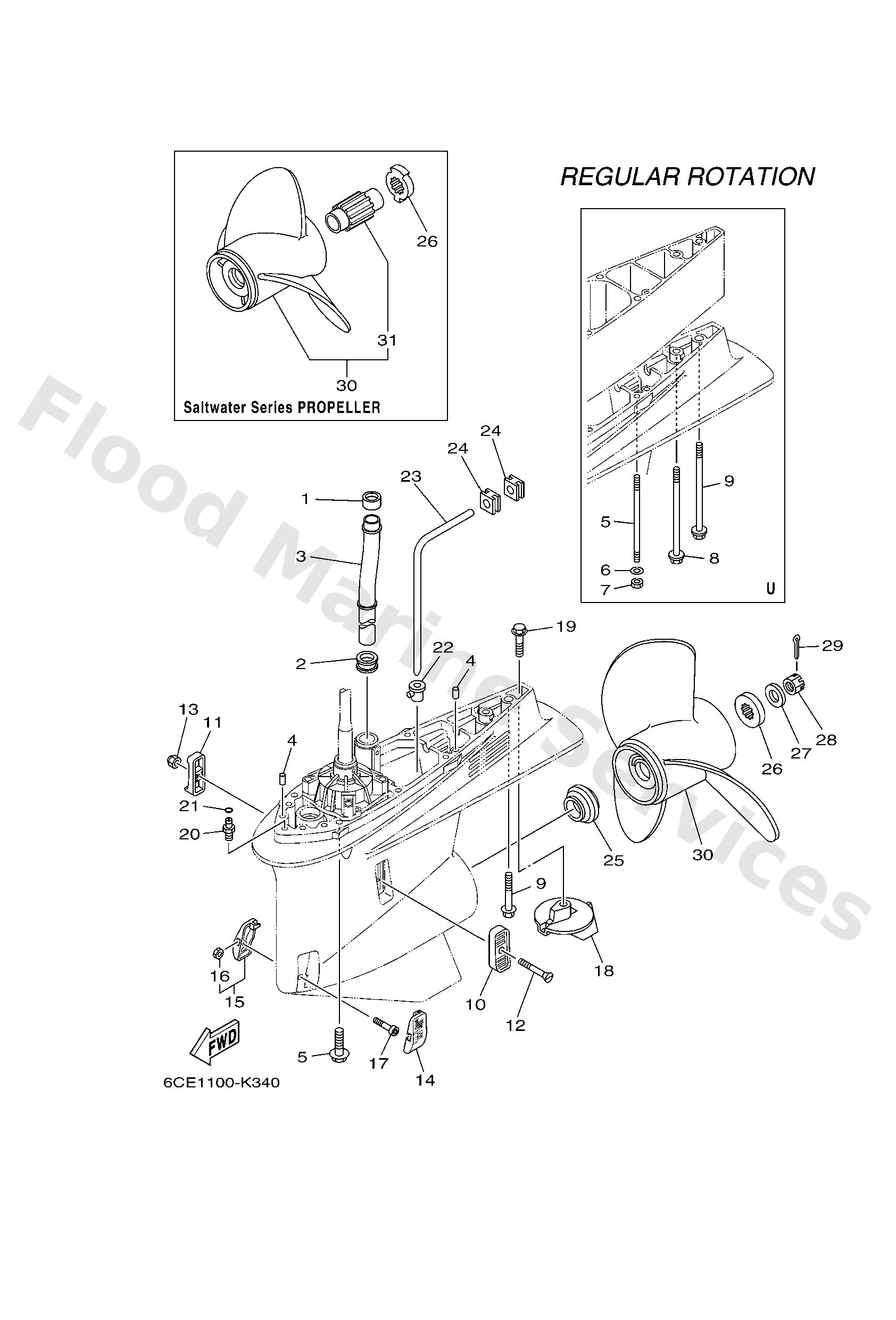

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6AW4436500
Damper, water seal 1
Loading…
↗
2
6AW4436600
Damper, water seal 2
Loading…
↗
3
6CE4436110
U(30.3")
Tube, water 1
Loading…
↗
3
6CE4436100
X(25.3")
Tube, water 1
Loading…
↗
4
9360816M16
Pin, dowel(6t4)
Loading…
↗
5
9011910038
X(25.3")
Bolt, with washer
Loading…
↗
5
9011610041
U(30.3")
Bolt, stud
Loading…
↗
6
9020110048
U(30.3")
Washer, plate
Loading…
↗
7
9017010009
U(30.3")
Nut
Loading…
↗
8
9011910009
U(30.3")
Bolt, with washer
Loading…
↗
9
9757510570
X(25.3")
Bolt, hexagon w/w deep recess
Loading…
↗
9
9011910008
U(30.3")
Bolt, with washer
Loading…
↗
10
6P24521400
Cover, water inlet 1
Loading…
↗
11
6P24521500
Cover, water inlet 2
Loading…
↗
12
9015205M08
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
6CE4522400
Cover, water inlet 3
Loading…
↗
15
6CE4522500
Cover, water inlet 4
Loading…
↗
17
9011005039
Bolt, hexagon socket head
Loading…
↗
18
61A4537100
Anode
Loading…
↗
19
9010510M00
Bolt, hexagon (663)
Loading…
↗
20
63P4537800
Nipple, hose
Loading…
↗
21
9321007003
O-ring (11m)
Loading…
↗
22
6D04436700
Damper, water seal 3
Loading…
↗
23
6D04436201
Tube, water 2
Loading…
↗
24
6D04436600
Damper, water seal 2
Loading…
↗
25
69J4598700
Spacer 1
Loading…
↗
26
6884599701
UR FOR 6D0 PROP.
Spacer 2
Loading…
↗
26
6CE4599700
UR FOR 6CE PROP.
Spacer 2
Loading…
↗
27
9299018200
Washer (6e5)
Loading…
↗
28
9017118M04
Nut, castle (6e5)
Loading…
↗
29
9149040030
Pin, cotter (663)
Loading…
↗
30
6D04597000
UR SWS PROP.
Propeller (3X15-1/4"X19"-T)
Loading…
↗
30
6CE45B7400
UR SWS SH4 PROP.
Propeller (4X15"X23"-T)
Loading…
↗
30
6CE45B7200
UR SWS SH4 PROP.
Propeller (4x15 x22 -t)
Loading…
↗
30
6CE45B7000
UR SWS SH4 PROP.
Sws hs4 sds (ss 4x15"x21"-t)
Loading…
↗
30
6CE4597800
UR SWS PROP.
-
Loading…
↗
30
6CE4597600
UR SWS PROP.
-
Loading…
↗
30
6CE4597400
UR SWS PROP.
-
Loading…
↗
30
6CE4597200
UR SWS PROP.
-
Loading…
↗
30
6CE4597000
UR SWS PROP.
-
Loading…
↗
30
6CE4593000
UR SWS PROP.
-
Loading…
↗
31
6CE45C8100
FOR 6CE PROP.
Propeller damper sds gen 1
Loading…
↗
