FT25BET (2008)
LOWER CASING & DRIVE 2

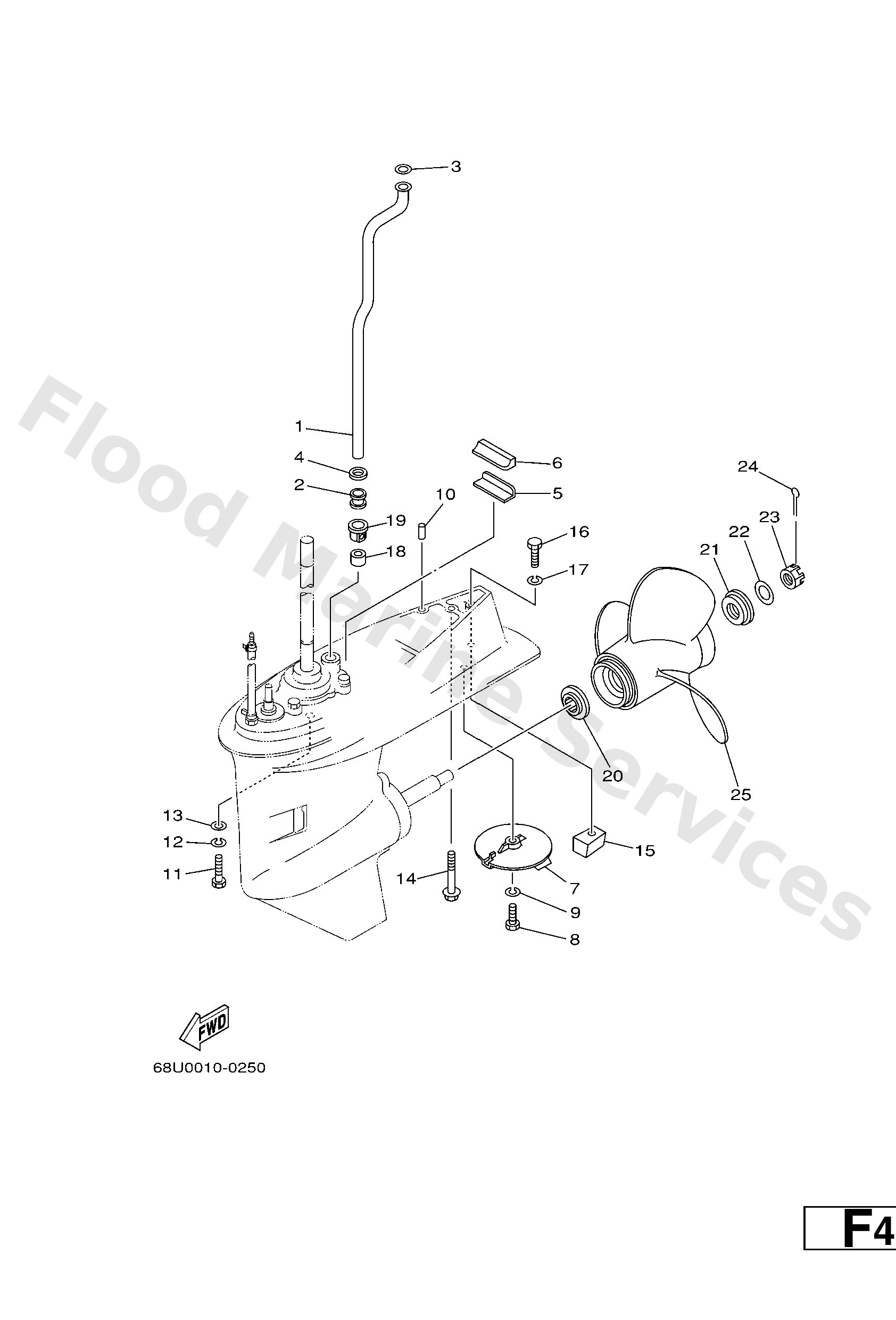

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
62Y4436100
L(20.8")
Tube, water
Loading…
↗
2
6634436700
Damper, water seal 3
Loading…
↗
3
9020212060
Washer, plate(663)
Loading…
↗
4
9043012072
Gasket
Loading…
↗
5
663453760094
Guide, seal damper
Loading…
↗
6
63D4537500
Damper, seal
Loading…
↗
7
67C4537100
Tab-trim
Loading…
↗
8
9709508025
Bolt (62g)
Loading…
↗
9
9299508100
Ybs67-8 washer, spring
Loading…
↗
10
9360612019
Pin, dowel (614)
Loading…
↗
11
9707510040
L(20.8")
Bolt, hexagon deep recess
Loading…
↗
12
9299510100
L(20.8")
Ybs67-10 washer, spring
Loading…
↗
13
9299510600
L(20.8")
Washer, plate
Loading…
↗
14
9011908M44
L(20.8")
Bolt, with washer
Loading…
↗
15
67C4525100
Anode
Loading…
↗
16
9709508035
Bolt(70w)
Loading…
↗
18
6634436600
Damper, water seal 2
Loading…
↗
19
63D4431200
Cover, water pump housing
Loading…
↗
20
6634598702
Spacer
Loading…
↗
21
68U4599700
Spacer 2
Loading…
↗
22
9299016200
958-58204-00 washer,plain
Loading…
↗
23
9017116011
Nut, castle (663)
Loading…
↗
24
9149030025
Pin cotter
Loading…
↗
25
68U4594100EL
Propeller (3x12-1/4 x9 -g)
Loading…
↗
