FT25FET (2019)
LOWER CASING & DRIVE 2

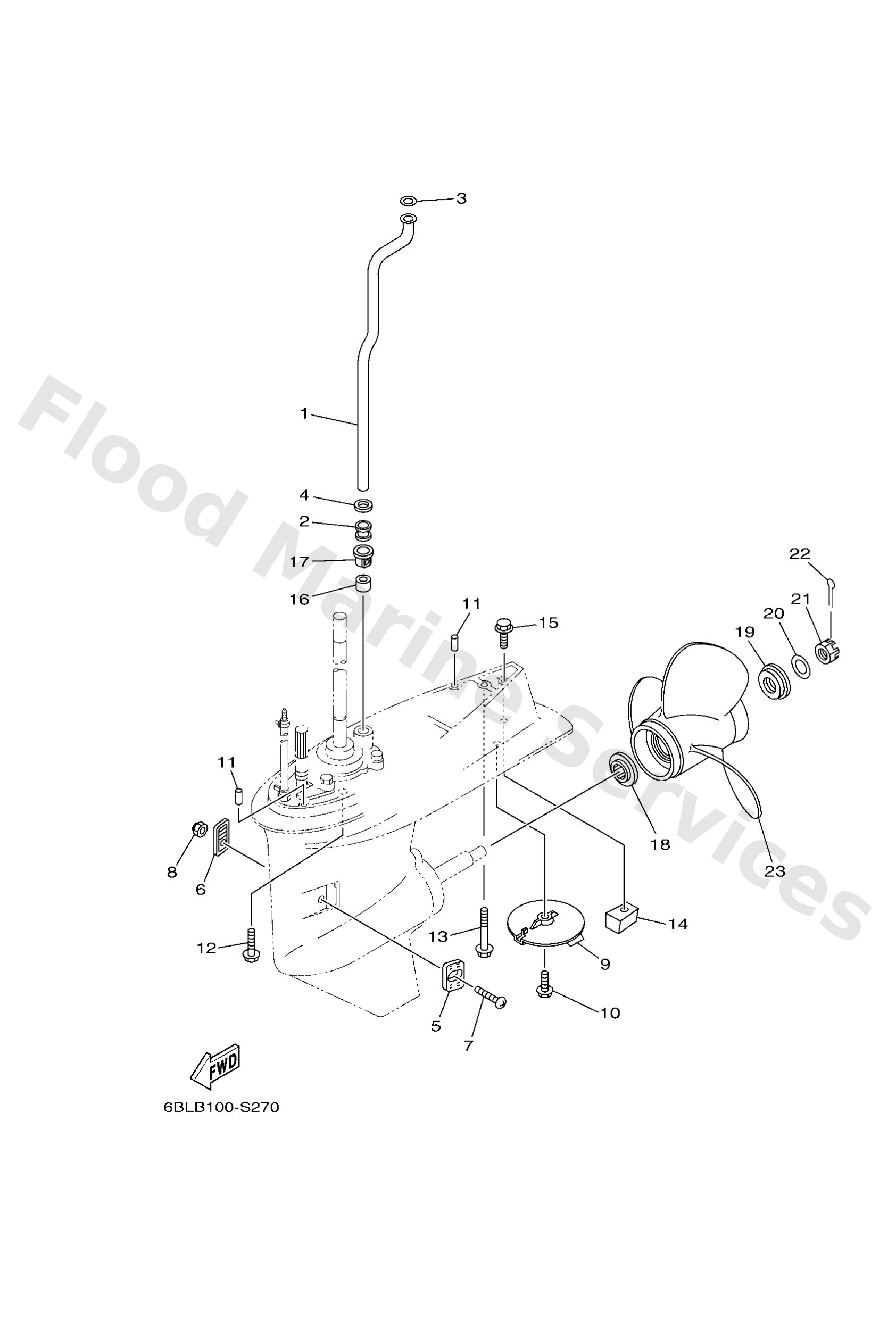

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
62Y4436100
L(21.1")
Tube, water
Loading…
↗
2
6634436700
Damper, water seal 3
Loading…
↗
3
9020212060
Washer, plate(663)
Loading…
↗
4
9043012072
Gasket
Loading…
↗
5
63D4521400
Cover, water inlet
Loading…
↗
6
63D4521500
Cover, water inlet
Loading…
↗
7
9015205010
Screw, countersunk
Loading…
↗
8
9538005600
Nut, hexagon (663)
Loading…
↗
9
67C4537100
Tab-trim
Loading…
↗
10
97E9508525
Bolt, hexagon w/w deep recess
Loading…
↗
11
9360612019
Pin, dowel (614)
Loading…
↗
12
9011910068
L(21.1")
Bolt, with washer
Loading…
↗
13
97E7508565
L(21.1")
Bolt, hexagon w/w deep recess
Loading…
↗
14
67C4525100
Anode
Loading…
↗
15
97E9508535
Bolt, hexagon w/w deep recess
Loading…
↗
16
6634436600
Damper, water seal 2
Loading…
↗
17
63D4431200
Cover, water pump housing
Loading…
↗
18
6634598702
Spacer
Loading…
↗
19
68U4599700
Spacer 2
Loading…
↗
20
9299016200
958-58204-00 washer,plain
Loading…
↗
21
9017116011
Nut, castle (663)
Loading…
↗
22
9149030025
Pin cotter
Loading…
↗
23
68U4594100
Propeller (3x12-1/4 x9 -g)
Loading…
↗
