Yamaha Outboard Parts - LOWER CASING & DRIVE 2 - FT60GET (2022) | Flood Marine
New Search
Parts
New Outboards
Home
FT60GET (2022)
LOWER CASING & DRIVE 2

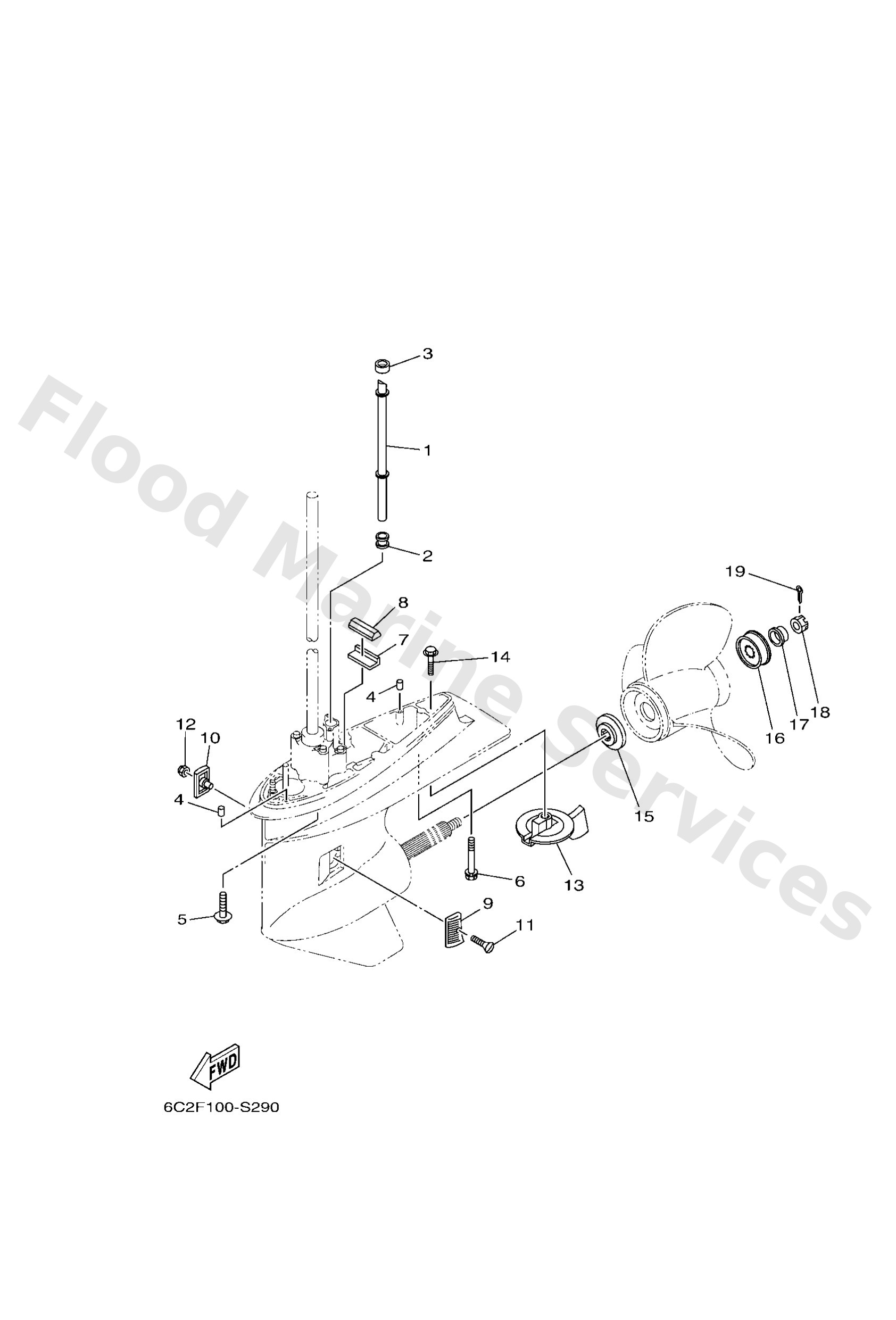

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6C54436110
X(25.4")
Tube, water 1
Loading…
↗
1
6C54436100
L(20.9")
Tube, water 1
Loading…
↗
2
6634436701
Damper, water seal 3
Loading…
↗
3
6634436601
Damper, water seal 2
Loading…
↗
4
9360612019
Pin, dowel (614)
Loading…
↗
5
9011910068
L(20.9")
Bolt, with washer
Loading…
↗
6
9011908195
L(20.9")
Bolt, with washer
Loading…
↗
7
6634537600
Guide, seal damper
Loading…
↗
8
6884537500
Damper, seal 2
Loading…
↗
9
6H14521400
Cover, water inlet
Loading…
↗
10
6H14521500
Cover, water inlet
Loading…
↗
11
9015105M00
Screw, countersunk(692)
Loading…
↗
12
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
13
67F4537100
Tab-trim
Loading…
↗
14
9010510M67
Bolt, hexagon (663)
Loading…
↗
15
6884598701
Spacer
Loading…
↗
16
67F4599700
Spacer 2
Loading…
↗
17
9038925M00
Bush
Loading…
↗
18
9017116011
Nut, castle (663)
Loading…
↗
19
9149030025
Pin cotter
Loading…
↗
