FT9.9DMH (2006)
LOWER CASING & DRIVE 2

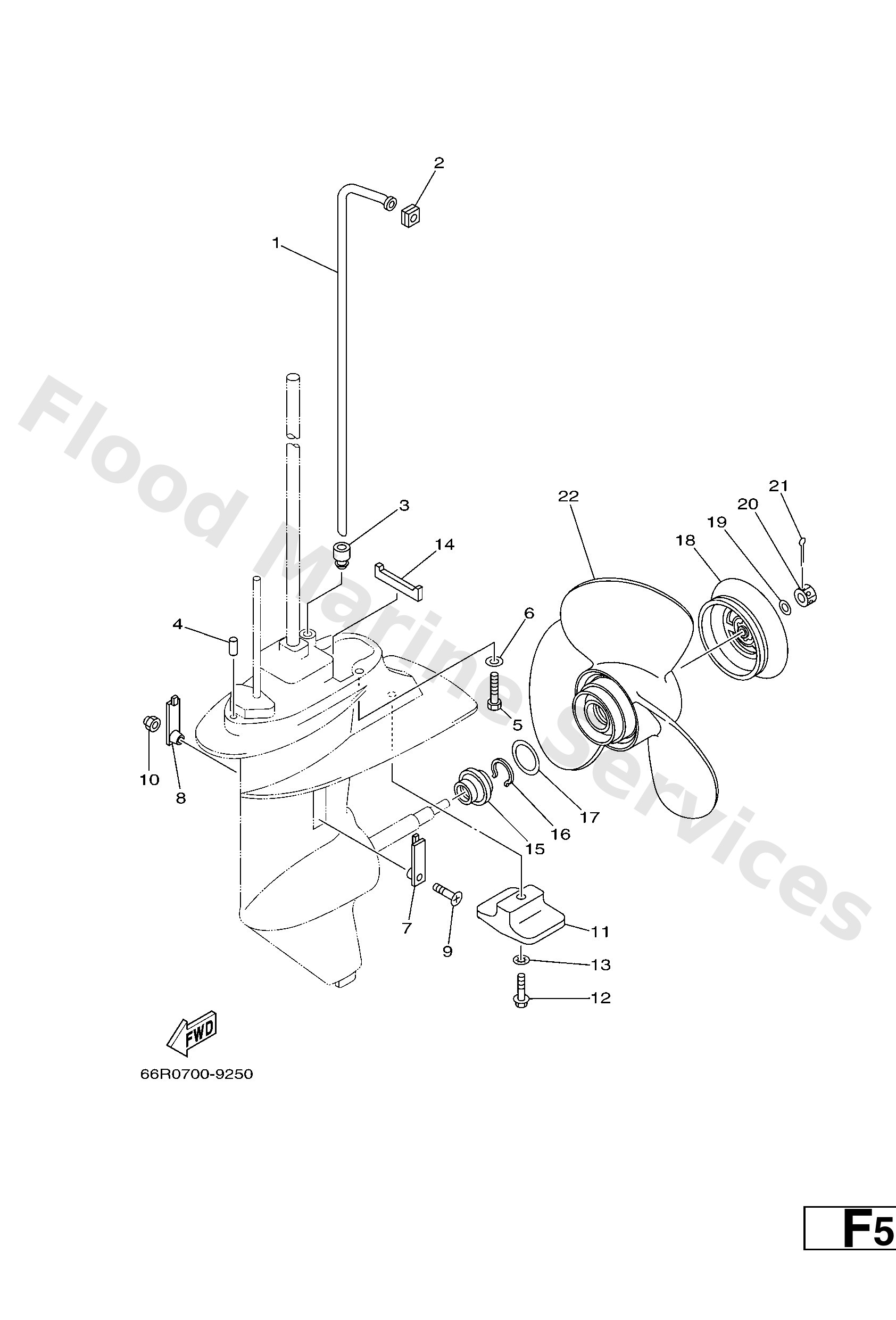

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
66R4436120
X (25.0")
-
Loading…
↗
1
66M4436110
L (22.3")
Tube, water
Loading…
↗
2
63V4436510
Damper, water seal 1
Loading…
↗
3
63V4436800
Rubber, water seal 4
Loading…
↗
4
9360412M07
Pin, dowel (688)
Loading…
↗
5
9707508035
L (22.3")
Bolt(70w)
Loading…
↗
6
9299508600
L (22.3")
Washer, plain (663)
Loading…
↗
7
6G14521400
Cover, water inlet
Loading…
↗
8
63V4521500
Cover, water inlet
Loading…
↗
9
9015205M04
Screw, countersunk
Loading…
↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
11
61N4525101
Anode
Loading…
↗
12
9589506030
Bolt, flange deep recess
Loading…
↗
13
9299006300
Washer, tooth
Loading…
↗
14
63V4537500
Damper, seal
Loading…
↗
15
6G84598702
Spacer
Loading…
↗
16
9345010M04
Circlip(6g8)
Loading…
↗
17
9020131MA3
Washer, plate (6g8)
Loading…
↗
18
6G84598600
Ring, deflector
Loading…
↗
19
9020110M02
Washer, plate(6g9)
Loading…
↗
20
9017110M07
Nut, castle(6g8)
Loading…
↗
21
9149030025
Pin cotter
Loading…
↗
22
6G84594100
UR
Propeller (pa 3x11-3/4"x11"-r)
Loading…
↗
22
6G84594300
UR
Propeller (pa 3x11-3/4"x9-1/4"
Loading…
↗
22
6G84594500
UR
Propeller (pa 3x11-3/4"x12-1/4
Loading…
↗
22
6G84594700EL
UR ALUMINIUM
Propeller (3x11-3/4"x9-1/4"-r)
Loading…
↗
