FT9.9LE (2014)
LOWER CASING & DRIVE 2

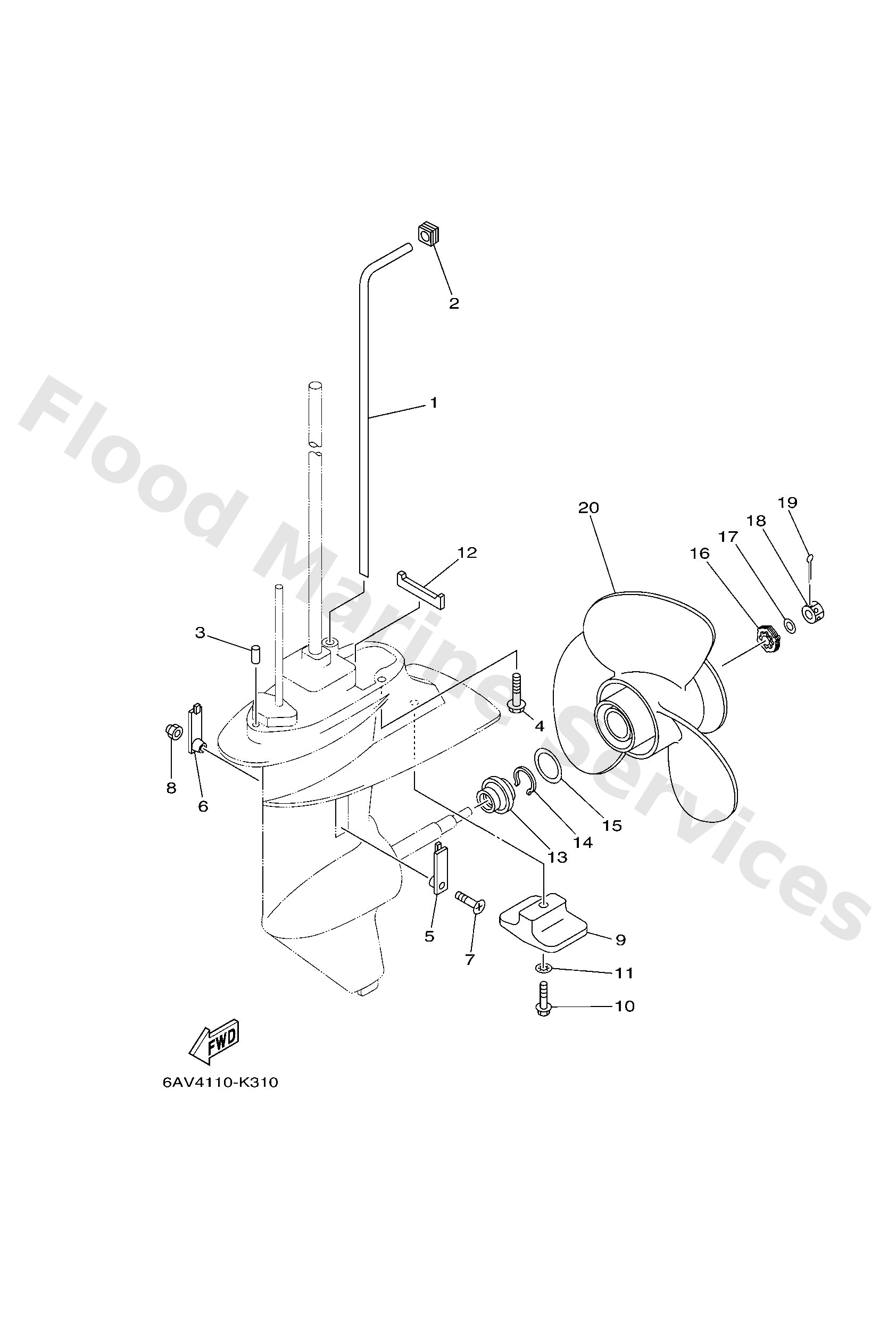

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
69G4436120
X(24.4")
Tube, water 1
Loading…
↗
1
68T4436110
L(21.7")
Tube, water 1
Loading…
↗
2
63V4436510
Damper, water seal 1
Loading…
↗
3
9360412M07
Pin, dowel (688)
Loading…
↗
4
9757508535
L(21.7")
Bolt(70w)
Loading…
↗
5
6G14521400
Cover, water inlet
Loading…
↗
6
63V4521500
Cover, water inlet
Loading…
↗
7
9015205011
Screw, countersunk
Loading…
↗
8
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
9
61N4525101
Anode
Loading…
↗
10
9589506030
Bolt, flange deep recess
Loading…
↗
11
9299006300
Washer, tooth
Loading…
↗
12
63V4537500
Damper, seal
Loading…
↗
13
6G84598702
Spacer
Loading…
↗
14
9345010M04
Circlip(6g8)
Loading…
↗
15
9020131MA3
Washer, plate (6g8)
Loading…
↗
16
6G84599700
Spacer
Loading…
↗
17
9020110M02
Washer, plate(6g9)
Loading…
↗
18
9017110M07
Nut, castle(6g8)
Loading…
↗
19
9149030025
Pin cotter
Loading…
↗
20
69G4594300
Propeller (3x11-3/4 x7-r)
Loading…
↗
