LF150B (2021)
LOWER CASING & DRIVE 2

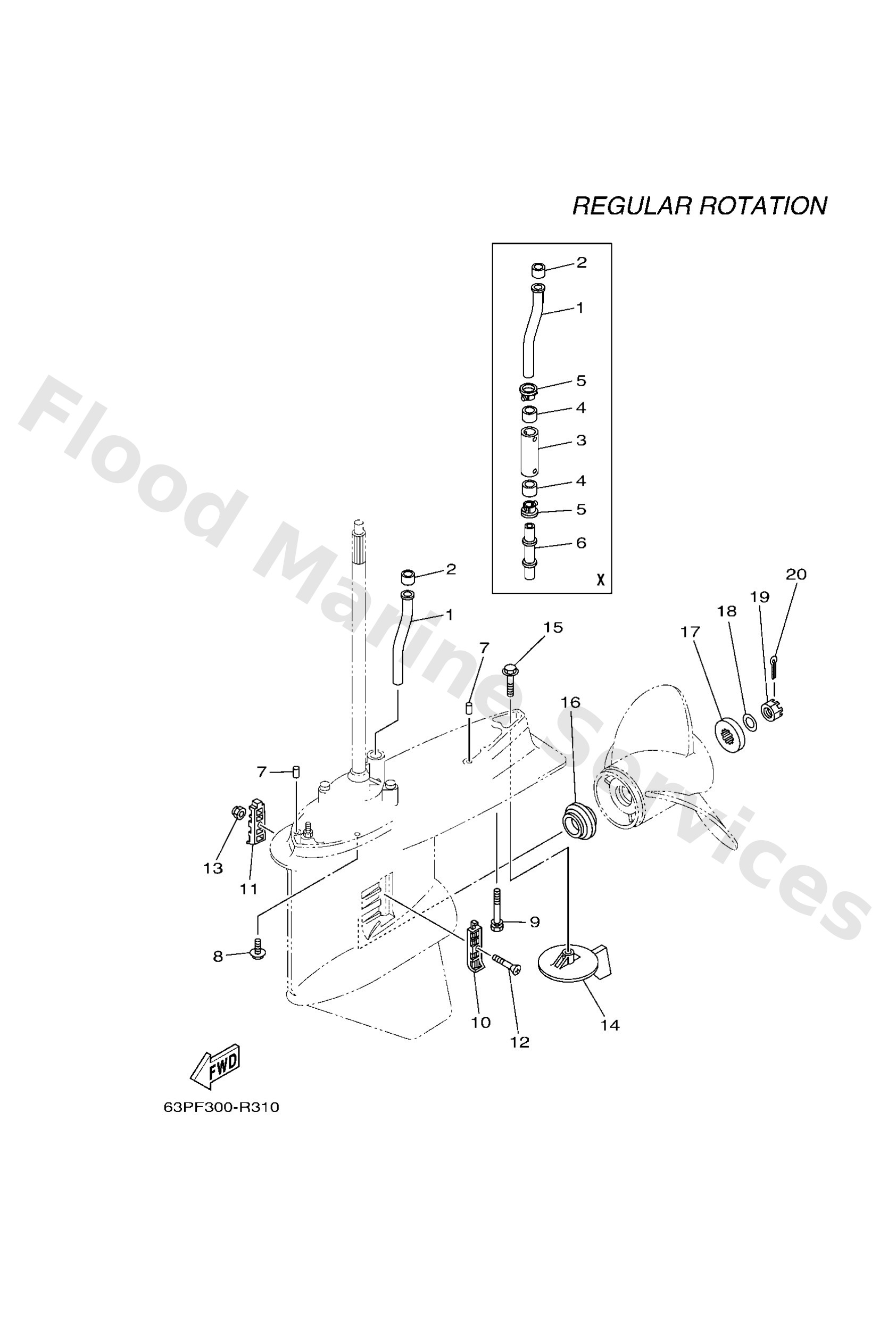

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
63P4436100
Tube, water
Loading…
↗
4
6E54436501
X(25.3")
Damper, water seal 1
Loading…
↗
3
63P4436200
X(25.3")
Tube, water 2
Loading…
↗
5
6E54431200
X(25.3")
Cover, water pump housing
Loading…
↗
6
63P4436300
X(25.3")
Tube, water 3
Loading…
↗
7
9360816M16
Pin, dowel(6t4)
Loading…
↗
8
97E9510645
Bolt, hexagon w/w deep recess
Loading…
↗
9
9011910072
L(20.3")
Bolt, with washer
Loading…
↗
9
9011910008
X(25.3")
Bolt, with washer
Loading…
↗
10
6J94521400
Cover, water inlet
Loading…
↗
11
6J94521500
Cover, water inlet
Loading…
↗
12
9015205M08
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
6J94537101
Tab-trim
Loading…
↗
15
9010510M00
Bolt, hexagon (663)
Loading…
↗
16
63P4598700
Spacer 1
Loading…
↗
17
6884599701
Spacer 2
Loading…
↗
18
9299018200
Washer (6e5)
Loading…
↗
19
9017118M04
Nut, castle (6e5)
Loading…
↗
20
9149040030
Pin, cotter (663)
Loading…
↗
