LF200CB (2024)
LOWER CASING & DRIVE 2

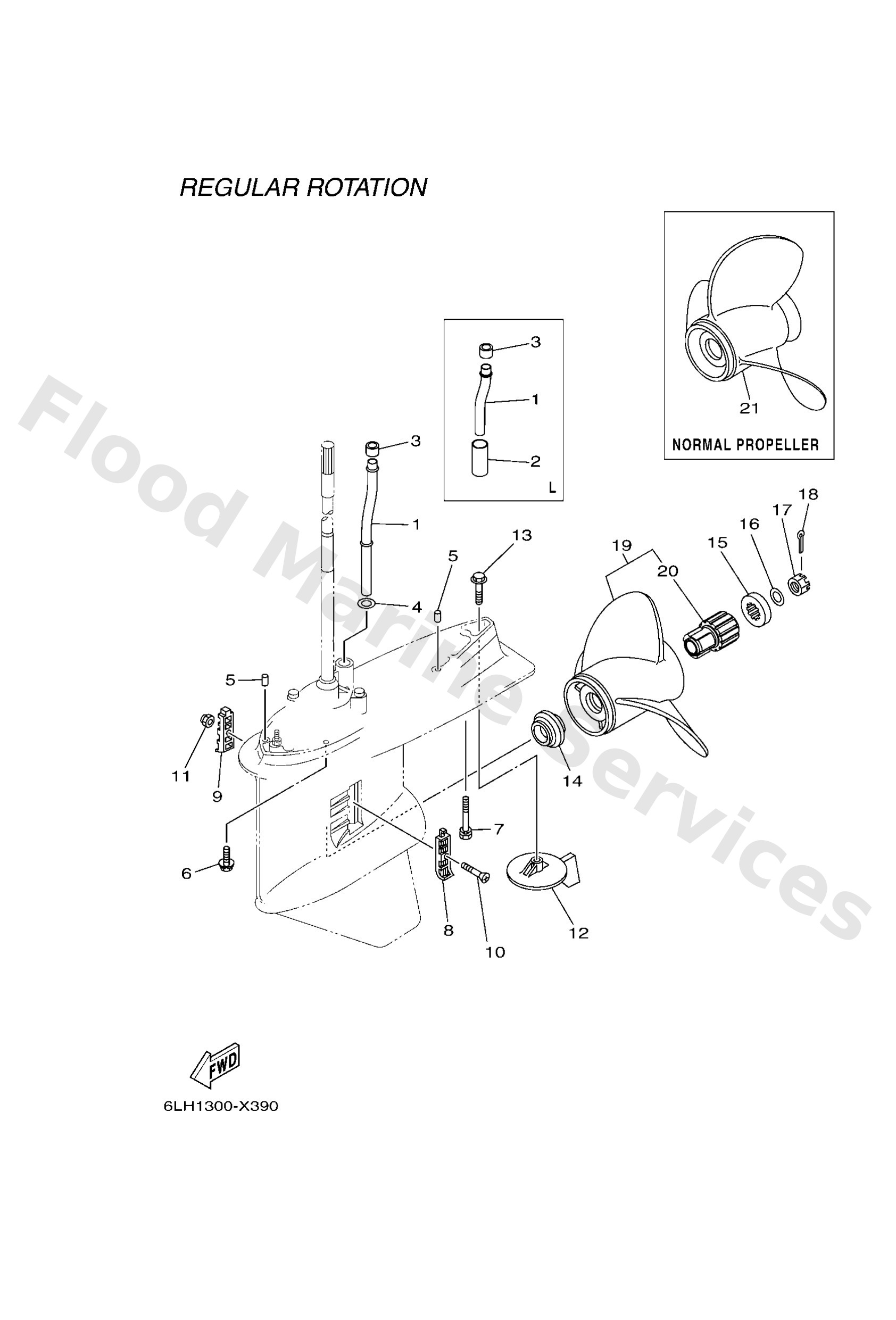

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6DA4436110
L(20.3")
Tube, water 1
Loading…
↗
1
6DA4436100
X(25.2")
Tube, water 1
Loading…
↗
2
9044523002
L(20.3")
Hose
Loading…
↗
3
6E54436501
Damper, water seal 1
Loading…
↗
4
9020216061
X(25.2")
Washer, plate(663)
Loading…
↗
5
9360816M16
Pin, dowel(6t4)
Loading…
↗
6
97E9510645
Bolt, hexagon w/w deep recess
Loading…
↗
7
9011910072
Bolt, with washer
Loading…
↗
8
6J94521400
Cover, water inlet
Loading…
↗
9
6J94521500
Cover, water inlet
Loading…
↗
10
9015205M08
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
6J94537101
Tab-trim
Loading…
↗
13
9010510M00
Bolt, hexagon (663)
Loading…
↗
14
63P4598700
Spacer 1
Loading…
↗
15
6884599701
Spacer 2
Loading…
↗
16
9299018200
Washer (6e5)
Loading…
↗
17
9017118M04
Nut, castle (6e5)
Loading…
↗
18
9149040030
Pin, cotter (663)
Loading…
↗
19
68F4597020
UR SDS PROP.
Reliance sds (3x14-1/2"x15" m)
Loading…
↗
19
68F4593020
UR SDS PROP.
Reliance sds (3x14-1/2"x14"-m)
Loading…
↗
19
68F4593220
UR SDS PROP.
Reliance sds (3x14-1/2"x13"-m)
Loading…
↗
19
60H4597800
UR SDS PROP.
Propeller (3x14-1/4 x22 -m)
Loading…
↗
19
60H4597400
UR SDS PROP.
Propeller (3x14-1/4 x18 -m)
Loading…
↗
19
60H4597200
UR SDS PROP.
Propeller (3x14-1/4 x16 -m)
Loading…
↗
19
60H4597000
UR SDS PROP.
Propeller (3x14-1/4 x14 -m)
Loading…
↗
19
60H4597600
UR SDS PROP.
Propeller (3x14-1/4 x20 -m)
Loading…
↗
19
6CE4597420
UR SDS PROP.
Sws2 w/sds (3x14-3/4 x23-t)
Loading…
↗
19
6CE4593620
UR SDS PROP.
Sws2 w/sds (3x14-3/4 x22 -t)
Loading…
↗
19
6CE4597220
UR SDS PROP.
Sws2 w/sds (3x15 x21-t)
Loading…
↗
19
6CE4593220
UR SDS PROP.
Sws2 w/sds (3x15 x20-t)
Loading…
↗
19
6CE4597020
UR SDS PROP.
Sws2 w/sds (3x15-1/4 x19-t)
Loading…
↗
19
68F4597620
UR SDS PROP.
Reliance sds (3x13-3/4"x21"-m)
Loading…
↗
19
68F4597420
UR SDS PROP.
Reliance sds (3x13-3/4"x19"-m)
Loading…
↗
19
68F4597820
UR SDS PROP.
Reliance sds (3x14-1/4"x18"-m)
Loading…
↗
19
68F4597220
UR SDS PROP.
Reliance sds (3x14-1/4"x17"-m)
Loading…
↗
19
6CE4593420
UR SDS PROP.
Sws2 w/sds (3x15-1/4 x18 -t)
Loading…
↗
20
6CE45C8110
Damper rubber, propeller 1
Loading…
↗
21
6G54597601
UR NORMAL PROP.
Propeller (3x13-3/8"x23"-m)
Loading…
↗
21
6G54594900
UR NORMAL PROP.
Propeller (3x13-1/2"x23"-m)
Loading…
↗
21
6G54594301
UR NORMAL PROP.
Propeller (3x13-3/4"x21"-m)
Loading…
↗
21
6G54597202
UR NORMAL PROP.
Propeller (3x13-3/4 x21 -m)
Loading…
↗
21
6G54597403
UR NORMAL PROP.
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
21
6G54594501
UR NORMAL PROP.
Propeller (3x14"x19"-m)
Loading…
↗
21
6G54597803
UR NORMAL PROP.
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
21
6G54594701
UR NORMAL PROP.
Propeller (3x14-1/2"x17"-m)
Loading…
↗
21
6G54595200
UR NORMAL PROP.
Propeller (3x14-5/8"x16"-m)
Loading…
↗
21
6G54597002
UR NORMAL PROP.
Propeller (3x15-1/4 x15 -m)
Loading…
↗
21
6G54594100
UR NORMAL PROP.
Propeller (3x15-1/4x15-m)
Loading…
↗
