LZ300AETO (2004)
LOWER CASING & DRIVE 2

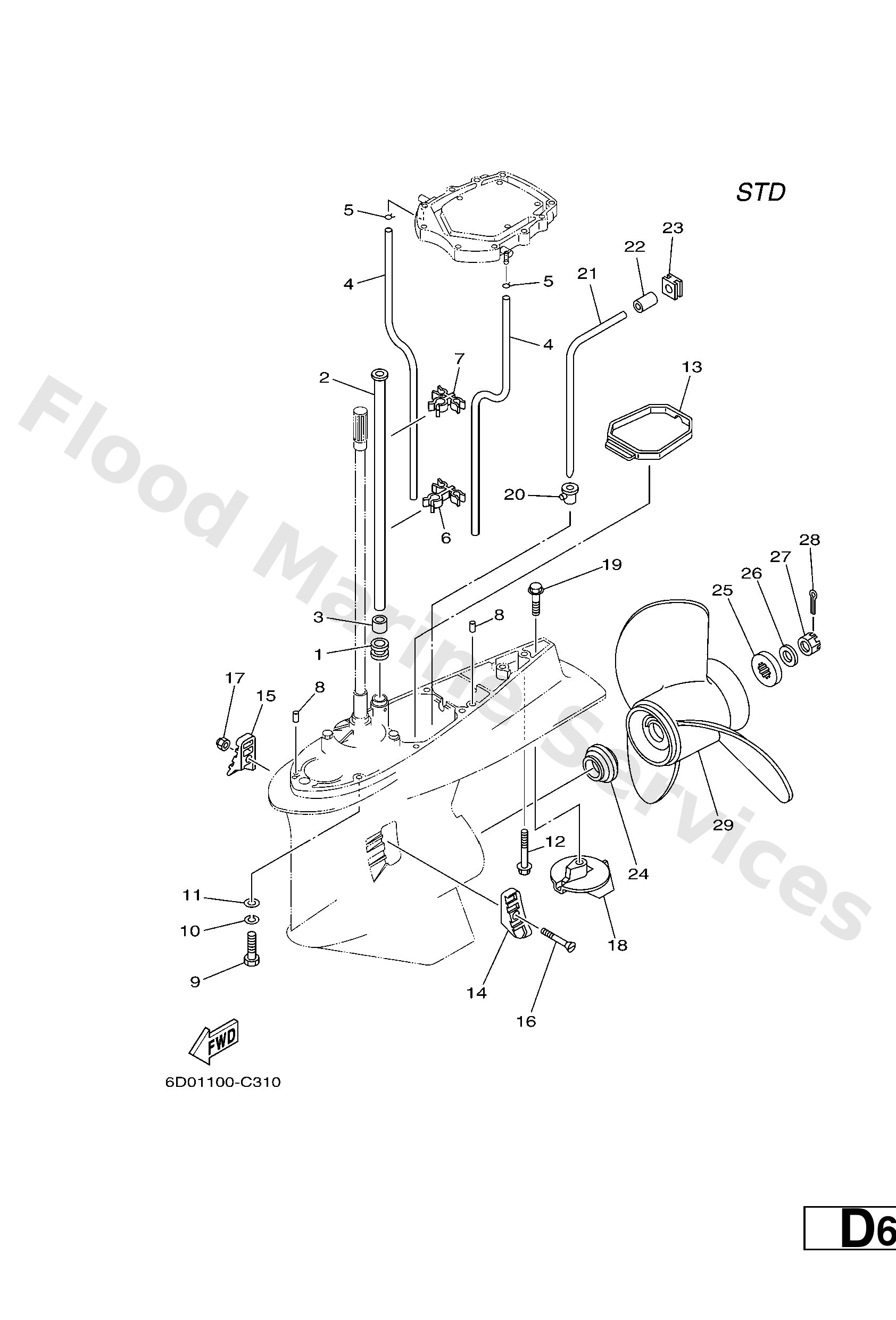

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
61A4436120
X
Tube, water
Loading…
↗
2
61A4436130
U
Tube, water
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9044509111
X
Hose (l1500)
Loading…
↗
4
9044509024
U
Hose (l485)
Loading…
↗
5
9046708M10
Clip, pipe 6162435600
Loading…
↗
6
9046415006
Clamp
Loading…
↗
7
9046415005
Clamp
Loading…
↗
8
9360812M05
Pin, dowel b (6e5)
Loading…
↗
9
9709510045
Bolt(64d)
Loading…
↗
10
9299510100
Ybs67-10 washer, spring
Loading…
↗
11
9299510600
Washer, plate
Loading…
↗
12
9011910MA2
Bolt, with washer
Loading…
↗
13
6D04537500
Damper, seal
Loading…
↗
14
61A4521410
Cover, water inlet 1
Loading…
↗
15
61A4521510
Cover, water inlet 2
Loading…
↗
16
9015205003
Screw, countersunk
Loading…
↗
17
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
18
69L4537100
Tab-trim
Loading…
↗
19
9010510M00
Bolt, hexagon (663)
Loading…
↗
20
6D04436700
Damper, water seal 3
Loading…
↗
21
6D04436200
Tube, water 2
Loading…
↗
22
6D04436500
Damper, water seal 1
Loading…
↗
23
6D04436600
Damper, water seal 2
Loading…
↗
24
69J4598700
Spacer 1
Loading…
↗
25
6884599701
Spacer 2
Loading…
↗
26
9299018200
Washer (6e5)
Loading…
↗
27
9017118M04
Nut, castle (6e5)
Loading…
↗
28
9149040030
Pin, cotter (663)
Loading…
↗
29
6R445978A0
UR
-
Loading…
↗
29
6R445976A0
UR
-
Loading…
↗
29
6R445974A0
UR
-
Loading…
↗
29
6R445972A0
UR
-
Loading…
↗
29
6R445970A0
UR
Propeller (3X15–1/4”X19”–M)
Loading…
↗
29
61A459780098
UR
Propeller (3x15"x17"-t)
Loading…
↗
29
61A459740098
UR
Propeller (3x14-1/2"x19"-t)
Loading…
↗
29
61A459720098
UR
Propeller (3x14-1/2"x21"-t)
Loading…
↗
29
6G5459780398
UR
Propeller (3x13-3/4"x17"-m2)
Loading…
↗
29
6G5459740398
UR
Propeller (3x13-3/4"x19"-m2)
Loading…
↗
29
6G5459720298
UR
Propeller (3x13-3/4 x21 -m)
Loading…
↗
29
6G5459700298
UR
Propeller (3x15-1/4 x15 -m)
Loading…
↗
