VF175XB (2025)
LOWER CASING & DRIVE 2

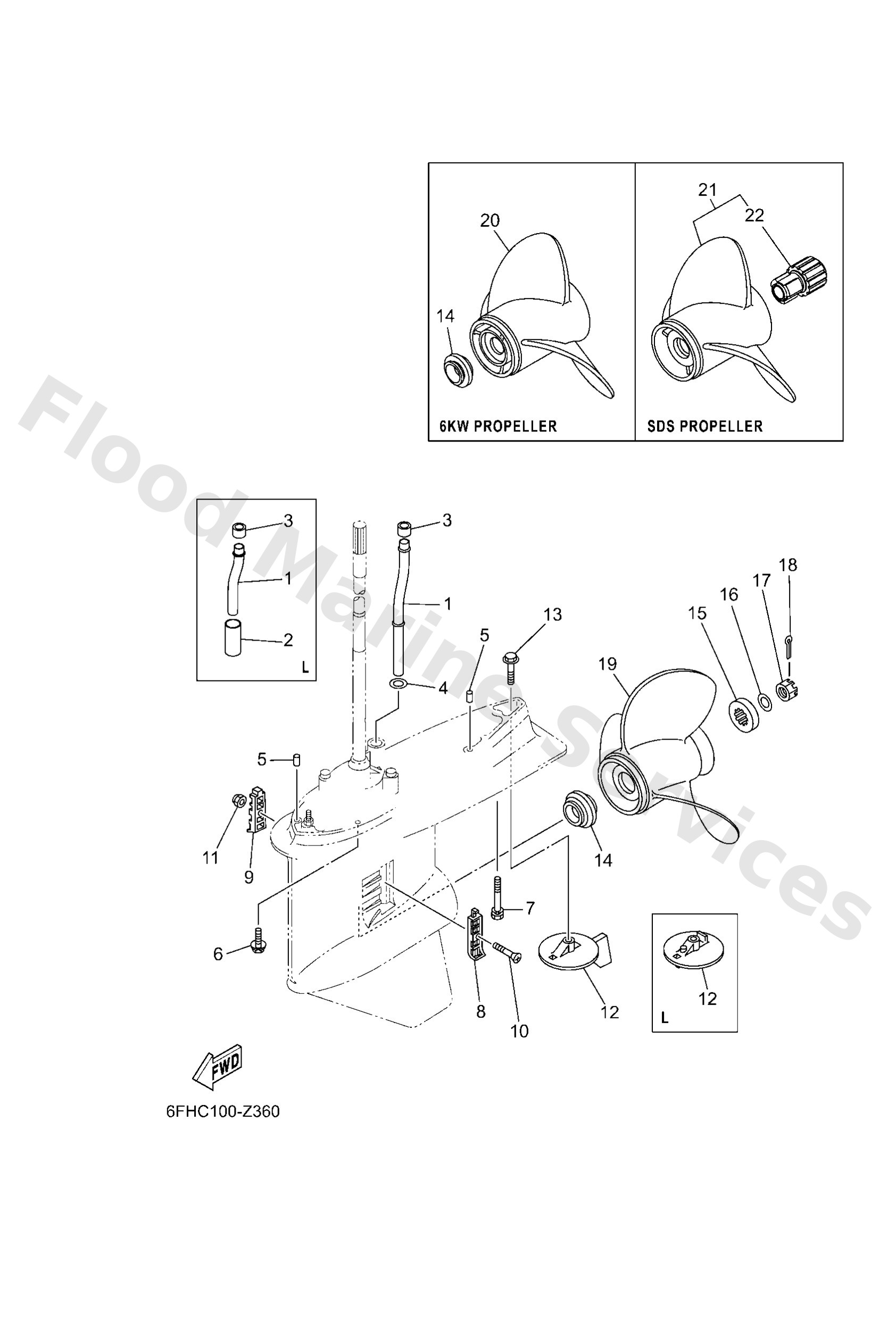

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6DA4436110
L(20.3")
Tube, water 1
Loading…
↗
1
6DA4436100
X(25.3")
Tube, water 1
Loading…
↗
2
9044523002
L(20.3")
Hose
Loading…
↗
3
6E54436501
Damper, water seal 1
Loading…
↗
4
9020216061
X(25.3")
Washer, plate(663)
Loading…
↗
5
9360816M16
Pin, dowel(6t4)
Loading…
↗
6
97E9510645
Bolt, hexagon w/w deep recess
Loading…
↗
7
9011910072
Bolt, with washer
Loading…
↗
8
6J94521400
Cover, water inlet
Loading…
↗
9
6J94521500
Cover, water inlet
Loading…
↗
10
9015205M08
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
6J94537101
X(25.3")
Tab-trim
Loading…
↗
12
6CE4537300
L(20.3")
Anode
Loading…
↗
13
9010510M00
Bolt, hexagon (663)
Loading…
↗
14
6E54598701
X(25.3")
Spacer 1
Loading…
↗
14
6KW4598700
FOR 6KW PROP.
Spacer 1
Loading…
↗
15
6884599701
Spacer 2
Loading…
↗
16
9299018200
Washer (6e5)
Loading…
↗
17
9017118M04
Nut, castle (6e5)
Loading…
↗
18
9149040030
Pin, cotter (663)
Loading…
↗
19
66K45976B0
UR
Propeller (Ss 3X14-1/2"X21"-M)
Loading…
↗
19
66K45974B0
UR
Propeller (3X14-1/2"X23"-M2)
Loading…
↗
19
66K45972B0
UR
Propeller (3X14-1/2"X25"-M2)
Loading…
↗
19
66K45970B0
UR
Propeller (3X14-1/2"X27"-M1)
Loading…
↗
20
6KW4593200
UR
Propeller (3X15-1/8"X22"-T3)
Loading…
↗
20
6KW4597400
UR
Propeller (3X15-1/8"X23"-T3)
Loading…
↗
20
6KW4597200
UR
Propeller (3X15-1/8"X25"-T3)
Loading…
↗
20
6KW4597000
UR
Propeller (ss 3x15-1/8 x27 -t3
Loading…
↗
20
6KW4597800
UR
Propeller (3X15-1/8"X26"-T3)
Loading…
↗
20
6KW4593000
UR
Propeller (3X15-1/8"X24"-T3)
Loading…
↗
21
68F4597020
UR SDS PROP.
Reliance sds (3x14-1/2"x15" m)
Loading…
↗
21
68F4597220
UR SDS PROP.
Reliance sds (3x14-1/4"x17"-m)
Loading…
↗
21
68F4597820
UR SDS PROP.
Reliance sds (3x14-1/4"x18"-m)
Loading…
↗
21
68F4597420
UR SDS PROP.
Reliance sds (3x13-3/4"x19"-m)
Loading…
↗
21
68F4597620
UR SDS PROP.
Reliance sds (3x13-3/4"x21"-m)
Loading…
↗
22
6CE45C8110
Damper rubber, propeller 1
Loading…
↗
