Z200PETO (2007)
LOWER CASING & DRIVE 2

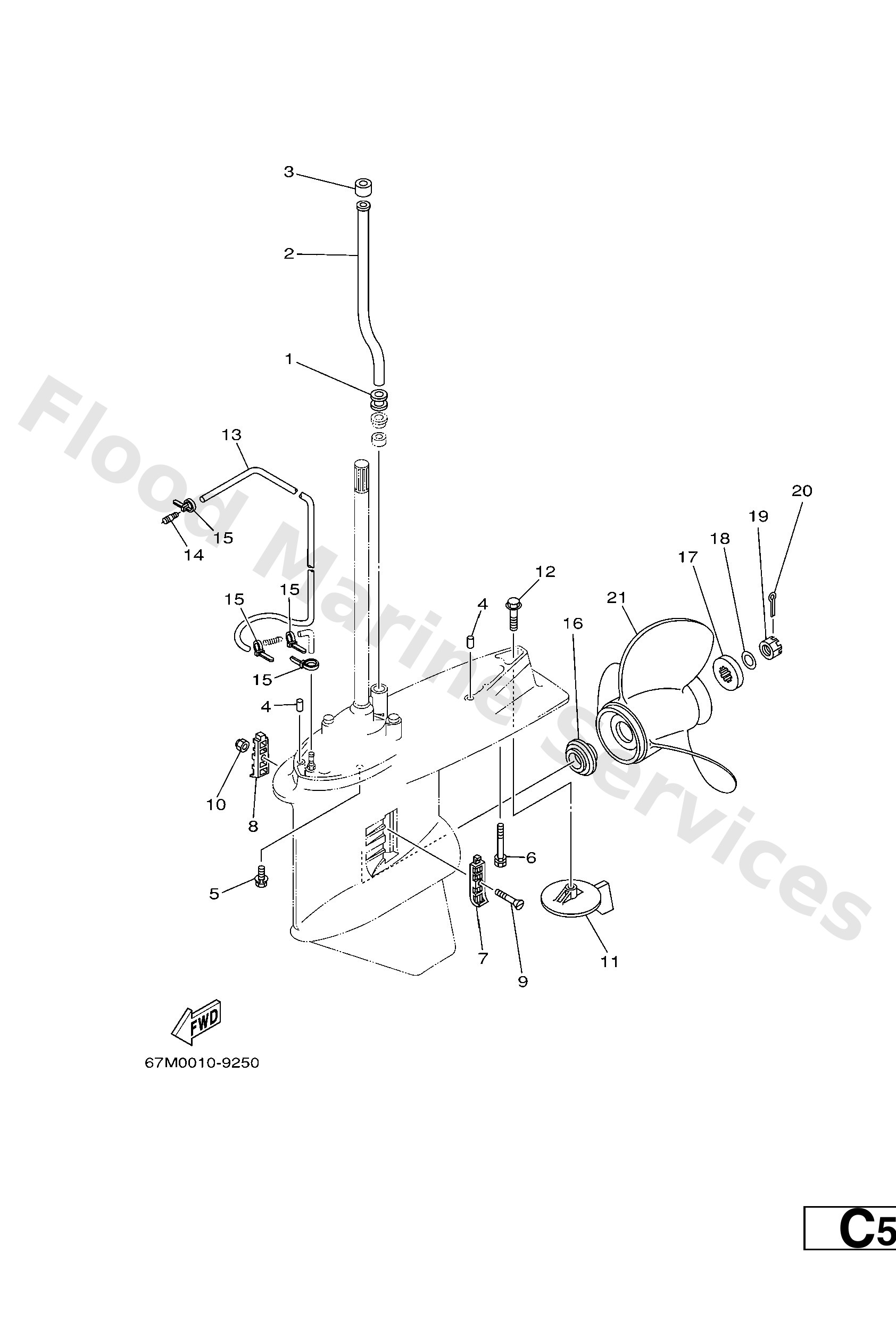

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
6E54436100
L(20.3")
Tube, water
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9010110M70
Bolt(6j9)
Loading…
↗
6
9011910M89
Bolt, with washer
Loading…
↗
7
6J94521400
Cover, water inlet
Loading…
↗
8
6J94521500
Cover, water inlet
Loading…
↗
9
9015205M08
Screw, countersunk
Loading…
↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
11
6J94537101
Tab-trim
Loading…
↗
12
9010510M00
Bolt, hexagon (663)
Loading…
↗
13
9044507M33
-
Loading…
↗
14
6E58355800
End, nipple
Loading…
↗
15
9046511M10
Clamp
Loading…
↗
16
6E54598701
Spacer 1
Loading…
↗
17
6884599701
Spacer 2
Loading…
↗
18
9299018200
Washer (6e5)
Loading…
↗
19
9017118M04
Nut, castle (6e5)
Loading…
↗
20
9149040030
Pin, cotter (663)
Loading…
↗
21
6J94597010
UR
Propeller (3X14-1/2"X25"-M)
Loading…
↗
21
6J94597210
UR
Propeller (3X14-1/2"X23"-M)
Loading…
↗
21
6J94597410
UR
Propeller (3X14-1/2"X27"-M)
Loading…
↗
21
6J94597610
UR
Propeller (3X14-1/2"X21"-M)
Loading…
↗
21
66K45970B0
UR
Propeller (3X14-1/2"X27"-M1)
Loading…
↗
21
66K45972B0
UR
Propeller (3X14-1/2"X25"-M2)
Loading…
↗
