Z250FETO (2006)
LOWER CASING & DRIVE 2

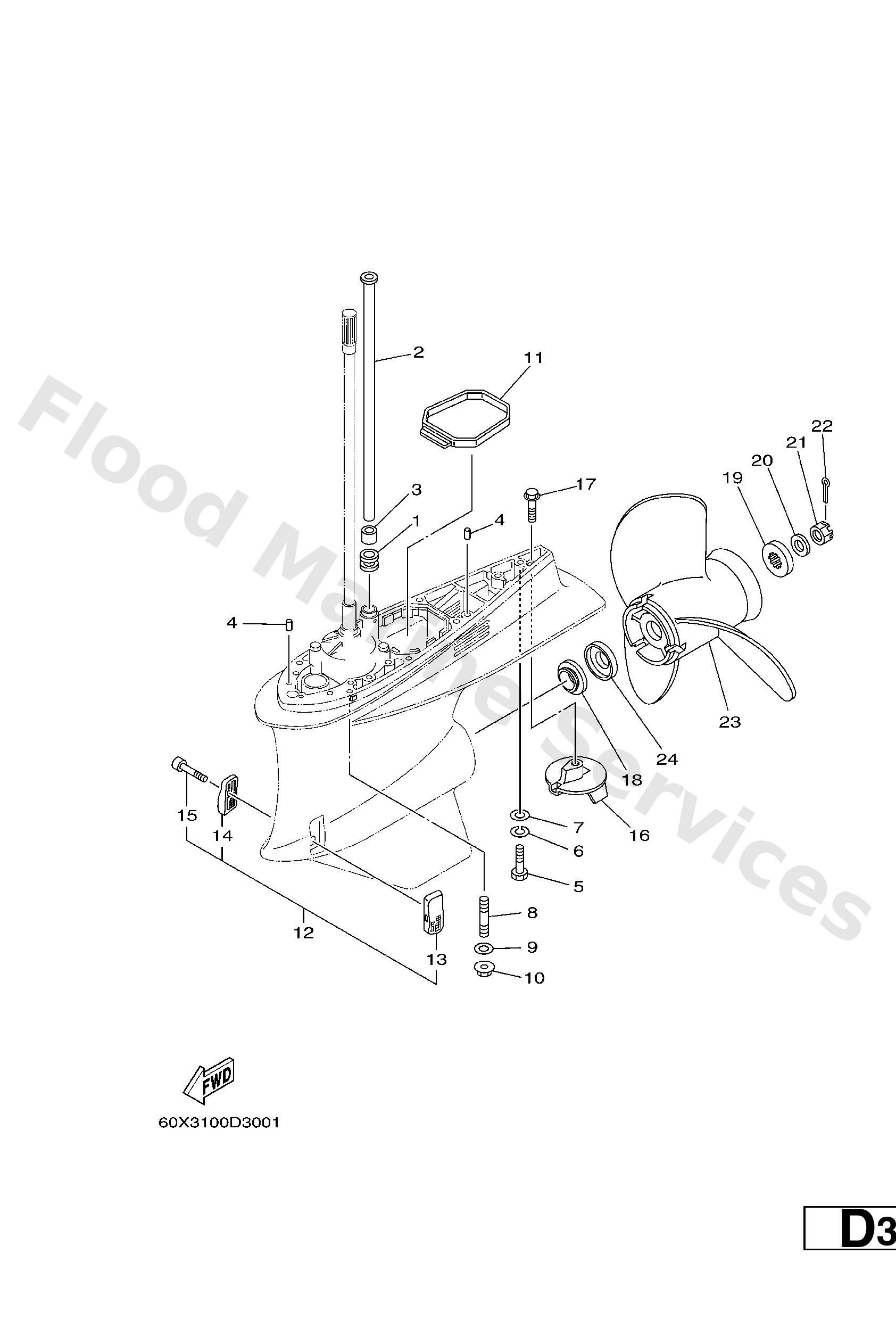

Diagram: LOWER CASING & DRIVE 2
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
66K4436100
Tube, water
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9709510045
Bolt(64d)
Loading…
↗
6
9299510100
Ybs67-10 washer, spring
Loading…
↗
7
9299510600
Washer, plate
Loading…
↗
8
9011610021
Bolt, stud
Loading…
↗
10
9578010300
Nut, nylon (6e5)
Loading…
↗
11
60X4537500
Damper, seal
Loading…
↗
12
60XW452102
Cover set, water inlet
Loading…
↗
13
60X4521402
Cover, water inlet
Loading…
↗
14
60X4521502
Cover, water inlet
Loading…
↗
15
9011005025
Bolt, hexagon socket head
Loading…
↗
16
69L4537100
Tab-trim
Loading…
↗
17
9010510M00
Bolt, hexagon (663)
Loading…
↗
18
60X4598710
Go to P/N)PE0-OM-080083
Spacer 1
Loading…
↗
19
6884599701
Spacer 2
Loading…
↗
20
9299018200
Washer (6e5)
Loading…
↗
21
9017118M04
Nut, castle (6e5)
Loading…
↗
22
9149040030
Pin, cotter (663)
Loading…
↗
23
69L4597020
UR
Propeller (3X15-1/8"X27"-T1)
Loading…
↗
23
69L4597220
UR
Propeller (3X15-1/8"X25"-T1)
Loading…
↗
23
69L4597420
UR
Propeller (3X14-1/2"X23"-T1)
Loading…
↗
23
69L4597620
UR
Propeller (3X14-3/4"X29"-T1)
Loading…
↗
24
60X4599500
Go to P/N)PE0-OM-080083
Spacer 3
Loading…
↗
