50GETO (2004)
LOWER CASING & DRIVE 3

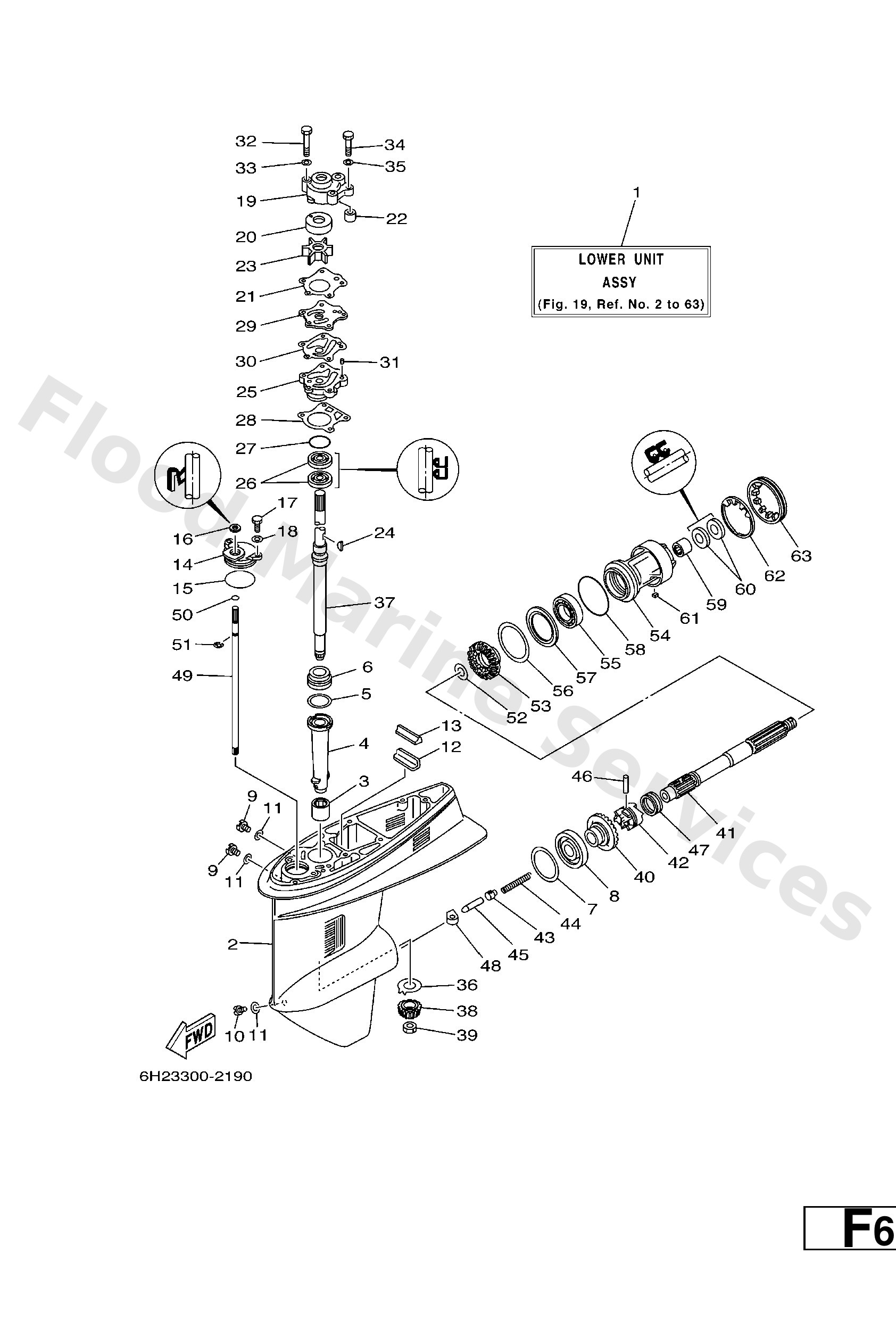

Diagram: LOWER CASING & DRIVE 3
Parts List
Reference
Description
Price
1
62F45300104D
L
Lower Unit assembly
Loading…
↗
2
69745311024D
Casing, lower
Loading…
↗
3
93315322V2
Bearing
Loading…
↗
4
6984553600
Sleeve, Drive Shaft
Loading…
↗
5
663455870112
UR
Shim (t:0.12mm)
Loading…
↗
5
663455870115
UR
Shim (t:0.15mm)
Loading…
↗
5
663455870118
UR
Shim (t:0.18mm)
Loading…
↗
5
663455870130
UR
Shim (t:0,30mm)
Loading…
↗
5
663455870140
UR
Shim (t:0.40mm)
Loading…
↗
5
663455870150
UR
Shim (t:0.50mm)
Loading…
↗
5
663455870110
UR
Shim (t:0.10mm)
Loading…
↗
6
9333200001
Brg, tapered roller (409)
Loading…
↗
7
663455670112
UR
Shim (t:0.12mm)
Loading…
↗
7
663455670150
UR
Shim (t:0.50mm)
Loading…
↗
7
663455670140
UR
Shim (t:0.40mm)
Loading…
↗
7
663455670130
UR
Shim (t:0.30mm)
Loading…
↗
7
663455670118
UR
Shim (t:0.18mm)
Loading…
↗
7
663455670115
UR
Shim (t:0.15mm)
Loading…
↗
7
663455670110
UR
Shim (t:0.10mm)
Loading…
↗
8
9333200003
Brg,cyl-cal roller 318g ky
Loading…
↗
9
9034008002
Plug, straight screw
Loading…
↗
10
6884534110
Plug, drain
Loading…
↗
11
9043008020
Gasket
Loading…
↗
12
663453760094
Guide, seal damper
Loading…
↗
13
6634537500
Rubber, seal 2
Loading…
↗
14
6634532100
Plate
Loading…
↗
15
9321049046
O-ring (620)
Loading…
↗
16
9310609014
Oil seal
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
6634431102
Housing, water pump
Loading…
↗
20
6634432200
Insert, cartridge
Loading…
↗
21
66344315A0
Gasket,water pump 1
Loading…
↗
22
6634436600
Damper, water seal 2
Loading…
↗
23
6H34435200
Impellar
Loading…
↗
24
9028003M03
Key, woodruff (697)
Loading…
↗
25
663443410094
Housing, water pump
Loading…
↗
26
9310123070
Oil seal (663)
Loading…
↗
27
9321041042
O-ring (132)
Loading…
↗
28
66344316A0
Gasket,water pump 2
Loading…
↗
29
6634432300
Outer plate, cartridge
Loading…
↗
30
66344324A0
Gasket,cartridge outer plate
Loading…
↗
31
9360408062
Pin,dowel (626)
Loading…
↗
32
9709508055
Bolt, hexagon
Loading…
↗
33
9299508600
Washer, plain (663)
Loading…
↗
34
9709508045
Bolt, hexagon
Loading…
↗
36
6634555200
Bearing, plain
Loading…
↗
37
62F4550110
L
Drive Shaft Comp.
Loading…
↗
38
6754555100
Pinion (14T)
Loading…
↗
39
9017012138
Nut hexagon(663)
Loading…
↗
40
6754556000
Gear (24T)
Loading…
↗
41
6974561100
Shaft, propeller
Loading…
↗
42
6634563101
Clutch, dog
Loading…
↗
43
6634563400
Slide, shift
Loading…
↗
44
9050116233
Spring compression(663)
Loading…
↗
45
6884563500
Plunger, shift
Loading…
↗
46
9025006023
Pin, strait (663)
Loading…
↗
47
6634563300
Ring, cross pin
Loading…
↗
48
6634415100
Cam, shift
Loading…
↗
49
6K54414400
Rod, shift
Loading…
↗
50
9321007003
O-ring (11m)
Loading…
↗
51
9900108600
Circlip(2r6)
Loading…
↗
52
9020122429
Washer, plate(663)
Loading…
↗
53
6754557101
Gear (24T)
Loading…
↗
54
663453310094
Housing, bearing
Loading…
↗
55
9330600702
Brg,r-b 6007 62mm 150g ky
Loading…
↗
56
663455770130
UR
Shim (t:0.30mm)
Loading…
↗
56
663455770150
UR
Shim (t:0.50mm)
Loading…
↗
56
663455770140
UR
Shim (t:0.40mm)
Loading…
↗
56
663455770118
UR
Shim (t:0.18mm)
Loading…
↗
56
663455770115
UR
Shim (t:0.15mm)
Loading…
↗
56
663455770112
UR
Shim (t:0.12mm)
Loading…
↗
56
663455770110
UR
Shim (t:0.10mm)
Loading…
↗
57
6634557600
Washer, thrust 2
Loading…
↗
58
9321066M98
O-ring(6h4)
Loading…
↗
59
9331722204
Brg,cyl-cal roller 25.5g nt
Loading…
↗
60
9310122067
Oil seal (22x36x6-663)
Loading…
↗
61
9028204010
Key, strait(663)
Loading…
↗
62
9021448M03
Washer, claw(697)
Loading…
↗
63
6974538400
Nut
Loading…
↗
