55BED (2005)
LOWER CASING & DRIVE 3

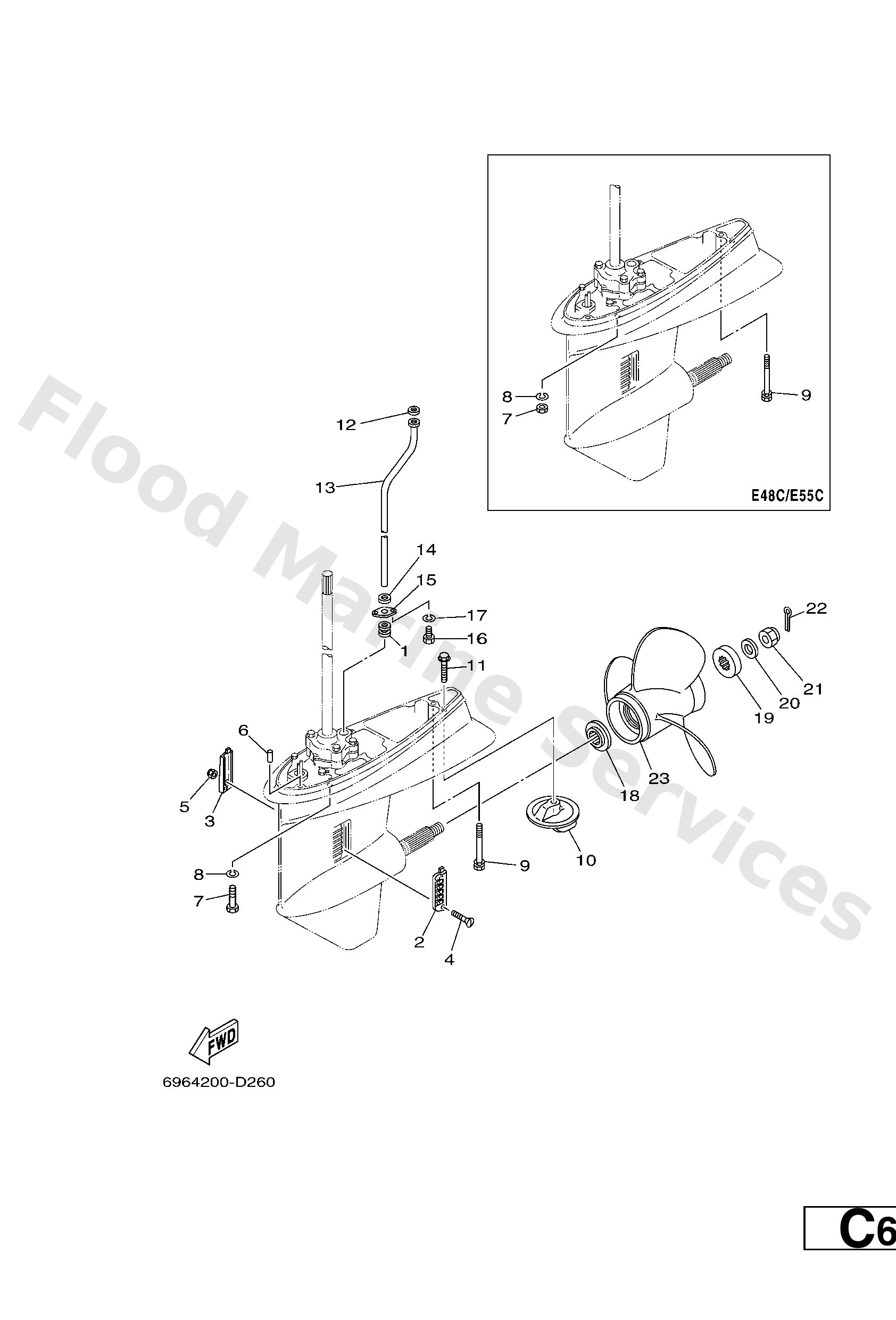

Diagram: LOWER CASING & DRIVE 3
Parts List
Reference
Description
Price
1
6634436700
Damper, water seal 3
Loading…
↗
2
6884521402
Cover, water inlet
Loading…
↗
3
6884521502
Cover, water inlet
Loading…
↗
4
9015205M05
Screw, countersunk
Loading…
↗
5
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
6
9360612019
Pin, dowel (614)
Loading…
↗
7
9707510040
Bolt, hexagon deep recess
Loading…
↗
7
9538010600
Nut(624)
Loading…
↗
8
9299510100
Ybs67-10 washer, spring
Loading…
↗
8
9299010100
Ybs67-10 washer, spring
Loading…
↗
9
9011908M84
Bolt, with washer
Loading…
↗
9
9011908M85
Bolt, with washer
Loading…
↗
10
6794537100
Tab trim
Loading…
↗
11
9010510M67
Bolt, hexagon (663)
Loading…
↗
12
9020212060
Washer, plate(663)
Loading…
↗
13
6634436100
S
Tube, water
Loading…
↗
13
6704436100
S
Tube, water
Loading…
↗
13
6634436110
L
Tube, water
Loading…
↗
13
6704436110
L
Tube,water
Loading…
↗
14
9043012072
Gasket
Loading…
↗
15
6634437300
Set plate, water tube
Loading…
↗
16
9709506012
Bolt(gh1)
Loading…
↗
17
9299506100
Washer(6a1)
Loading…
↗
18
6634598702
Spacer
Loading…
↗
19
6704599702
Spacer
Loading…
↗
20
9299016200
958-58204-00 washer,plain
Loading…
↗
21
9017116011
Nut, castle (663)
Loading…
↗
22
9149040025
Pin, cotter (663)
Loading…
↗
23
697459700098
UR
Propeller (ss 3x11-1/4"x14"-g)
Loading…
↗
23
663459746098
UR
Propeller (3x11-1/2"x13"-g)
Loading…
↗
23
663459726098
UR
Propeller (3x12"x11"-g)
Loading…
↗
23
663459706098
UR
Propeller (3x11-3/4"x12"-g)
Loading…
↗
23
663459780098
UR
Propeller (3x10-1/4"x16"-g)
Loading…
↗
23
663459760098
UR
Propeller (3x10-1/4"x15"-g)
Loading…
↗
23
663459300098
UR
Propeller (3x10-1/4"x14"-g)
Loading…
↗
23
6634595801EL
UR
Propeller (3x11-1/4"x14"-g)
Loading…
↗
23
6634595601EL
UR
Propeller (3x12-1/4"x9"-g)
Loading…
↗
23
6634595401EL
UR
Propeller (3x11-3/4"x10"-g)
Loading…
↗
23
6634595202EL
UR
Propeller (3x11-3/8x12-g)
Loading…
↗
23
6634594901EL
UR
Propeller (3x10-3/4"x16"-g)
Loading…
↗
23
6634594101EL
UR
Propeller (3x10-3/4"x17"-g)
Loading…
↗
23
69W4595200EL
UR
Propeller (3x11-3/8 x12 -g)
Loading…
↗
23
69W4594700EL
UR
Prop assembly (3x11-5/8"x11"-g)
Loading…
↗
23
69W4594500EL
UR
Propeller (3x11-1/8"x13"-g)
Loading…
↗
23
69W4594300EL
UR
Propeller (3x11 x15 -g)
Loading…
↗
