F50AET (2005)
LOWER CASING & DRIVE 3

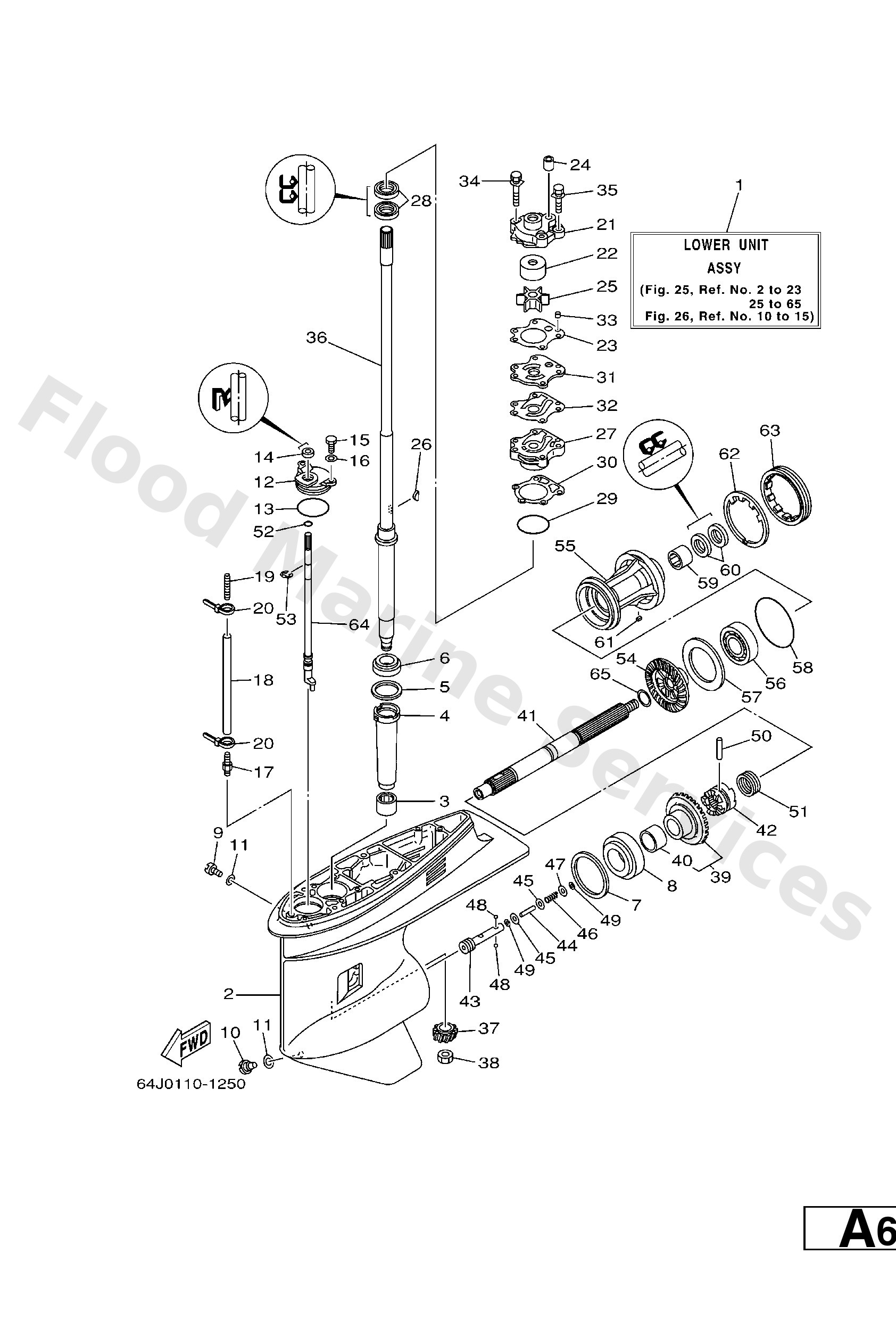

Diagram: LOWER CASING & DRIVE 3
Parts List
Reference
Description
Price
1
64J45300304D
FT50C- L
Lower unit assembly
Loading…
↗
2
67F45301004D
Casing, lower
Loading…
↗
3
9331552563
Bearing
Loading…
↗
4
6884553601
Sleeve, drive shaft
Loading…
↗
5
6884558710
UR
Shim (t:0.12mm)
Loading…
↗
5
6884558720
UR
Shim (t:0.15mm)
Loading…
↗
5
6884558730
UR
Shim (t:0.18mm)
Loading…
↗
5
6884558740
UR
Shim (t:0.30mm)
Loading…
↗
5
6884558750
UR
Shim (t:0.40mm)
Loading…
↗
5
6884558760
UR
Shim (t:0.50mm)
Loading…
↗
5
6884558701
UR
Shim (t:0.10mm)
Loading…
↗
6
93332000U3
Brg,tapered roller 50mm (688)
Loading…
↗
7
6884556701
UR
Shim (t:0.10mm)
Loading…
↗
7
6884556760
UR
Shim (t:0.50mm)
Loading…
↗
7
6884556750
UR
Shim (t:0.40mm)
Loading…
↗
7
6884556740
UR
Shim (t:0.30mm)
Loading…
↗
7
6884556730
UR
Shim (t:0.18mm)
Loading…
↗
7
6884556720
UR
Shim (t:0.15mm)
Loading…
↗
7
6884556710
UR
Shim (t:0.12mm)
Loading…
↗
8
9333200095
Bearing
Loading…
↗
9
9034008002
Plug, straight screw
Loading…
↗
10
6884534110
Plug, drain
Loading…
↗
11
9043008020
Gasket
Loading…
↗
12
6884532100
Plate
Loading…
↗
13
9321049046
O-ring (620)
Loading…
↗
14
9310609014
Oil seal
Loading…
↗
15
9709506016
Bolt, hexagon deep recess
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
6E54537800
Nipple, hose
Loading…
↗
18
9044507M31
L
Hose (l200)
Loading…
↗
19
6E58355810
End, nipple
Loading…
↗
20
9046511M10
Clamp
Loading…
↗
21
6H34431100
Housing, water pump 1
Loading…
↗
22
6634432200
Insert, cartridge
Loading…
↗
23
6H344315A0
Gasket,water pump 1
Loading…
↗
24
6634436600
Damper, water seal 2
Loading…
↗
25
6H34435200
Impellar
Loading…
↗
26
9028003M03
Key, woodruff (697)
Loading…
↗
27
6H3443410094
Housing, water pump set
Loading…
↗
28
9310123070
Oil seal (663)
Loading…
↗
29
9321046044
O-ring
Loading…
↗
30
68844316A0
Gasket,water pump 2
Loading…
↗
31
6H34432300
Outer plate, cartridge
Loading…
↗
32
6H344324A0
Gasket,cartridge 0ut,plate
Loading…
↗
33
9360410M03
Pin, dowel (688)
Loading…
↗
34
9011908M33
Bolt, with washer(6b0)
Loading…
↗
35
9011908M14
Bolt, with washer
Loading…
↗
36
64J4550130
L
Drive shaft comp. (l, d: 18mm)
Loading…
↗
37
64J4555100
Pinion
Loading…
↗
38
9017016M01
Nut, hexagon (688)
Loading…
↗
39
64J4556000
Gear
Loading…
↗
40
93317322V0
Bearing
Loading…
↗
41
67F4561101
Shaft, propeller
Loading…
↗
42
67F4563100
Clutch, dog
Loading…
↗
43
67F4563400
Slide, shift
Loading…
↗
44
6H14566800
Shaft, free 1
Loading…
↗
45
6H14563500
Plunger, shift
Loading…
↗
46
9050112M48
Spring (6h1)
Loading…
↗
47
9020103313
Washer, plate 8077743700
Loading…
↗
48
9350316003
Ball
Loading…
↗
49
9018302M03
Nut, spring (6h1)
Loading…
↗
50
9025007M02
Pin, straight (688)
Loading…
↗
51
6884563300
Ping, cross pin
Loading…
↗
52
9321007003
O-ring (11m)
Loading…
↗
53
9900108600
Circlip(2r6)
Loading…
↗
54
67F4557100
Gear
Loading…
↗
55
67F453310094
Housing, bearing
Loading…
↗
56
93306207U0
Brg,r-b 6207 72mm 280g (688)
Loading…
↗
57
67F4557600
Washer, thrust 2
Loading…
↗
58
9321086M39
O-ring (6e5)
Loading…
↗
59
93317325U0
Brg,needle
Loading…
↗
60
9310125M03
Oil seal
Loading…
↗
61
9028204010
Key, strait(663)
Loading…
↗
62
6884538302
Washer, claw
Loading…
↗
63
6884538402
Nut
Loading…
↗
64
64J4415000
Shift cam assembly
Loading…
↗
65
9020125M05
Washer, plate
Loading…
↗
