FL115AET (2015)
LOWER CASING & DRIVE 3

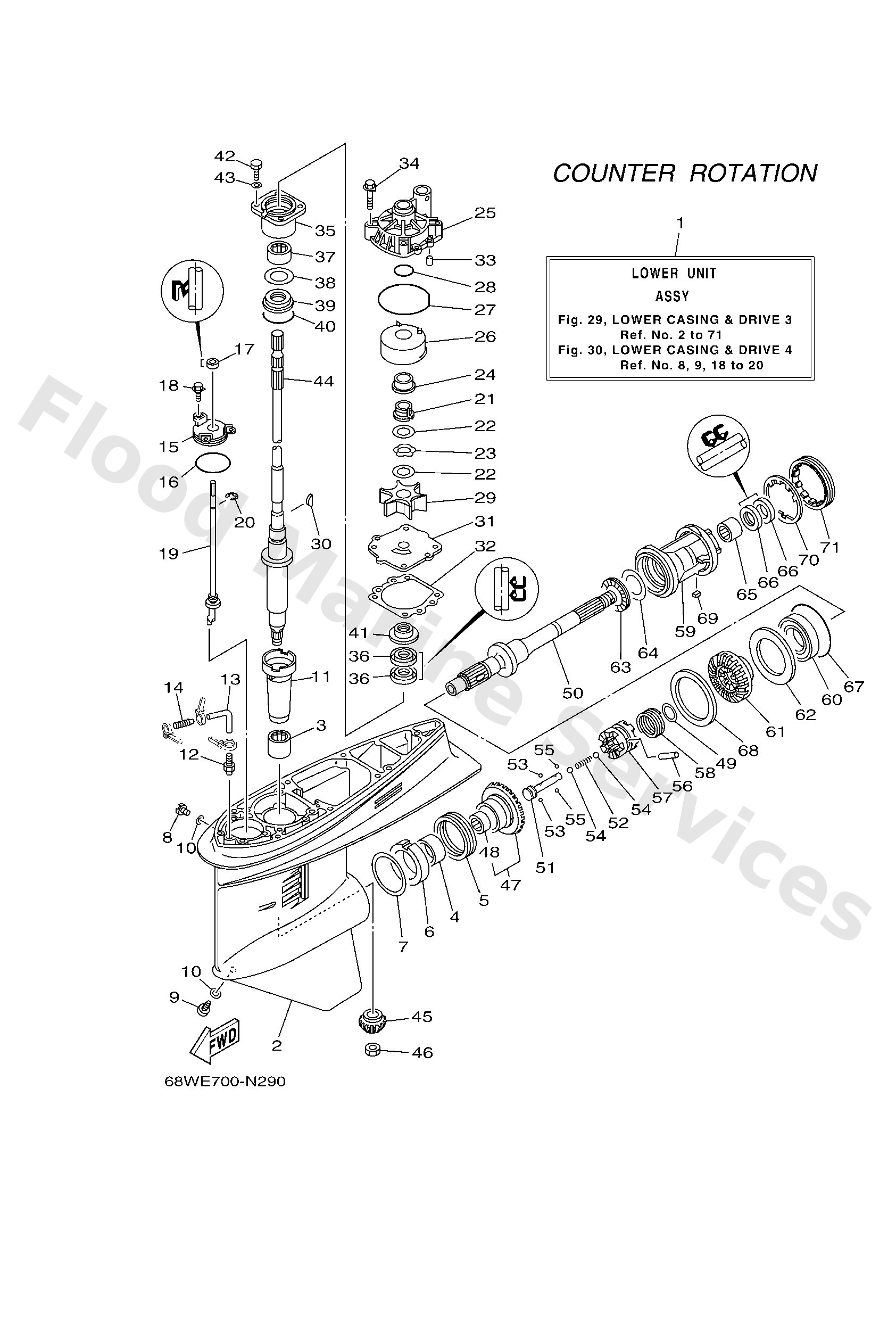

Diagram: LOWER CASING & DRIVE 3
Parts List
Reference
Description
Price
1
68W45300338D
X(25.3"),LH
Lower unit assembly
Loading…
↗
2
6E545301078D
Casing, lower
Loading…
↗
3
93315628U9
Brg,cyl-cal roller (6e5)
Loading…
↗
4
93315345W0
Bearing, cylindrical(6l6)
Loading…
↗
5
93341360U8
Bearing, thrust (6l6)
Loading…
↗
6
6L64553800
Spacer, 1
Loading…
↗
7
6E54556701
UR
Shim (t:0.10mm)
Loading…
↗
7
6E54556710
UR
Shim (t:0.12mm)
Loading…
↗
7
6E54556720
UR
Shim (t:0.15mm)
Loading…
↗
7
6E54556730
UR
Shim (t:0.18mm)
Loading…
↗
7
6E54556740
UR
Shim (t:0.30mm)
Loading…
↗
7
6E54556750
UR
Shim (t:0.40mm)
Loading…
↗
7
6E54556760
UR
Shim (t:0.50mm)
Loading…
↗
8
9034008002
Plug, straight screw
Loading…
↗
9
6884534110
Plug, drain
Loading…
↗
10
9043008020
Gasket
Loading…
↗
11
6E54553600
Sleeve, drive shaft
Loading…
↗
12
6E54537800
Nipple, hose
Loading…
↗
13
9044507ME9
X(25.3")
Hose (l250)
Loading…
↗
14
6E58355810
End, nipple
Loading…
↗
15
6E54532100
Plate
Loading…
↗
16
9321058144
O-ring(47x)
Loading…
↗
17
9310609014
Oil seal
Loading…
↗
18
9011906M10
Bolt, with washer
Loading…
↗
19
6E54415003
Shift cam assembly
Loading…
↗
20
9900108600
Circlip(2r6)
Loading…
↗
21
61A4553800
Spacer, 1
Loading…
↗
22
9020122M01
Washer, plate(61a)
Loading…
↗
23
9020622M19
Washer, wave(61a)
Loading…
↗
24
61A4552700
Collar, drive shaft
Loading…
↗
25
61A4431101
Housing, water pump
Loading…
↗
26
61A4432202
Insert, cartridge
Loading…
↗
27
9321086M38
O-ring (6e5)
Loading…
↗
28
9321037160
O-ring (6g8)
Loading…
↗
29
6E54435201
Impeller
Loading…
↗
30
9028004M05
Key, woodruff (6e5)
Loading…
↗
31
6EK4432300
Outer plate, cartridge
Loading…
↗
32
6E544315A0
Gasket,water pump
Loading…
↗
33
9360612019
Pin, dowel (614)
Loading…
↗
34
9011908M14
Bolt, with washer
Loading…
↗
35
6E545331009S
Housing, bearing
Loading…
↗
36
9310128M16
Oil seal (6e5)
Loading…
↗
37
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
38
6E54558760
UR
Shim (t:0.50mm)
Loading…
↗
38
6E54558750
UR
Shim (t:0.40mm)
Loading…
↗
38
6E54558740
UR
Shim (t:0.30mm)
Loading…
↗
38
6E54558720
UR
Shim (t:0.15mm)
Loading…
↗
38
6E54558730
UR
Shim (t:0.18mm)
Loading…
↗
38
6E54558701
UR
Shim (t:0.10mm)
Loading…
↗
38
6E54558710
UR
Shim (t:0.12mm)
Loading…
↗
39
93341930V2
Bearing, thrust(64d)
Loading…
↗
40
9321055M14
O-ring (70e)
Loading…
↗
41
6E54534400
Cover, oil seal
Loading…
↗
42
9709508025
Bolt (62g)
Loading…
↗
43
9299508600
Washer, plain (663)
Loading…
↗
44
68V4550130
X(25.3")
Drive shaft comp.
Loading…
↗
45
68V4555100
Pinion
Loading…
↗
46
9017016M01
Nut, hexagon (688)
Loading…
↗
47
68W4556000
Gear
Loading…
↗
48
93315425U7
Brg,cyl-cal roller (6e5)
Loading…
↗
49
9020126M00
Washer, plate(6k0)
Loading…
↗
50
68W4561100
Shaft, propeller
Loading…
↗
51
6E54563402
Slide, shift
Loading…
↗
52
9050116M37
Spring (6g5)
Loading…
↗
53
9350732009
Ball (12r)
Loading…
↗
54
9351132017
Ball (498)
Loading…
↗
55
9350316003
Ball
Loading…
↗
56
9025008M07
Pin, straight (6g5)
Loading…
↗
57
68V4563101
Clutch, dog
Loading…
↗
58
6E54563301
Ring, cross pin
Loading…
↗
59
6L64533200CA
Housing, bearing
Loading…
↗
60
93332000V7
Bearing(6l6)
Loading…
↗
61
68W4557010
Gear
Loading…
↗
62
6L64557600
Washer, thrust
Loading…
↗
63
93341440U5
Bearing, thrust (6k0)
Loading…
↗
64
6K14557801
UR
Shim (t:0.10mm)
Loading…
↗
64
6K14557810
UR
Shim (t:0.12mm)
Loading…
↗
64
6K14557820
UR
Shim (t:0.15mm)
Loading…
↗
64
6K14557830
UR
Shim (t:0.18mm)
Loading…
↗
64
6K14557840
UR
Shim (t:0.30mm)
Loading…
↗
64
6K14557850
UR
Shim (t:0.40mm)
Loading…
↗
64
6K14557860
UR
Shim (t:0.50mm)
Loading…
↗
65
9331543061
Bearing
Loading…
↗
66
9310130M17
Oil seal (6e5)
Loading…
↗
67
9321086M39
O-ring (6e5)
Loading…
↗
68
6L64557700
UR
Shim (t:0.10mm)
Loading…
↗
68
6L64557710
UR
Shim (t:0.12mm)
Loading…
↗
68
6L64557720
UR
Shim (t:0.15mm)
Loading…
↗
68
6L64557730
UR
Shim (t:0.18mm)
Loading…
↗
68
6L64557740
UR
Shim (t:0.30mm)
Loading…
↗
68
6L64557750
UR
Shim (t:0.40mm)
Loading…
↗
68
6L64557760
UR
Shim (t:0.50mm)
Loading…
↗
69
9028204010
Key, strait(663)
Loading…
↗
70
6884538302
Washer, claw
Loading…
↗
71
6884538402
Nut
Loading…
↗
