FL225BET (2011)
LOWER CASING & DRIVE 3

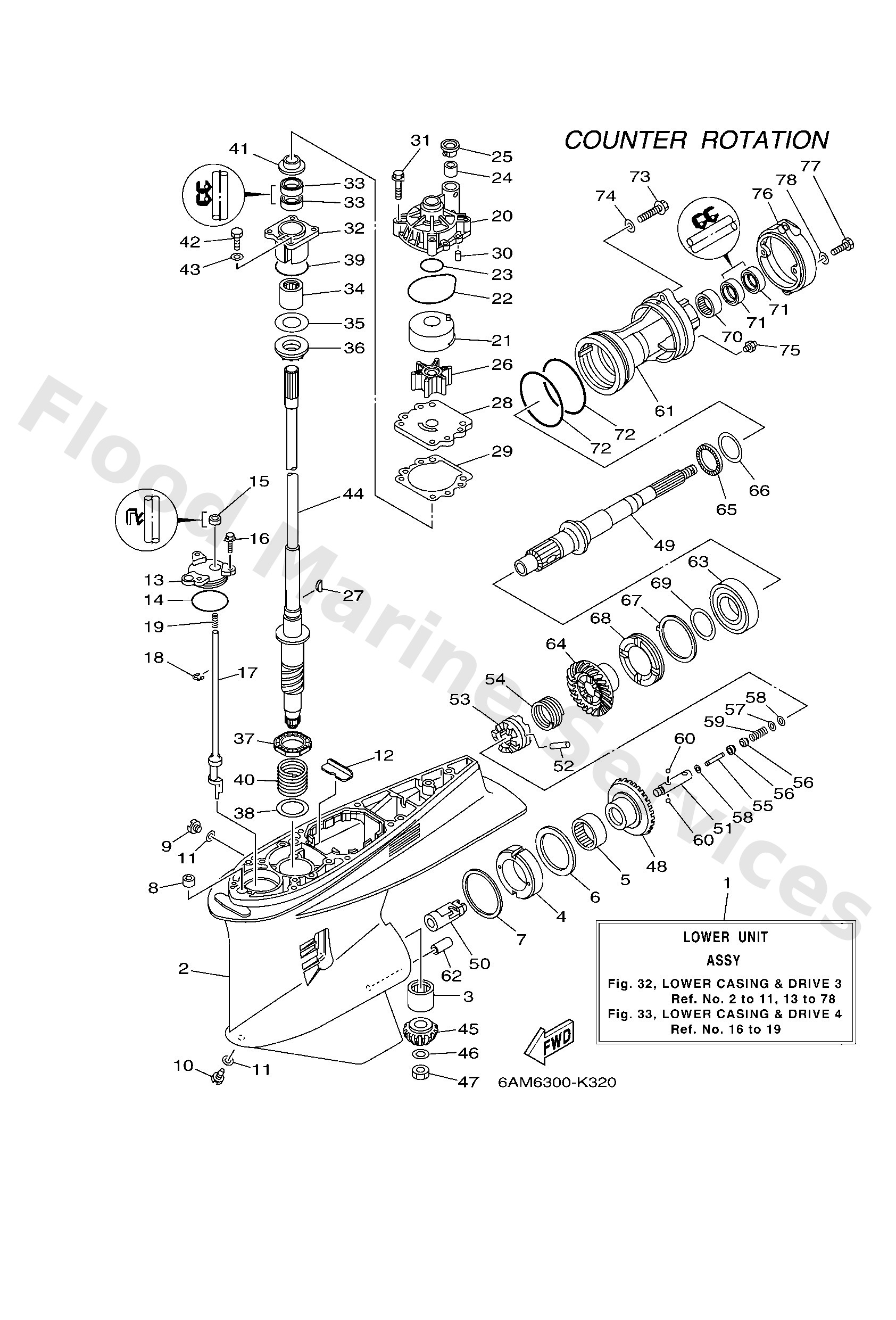

Diagram: LOWER CASING & DRIVE 3
Parts List
Reference
Description
Price
1
6P345300208D
X(25.3"),LH
Lower unit assembly
Loading…
↗
2
6P245301008D
Casing, lower
Loading…
↗
3
9331183280
Ball bearing
Loading…
↗
4
61B4553801
Spacer 1
Loading…
↗
5
93315660W3
Bearing, cylindrical(61b)
Loading…
↗
6
93341670V0
Bearing, thrust (61b)
Loading…
↗
7
61A4556700
UR
Shim (t:0.10mm)
Loading…
↗
7
61A4556710
UR
Shim (t:0.12mm)
Loading…
↗
7
61A4556720
UR
Shim (t:0.15mm)
Loading…
↗
7
61A4556730
UR
Shim (t:0.18mm)
Loading…
↗
7
61A4556740
UR
Shim (t:0.30mm)
Loading…
↗
7
61A4556750
UR
Shim (t:0.40mm)
Loading…
↗
7
61A4556760
UR
Shim (t:0.50mm)
Loading…
↗
8
6634436600
Damper, water seal 2
Loading…
↗
9
9034008002
Plug, straight screw
Loading…
↗
10
6884534110
Plug, drain
Loading…
↗
11
9043008020
Gasket
Loading…
↗
12
61A4537600
Guide, seal damper
Loading…
↗
13
61A4532101
Plate
Loading…
↗
14
9321064488
93210-64488
Loading…
↗
15
9310609014
Oil seal
Loading…
↗
16
9011906M10
Bolt, with washer
Loading…
↗
17
69K4415000
Shift cam assembly
Loading…
↗
18
9900108600
Circlip(2r6)
Loading…
↗
19
9050111M10
Spring, compression (663)
Loading…
↗
20
61A4431101
Housing, water pump
Loading…
↗
21
61A4432202
Insert, cartridge
Loading…
↗
22
9321086M38
O-ring (6e5)
Loading…
↗
23
9321037160
O-ring (6g8)
Loading…
↗
24
6E54436500
Damper, water seal 1
Loading…
↗
25
6E54431200
Cover, water pump housing
Loading…
↗
26
6E54435201
Impeller
Loading…
↗
27
9028004M05
Key, woodruff (6e5)
Loading…
↗
28
6G54432300
Outer plate, cartridge
Loading…
↗
29
6E544315A0
Gasket,water pump
Loading…
↗
30
9360612019
Pin, dowel (614)
Loading…
↗
31
9011908M14
Bolt, with washer
Loading…
↗
32
61A45331009S
Housing, bearing
Loading…
↗
33
9310128M16
Oil seal (6e5)
Loading…
↗
34
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
35
61A4558700
UR
Shim (t:0.10mm)
Loading…
↗
35
61A4558710
UR
Shim (t:0.12mm)
Loading…
↗
35
61A4558720
UR
Shim (t:0.15mm)
Loading…
↗
35
61A4558730
UR
Shim (t:0.18mm)
Loading…
↗
35
61A4558740
UR
Shim (t:0.30mm)
Loading…
↗
35
61A4558750
UR
Shim (t:0.40mm)
Loading…
↗
35
61A4558760
UR
Shim (t:0.50mm)
Loading…
↗
36
93341930U9
Bearing
Loading…
↗
37
9334134019
Bearing
Loading…
↗
38
9020142014
Washer, plate
Loading…
↗
39
9321055M14
O-ring (70e)
Loading…
↗
40
90501450A2
Spring, compression
Loading…
↗
41
6E54534400
Cover, oil seal
Loading…
↗
42
9709508025
Bolt (62g)
Loading…
↗
43
9299508600
Washer, plain (663)
Loading…
↗
44
6P24550100
X(25.3")
Drive shaft comp.
Loading…
↗
45
6P24555101
Pinion
Loading…
↗
46
9020116M00
Washer, plate(6t5)
Loading…
↗
47
9017016M19
Nut(6t5)
Loading…
↗
48
6P34556000
Gear
Loading…
↗
49
69K4561100
Shaft, propeller
Loading…
↗
50
61B4564101
Shifter
Loading…
↗
51
61A4563401
Slide, shift
Loading…
↗
52
61A4563200
Pin, cross
Loading…
↗
53
69J4563100
Clutch, dog
Loading…
↗
54
61A4563300
Ring, cross pin
Loading…
↗
55
6H14566800
Shaft, free 1
Loading…
↗
56
61A4563500
Plunger, shift
Loading…
↗
57
9020102M00
Washer, plate(61a)
Loading…
↗
58
9018302M03
Nut, spring (6h1)
Loading…
↗
59
9050110M77
Spring, compression(61a)
Loading…
↗
60
9350104011
Ball
Loading…
↗
61
6D14533200CA
Housing, bearing
Loading…
↗
62
9959010114
Pin, dowel
Loading…
↗
63
9333200048
Bearing(6k0)
Loading…
↗
64
6P34557100
Gear
Loading…
↗
65
93341440U5
Bearing, thrust (6k0)
Loading…
↗
66
6K14557801
UR
Shim (t:0.10mm)
Loading…
↗
66
6K14557810
UR
Shim (t:0.12mm)
Loading…
↗
66
6K14557820
UR
Shim (t:0.15mm)
Loading…
↗
66
6K14557830
UR
Shim (t:0.18mm)
Loading…
↗
66
6K14557840
UR
Shim (t:0.30mm)
Loading…
↗
66
6K14557850
UR
Shim (t:0.40mm)
Loading…
↗
66
6K14557860
UR
Shim (t:0.50mm)
Loading…
↗
67
61B4538300
Washer, claw
Loading…
↗
68
69K4538400
Nut
Loading…
↗
69
69K4557700
UR
Shim (t:0.10mm)
Loading…
↗
69
69K4557710
UR
Shim (t:0.12mm)
Loading…
↗
69
69K4557720
UR
Shim (t:0.15mm)
Loading…
↗
69
69K4557730
UR
Shim (t:0.18mm)
Loading…
↗
69
69K4557740
UR
Shim (t:0.30mm)
Loading…
↗
69
69K4557750
UR
Shim (t:0.40mm)
Loading…
↗
69
69K4557760
UR
Shim (t:0.50mm)
Loading…
↗
70
9331543064
Bearing
Loading…
↗
71
9310130002
Oil seal
Loading…
↗
72
9321104384
O-ring (705)
Loading…
↗
73
9010508049
Bolt, flange
Loading…
↗
74
9020108023
Washer, plate
Loading…
↗
75
9370009M00
Nipple, grease(6t4)
Loading…
↗
76
6D045361008D
Cap, lower casing
Loading…
↗
77
9709508020
Bolt, hexagon
Loading…
↗
