FL250AET (2010)
LOWER CASING & DRIVE 3

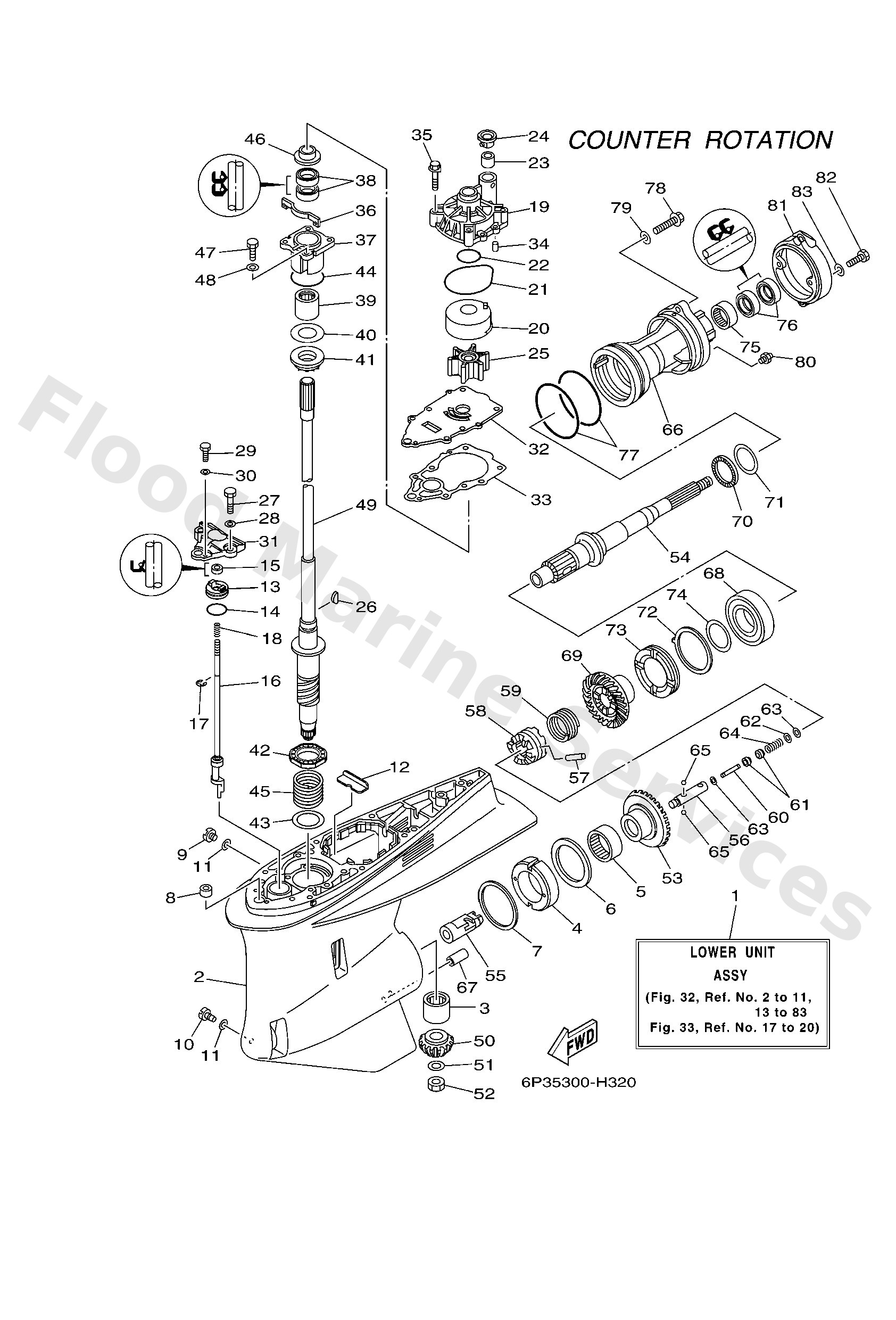

Diagram: LOWER CASING & DRIVE 3
Parts List
Reference
Description
Price
1
6P345300408D
X(25.3"),LH
Lower unit assembly
Loading…
↗
1
6P345300508D
U(30.3"),LH
Lower unit assembly
Loading…
↗
2
6P245301108D
Casing, lower
Loading…
↗
3
9331183280
Ball bearing
Loading…
↗
4
61B4553801
33
Loading…
↗
5
93315660W3
Bearing
Loading…
↗
6
93341670V0
Bearing
Loading…
↗
7
61A4556700
UR
Shim (t:0.10mm)
Loading…
↗
7
61A4556710
UR
Shim (t:0.12mm)
Loading…
↗
7
61A4556720
UR
Shim (t:0.15mm)
Loading…
↗
7
61A4556730
UR
Shim (t:0.18mm)
Loading…
↗
7
61A4556740
UR
Shim (t:0.30mm)
Loading…
↗
7
61A4556750
UR
Shim (t:0.40mm)
Loading…
↗
7
61A4556760
UR
Shim (t:0.50mm)
Loading…
↗
8
6634436600
Damper, Water Seal 2
Loading…
↗
9
9034008002
Plug, Straight Screw
Loading…
↗
10
6884534110
Plug, Drain
Loading…
↗
11
9043008020
Gasket
Loading…
↗
12
61A453760094
31
Loading…
↗
13
65N4532100
Plate
Loading…
↗
14
9321033M49
O-ring(6l5)
Loading…
↗
15
9310609014
28
Loading…
↗
16
6P34415000
Shift cam assembly
Loading…
↗
17
9900108600
Circlip
Loading…
↗
18
9050111M10
Spring, Compression
Loading…
↗
19
61A4431101
Housing, Water Pump
Loading…
↗
20
61A4432202
Insert, Cartridge
Loading…
↗
21
9321086M38
O-Ring
Loading…
↗
22
9321037160
O-Ring
Loading…
↗
23
6E54436500
Damper, Water Seal 1
Loading…
↗
24
6E54431200
Cover, Water Pump Housing
Loading…
↗
25
6E54435201
Impeller
Loading…
↗
26
9028004M05
29
Loading…
↗
27
9709508030
Bolt
Loading…
↗
28
9299508600
17
Loading…
↗
29
9709506016
Bolt
Loading…
↗
30
9299506600
10
Loading…
↗
31
60X4431200
Cover, water pump housing
Loading…
↗
32
6P24432300
Outer plate, cartridge
Loading…
↗
33
60X44315A0
Gasket, water pump
Loading…
↗
34
9360612019
Pin, Dowel
Loading…
↗
35
9011908M14
Bolt, With Washer
Loading…
↗
36
6P24572300
Plate, seal
Loading…
↗
37
6P245331009S
Housing, bearing
Loading…
↗
38
9310128M16
Oil Seal
Loading…
↗
39
93317330U2
Bearing
Loading…
↗
40
61A4558700
UR
Shim (t:0.10mm)
Loading…
↗
40
61A4558710
UR
Shim (t:0.12mm)
Loading…
↗
40
61A4558720
UR
Shim (t:0.15mm)
Loading…
↗
40
61A4558730
UR
Shim (t:0.18mm)
Loading…
↗
40
61A4558740
UR
Shim (t:0.30mm)
Loading…
↗
40
61A4558750
UR
Shim (t:0.40mm)
Loading…
↗
40
61A4558760
UR
Shim (t:0.50mm)
Loading…
↗
41
93341930U9
Bearing
Loading…
↗
42
9334134019
Bearing
Loading…
↗
43
9020142014
Washer, plate
Loading…
↗
44
9321055M14
O-Ring
Loading…
↗
45
90501450A2
Spring, compression
Loading…
↗
46
6E54534400
Cover, Oil Seal
Loading…
↗
47
9709508025
Bolt
Loading…
↗
49
6P24550100
X(25.3")
Drive shaft comp.
Loading…
↗
49
6P24550110
U(30.3")
Drive shaft comp.
Loading…
↗
50
6P24555101
Pinion
Loading…
↗
51
9020116M00
Washer, Plate
Loading…
↗
52
9017016M19
Nut
Loading…
↗
53
6P34556000
Gear
Loading…
↗
54
69K4561100
Shaft, Propeller
Loading…
↗
55
61B4564101
Shifter
Loading…
↗
56
61A4563401
Slide, Shift
Loading…
↗
57
61A4563200
Pin, Cross
Loading…
↗
58
69J4563100
Clutch, Dog
Loading…
↗
59
61A4563300
Ring, Cross Pin
Loading…
↗
60
6H14566800
Shaft, Free 1
Loading…
↗
61
61A4563500
Plunger, Shift
Loading…
↗
62
9020102M00
Washer, Plate
Loading…
↗
63
9018302M03
Nut, Spring
Loading…
↗
64
9050110M77
Spring, Compression
Loading…
↗
65
9350104011
Ball
Loading…
↗
66
6D14533200CA
Housing, bearing
Loading…
↗
67
9959010114
Pin, Dowel
Loading…
↗
68
9333200048
Bearing
Loading…
↗
69
6P34557100
Gear
Loading…
↗
70
93341440U5
Bearing
Loading…
↗
71
6K14557801
UR
Shim (T)0.10Mm)
Loading…
↗
71
6K14557810
UR
Shim (T)0.12Mm)
Loading…
↗
71
6K14557820
UR
Shim (T)0.15Mm)
Loading…
↗
71
6K14557830
UR
Shim (T)0.18Mm)
Loading…
↗
71
6K14557840
UR
Shim (T)0.30Mm)
Loading…
↗
71
6K14557850
UR
Shim (T)0.40Mm)
Loading…
↗
71
6K14557860
UR
Shim (T)0.50Mm)
Loading…
↗
72
61B4538300
33
Loading…
↗
73
69K4538400
33
Loading…
↗
74
69K4557700
UR
Shim (T)0.10Mm)
Loading…
↗
74
69K4557710
UR
Shim (T)0.12Mm)
Loading…
↗
74
69K4557720
UR
Shim (T)0.15Mm)
Loading…
↗
74
69K4557730
UR
Shim (T)0.18Mm)
Loading…
↗
74
69K4557740
UR
Shim (T)0.30Mm)
Loading…
↗
74
69K4557750
UR
Shim (T)0.40Mm)
Loading…
↗
74
69K4557760
UR
Shim (T)0.50Mm)
Loading…
↗
75
9331543064
Bearing
Loading…
↗
76
9310130002
Oil seal
Loading…
↗
77
9321104384
O–Ring
Loading…
↗
78
9010508049
Bolt, flange
Loading…
↗
79
9020108023
Washer, Plate
Loading…
↗
80
9370009M00
Nipple, Grease
Loading…
↗
81
6D045361008D
Cap, lower casing
Loading…
↗
82
9709508020
Bolt
Loading…
↗
