Z250DETO (2007)
LOWER CASING & DRIVE 3

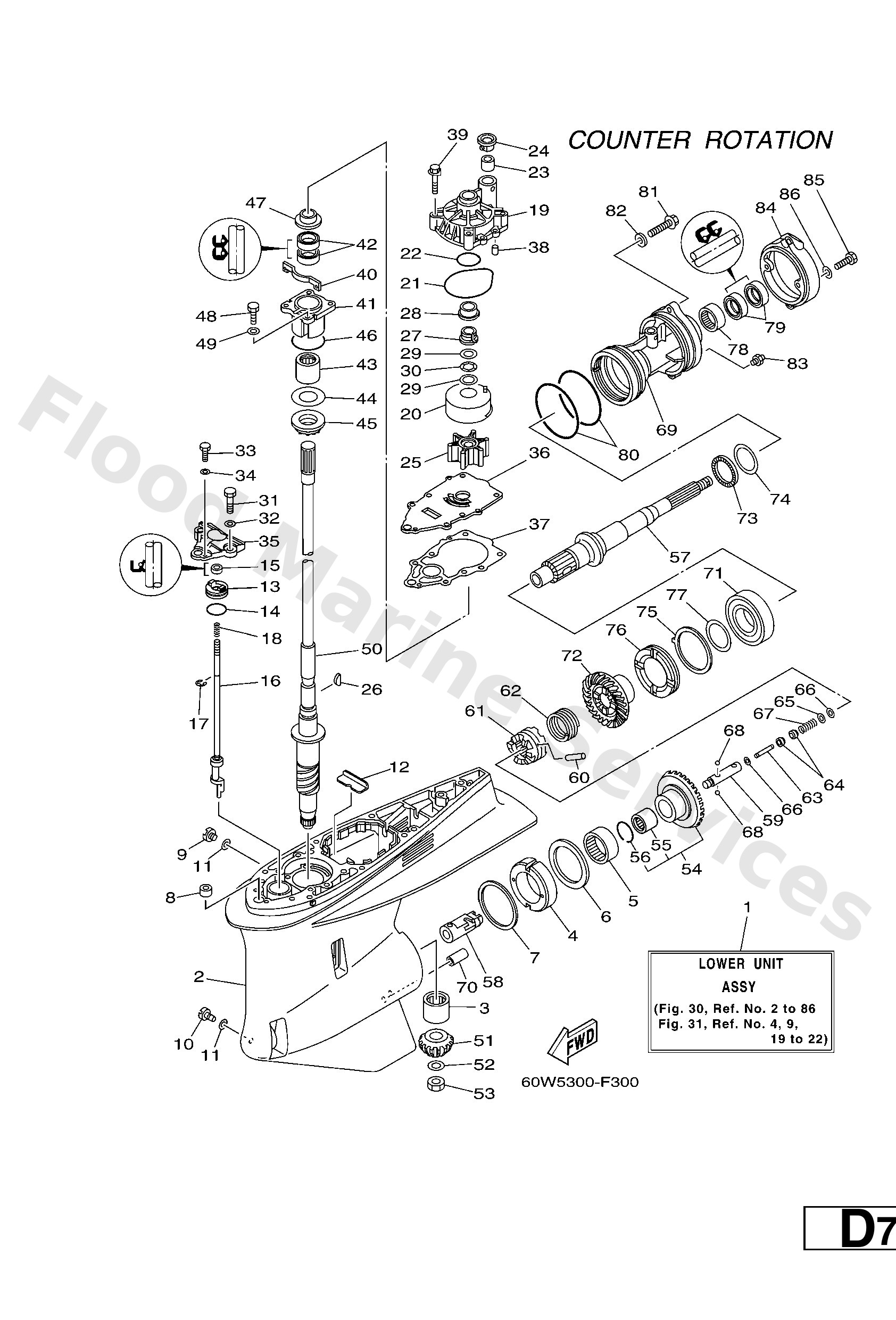

Diagram: LOWER CASING & DRIVE 3
Parts List
Reference
Description
Price
1
60W45300408D
X(25.2"),LH
Lower Unit assembly
Loading…
↗
2
6P245301108D
Casing, lower
Loading…
↗
3
9331183280
Ball bearing
Loading…
↗
4
61B4553801
Spacer 1
Loading…
↗
5
93315660W3
Bearing, cylindrical(61b)
Loading…
↗
6
93341670V0
Bearing, thrust (61b)
Loading…
↗
7
61A4556700
UR
Shim (t:0.10mm)
Loading…
↗
7
61A4556710
UR
Shim (t:0.12mm)
Loading…
↗
7
61A4556720
UR
Shim (t:0.15mm)
Loading…
↗
7
61A4556730
UR
Shim (t:0.18mm)
Loading…
↗
7
61A4556740
UR
Shim (t:0.30mm)
Loading…
↗
7
61A4556750
UR
Shim (t:0.40mm)
Loading…
↗
7
61A4556760
UR
Shim (t:0.50mm)
Loading…
↗
8
6634436600
Damper, water seal 2
Loading…
↗
9
9034008002
Plug, straight screw
Loading…
↗
10
6884534110
Plug, drain
Loading…
↗
11
9043008020
Gasket
Loading…
↗
12
61A453760094
Guide, seal damper
Loading…
↗
13
65N4532100
Plate
Loading…
↗
14
9321033M49
O-ring(6l5)
Loading…
↗
15
9310609014
Oil seal
Loading…
↗
16
6P34415000
Shift cam assembly
Loading…
↗
17
9900108600
Circlip(2r6)
Loading…
↗
18
9050111M10
Spring, compression (663)
Loading…
↗
19
61A4431101
Housing, water pump
Loading…
↗
20
61A4432202
Insert, cartridge
Loading…
↗
21
9321086M38
O-ring (6e5)
Loading…
↗
22
9321037160
O-ring (6g8)
Loading…
↗
23
6E54436500
Damper, water seal 1
Loading…
↗
24
6E54431200
Cover, water pump housing
Loading…
↗
25
6E54435201
Impeller
Loading…
↗
26
9028004M05
Key, woodruff (6e5)
Loading…
↗
27
61A4553800
Spacer, 1
Loading…
↗
28
61A4552700
Collar, drive shaft
Loading…
↗
29
9020122M01
Washer, plate(61a)
Loading…
↗
30
9020622M19
Washer, wave(61a)
Loading…
↗
31
9709508030
Bolt, hexagon (fj1)
Loading…
↗
32
9299508600
Washer, plain (663)
Loading…
↗
33
9709506016
Bolt, hexagon deep recess
Loading…
↗
34
9299506600
Washer, plain (646)
Loading…
↗
35
60X4431200
Cover, water pump housing
Loading…
↗
36
6P24432300
Outer plate, cartridge
Loading…
↗
37
60X44315A0
Gasket, water pump
Loading…
↗
38
9360612019
Pin, dowel (614)
Loading…
↗
39
9011908M14
Bolt, with washer
Loading…
↗
40
6P24572300
Plate, seal
Loading…
↗
41
6P2453310094
Housing, bearing
Loading…
↗
42
9310128M16
Oil seal (6e5)
Loading…
↗
43
93317330U2
Bearing, cylindrical(6k0)
Loading…
↗
44
61A4558700
UR
Shim (t:0.10mm)
Loading…
↗
44
61A4558710
UR
Shim (t:0.12mm)
Loading…
↗
44
61A4558720
UR
Shim (t:0.15mm)
Loading…
↗
44
61A4558730
UR
Shim (t:0.18mm)
Loading…
↗
44
61A4558740
UR
Shim (t:0.30mm)
Loading…
↗
44
61A4558750
UR
Shim (t:0.40mm)
Loading…
↗
44
61A4558760
UR
Shim (t:0.50mm)
Loading…
↗
45
93341930U9
Bearing
Loading…
↗
46
9321055M14
O-ring (70e)
Loading…
↗
47
6E54534400
Cover, oil seal
Loading…
↗
48
9709508025
Bolt (62g)
Loading…
↗
50
60V4550120
X(25.2")
-
Loading…
↗
51
60V4555100
Pinion
Loading…
↗
52
9020116M00
Washer, plate(6t5)
Loading…
↗
53
9017016M19
Nut(6t5)
Loading…
↗
54
60W4556001
-
Loading…
↗
55
9331762891
Bearing
Loading…
↗
56
9345037097
Circlip
Loading…
↗
57
69K4561100
Shaft, propeller
Loading…
↗
58
61B4564101
Shifter
Loading…
↗
59
61A4563401
Slide, shift
Loading…
↗
60
61A4563200
Pin, cross
Loading…
↗
61
60V4563100
Clutch, dog
Loading…
↗
62
61A4563300
Ring, cross pin
Loading…
↗
63
6H14566800
Shaft, free 1
Loading…
↗
64
61A4563500
Plunger, shift
Loading…
↗
65
9020102M00
Washer, plate(61a)
Loading…
↗
66
9018302M03
Nut, spring (6h1)
Loading…
↗
67
9050110M77
Spring, compression(61a)
Loading…
↗
68
9350104011
Ball
Loading…
↗
69
6D1453320094
Housing, bearing
Loading…
↗
70
9959010114
Pin, dowel
Loading…
↗
71
9333200048
Bearing(6k0)
Loading…
↗
72
60W4557100
-
Loading…
↗
73
93341440U5
Bearing, thrust (6k0)
Loading…
↗
74
6K14557801
UR
Shim (t:0.10mm)
Loading…
↗
74
6K14557810
UR
Shim (t:0.12mm)
Loading…
↗
74
6K14557820
UR
Shim (t:0.15mm)
Loading…
↗
74
6K14557830
UR
Shim (t:0.18mm)
Loading…
↗
74
6K14557840
UR
Shim (t:0.30mm)
Loading…
↗
74
6K14557850
UR
Shim (t:0.40mm)
Loading…
↗
74
6K14557860
UR
Shim (t:0.50mm)
Loading…
↗
75
61B4538300
Washer, claw
Loading…
↗
76
69K4538400
Nut
Loading…
↗
77
69K4557700
UR
Shim (t:0.10mm)
Loading…
↗
77
69K4557710
UR
Shim (t:0.12mm)
Loading…
↗
77
69K4557720
UR
Shim (t:0.15mm)
Loading…
↗
77
69K4557730
UR
Shim (t:0.18mm)
Loading…
↗
77
69K4557740
UR
Shim (t:0.30mm)
Loading…
↗
77
69K4557750
UR
Shim (t:0.40mm)
Loading…
↗
77
69K4557760
UR
Shim (t:0.50mm)
Loading…
↗
78
9331543064
Bearing
Loading…
↗
79
9310130002
Oil seal
Loading…
↗
80
9321104384
O-ring (705)
Loading…
↗
81
9010508049
Bolt, flange
Loading…
↗
82
9020108023
Washer, plate
Loading…
↗
83
9370009M00
Nipple, grease(6t4)
Loading…
↗
84
6D045361008D
Cap, lower casing
Loading…
↗
85
9709508020
Bolt, hexagon
Loading…
↗
