200FETO (2009)
LOWER CASING & DRIVE 4

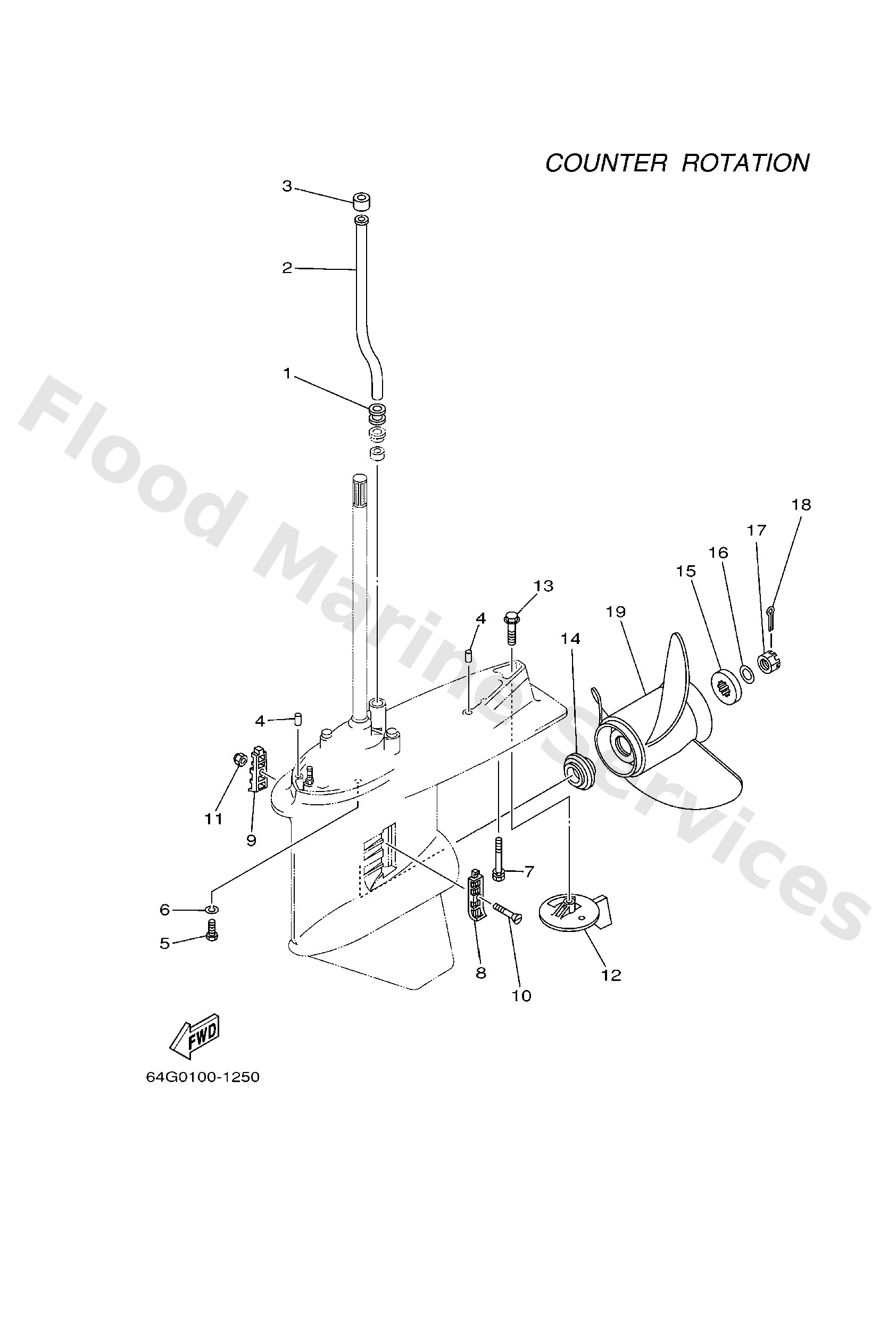

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
6E54436100
L(20.3")
Tube, water
Loading…
↗
3
6E54436500
Damper, water seal 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9707510045
Bolt(64d)
Loading…
↗
6
9299510100
Ybs67-10 washer, spring
Loading…
↗
7
9011910M89
Bolt, with washer
Loading…
↗
8
6J94521400
Cover, water inlet
Loading…
↗
9
6J94521500
Cover, water inlet
Loading…
↗
10
9015205M08
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
6K14537102
Tab-trim
Loading…
↗
13
9010510M00
Bolt, hexagon (663)
Loading…
↗
14
6E54598701
Spacer 1
Loading…
↗
15
6884599701
Spacer 2
Loading…
↗
16
9299018200
Washer (6e5)
Loading…
↗
17
9017118M04
Nut, castle (6e5)
Loading…
↗
18
9149040030
Pin, cotter (663)
Loading…
↗
19
6K1459700198
UR
Propeller (3x15-1/4"x15"-ml)
Loading…
↗
19
6K1459720198
UR
Propeller (3x13-3/4"x21"-ml)
Loading…
↗
19
6K1459740298
UR
Propeller (3x13-3/4"x19"-ml1)
Loading…
↗
19
6K1459780298
UR
Propeller (3x13-3/4"x17"-ml1)
Loading…
↗
19
6R145970A1
UR
Propeller (3X15-1/4"X19"-Ml)
Loading…
↗
19
6R145972A0
UR
Propeller (3X14–7/8”X21”–Ml)
Loading…
↗
19
6R145974A0
UR
Propeller (3X14–1/2”X23”–Ml)
Loading…
↗
19
6R145976A0
UR
Propeller (3X15–1/4”X15”–Ml)
Loading…
↗
19
6R145978A0
UR
Propeller (3X15–1/4”X17”–Ml)
Loading…
↗
