50GETO (2006)
LOWER CASING & DRIVE 4

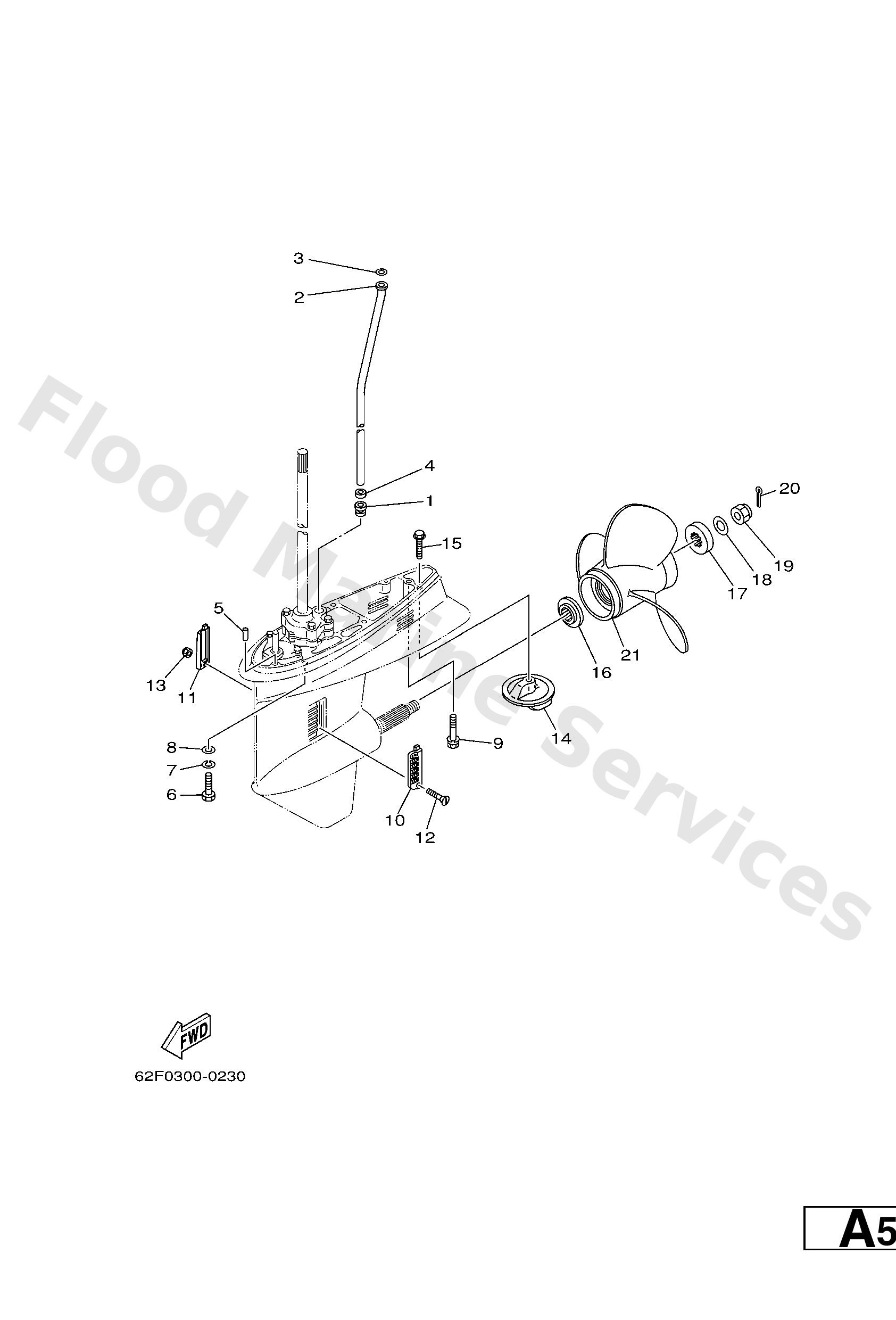

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6634436700
Damper, water seal 3
Loading…
↗
2
6H34436110
L (20.5")
Tube, water
Loading…
↗
3
9020212060
Washer, plate(663)
Loading…
↗
4
9043012072
Gasket
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
9707510040
Bolt, hexagon deep recess
Loading…
↗
7
9299010100
Ybs67-10 washer, spring
Loading…
↗
8
9299010600
Washer, plate
Loading…
↗
9
9011908M84
Bolt, with washer
Loading…
↗
10
6884521402
Cover, water inlet
Loading…
↗
11
6884521502
Cover, water inlet
Loading…
↗
12
9015205M05
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
6794537100
Tab trim
Loading…
↗
15
9010510M67
Bolt, hexagon (663)
Loading…
↗
16
6634598702
Spacer
Loading…
↗
17
6704599702
Spacer
Loading…
↗
18
9299016200
958-58204-00 washer,plain
Loading…
↗
19
9017116011
Nut, castle (663)
Loading…
↗
20
9149040025
Pin, cotter (663)
Loading…
↗
21
69W4594500EL
UR
Propeller (3x11-1/8"x13"-g)
Loading…
↗
21
6634595202EL
UR
Propeller (3x11-3/8x12-g)
Loading…
↗
21
6H54594300EL
UR WITH LIP CUP
Propeller (3x10"x15"-g)
Loading…
↗
21
6H54595800EL
UR WITH LIP CUP
Propeller (3x10-1/4"x14"-g)
Loading…
↗
21
663459300098
UR
Propeller (3x10-1/4"x14"-g)
Loading…
↗
21
663459760098
UR
Propeller (3x10-1/4"x15"-g)
Loading…
↗
21
663459780098
UR
Propeller (3x10-1/4"x16"-g)
Loading…
↗
21
663459706098
UR
Propeller (3x11-3/4"x12"-g)
Loading…
↗
21
663459726098
UR
Propeller (3x12"x11"-g)
Loading…
↗
21
663459746098
UR
Propeller (3x11-1/2"x13"-g)
Loading…
↗
