F150CC (2025)
LOWER CASING & DRIVE 4

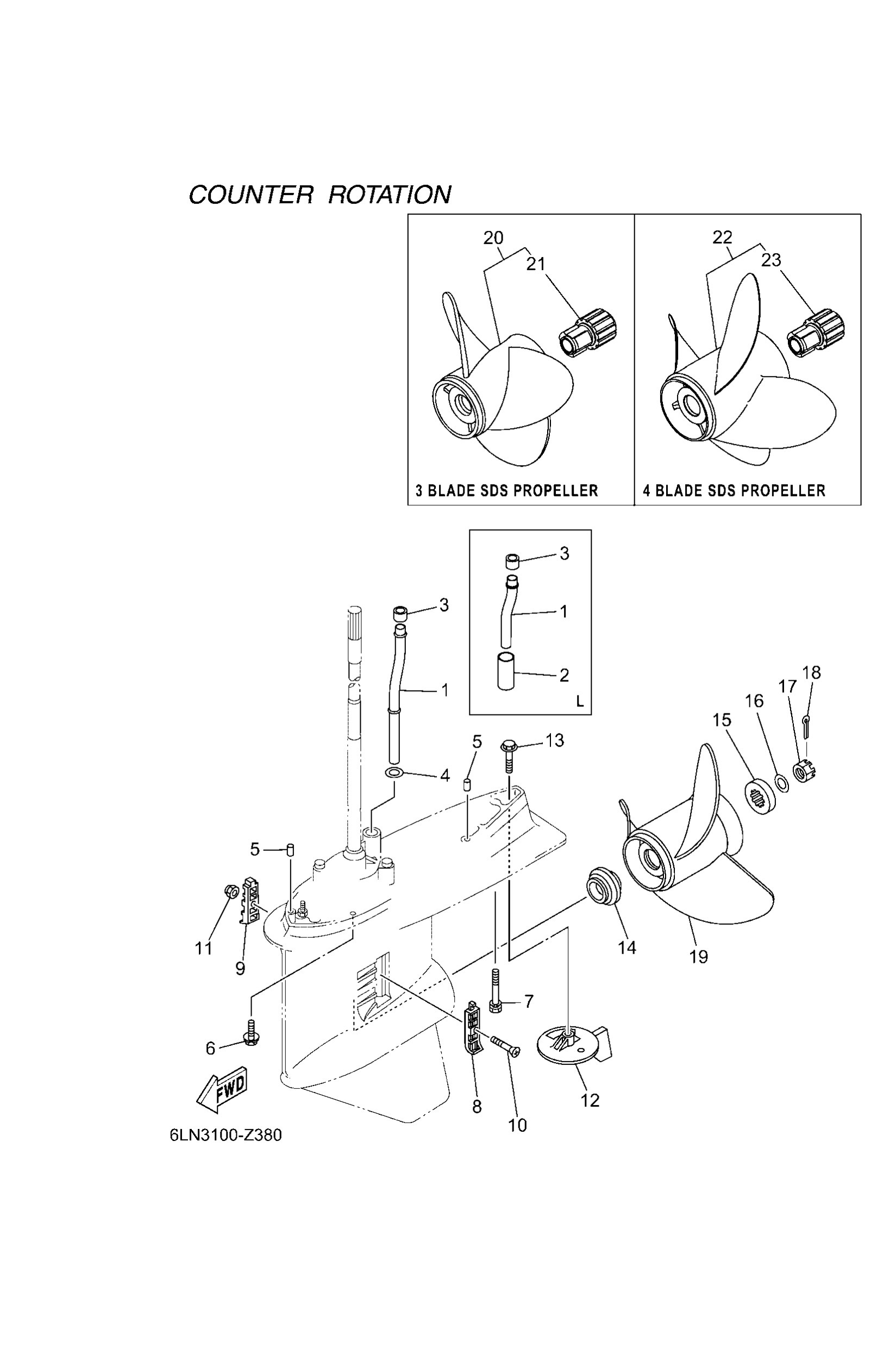

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6DA4436110
L(20.3")
Tube, water 1
Loading…
↗
1
6DA4436100
X(25.2")
Tube, water 1
Loading…
↗
2
9044523002
L(20.3")
Hose
Loading…
↗
3
6E54436501
Damper, water seal 1
Loading…
↗
4
9020216061
X(25.2")
Washer, plate(663)
Loading…
↗
5
9360816M16
Pin, dowel(6t4)
Loading…
↗
6
97E9510645
Bolt, hexagon w/w deep recess
Loading…
↗
7
9011910072
Bolt, with washer
Loading…
↗
8
6J94521400
Cover, water inlet
Loading…
↗
9
6J94521500
Cover, water inlet
Loading…
↗
10
9015205M08
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
6K14537102
Tab-trim
Loading…
↗
13
9010510M00
Bolt, hexagon (663)
Loading…
↗
14
6E54598701
Spacer 1
Loading…
↗
15
6884599701
Spacer 2
Loading…
↗
16
9299018200
Washer (6e5)
Loading…
↗
17
9017118M04
Nut, castle (6e5)
Loading…
↗
18
9149040030
Pin, cotter (663)
Loading…
↗
19
6K14597600
UR
Propeller (3x13-3/8"x23"-ml)
Loading…
↗
19
6K14597201
UR
Propeller (3x13-3/4"x21"-ml)
Loading…
↗
19
6K14597402
UR
Propeller (3x13-3/4"x19"-ml1)
Loading…
↗
19
6K14594500
UR
Propeller (3x14 x19 -ml)
Loading…
↗
19
6K14594700
UR
Propeller (3x14-1/2 x17 -ml)
Loading…
↗
19
6K14597802
UR
Propeller (3x13-3/4"x17"-ml1)
Loading…
↗
20
68G4593020
UR SDS 3 BLADE
Reliance sds (3x14-1/2"x14"-ml
Loading…
↗
20
68G4597020
UR SDS 3 BLADE
Reliance sds (3x14-1/2"x15" ml
Loading…
↗
20
60J4597800
UR SDS 3 BLADE
-
Loading…
↗
20
6CF45D7420
UR SDS 3 BLADE
Propeller (3X14-3/4X25-Tl)
Loading…
↗
20
6CF45D7220
UR SDS 3 BLADE
Propeller (3X14-3/4X24-Tl)
Loading…
↗
20
6CF4597420
UR SDS 3 BLADE
Sws2 w/sds (3x14-3/4 x23-tl)
Loading…
↗
20
6CF4593620
UR SDS 3 BLADE
Sws2 w/sds (3x14-3/4 x22 -tl)
Loading…
↗
20
6CF4597220
UR SDS 3 BLADE
Sws2 w/sds (3x15 x21-tl)
Loading…
↗
20
6CF4593220
UR SDS 3 BLADE
Sws2 w/sds (3x15 x20-tl)
Loading…
↗
20
6CF4597020
UR SDS 3 BLADE
Sws2 w/sds (3x15-1/4 x19-tl)
Loading…
↗
20
6CF4593420
UR SDS 3 BLADE
Sws2 w/sds (3x15-1/4 x18 -tl)
Loading…
↗
20
60J4597600
UR SDS 3 BLADE
-
Loading…
↗
20
60J4597400
UR SDS 3 BLADE
-
Loading…
↗
20
60J4597200
UR SDS 3 BLADE
Propeller (3x14-1/4 x16 -ml)
Loading…
↗
20
60J4597000
UR SDS 3 BLADE
-
Loading…
↗
20
68G4597620
UR SDS 3 BLADE
Reliance sds (3x13-3/4"x21"-ml
Loading…
↗
20
68G4597420
UR SDS 3 BLADE
Reliance sds (3x13-3/4"x19"-ml
Loading…
↗
20
68G4597820
UR SDS 3 BLADE
Reliance sds (3x14-1/4"x18"-ml
Loading…
↗
20
68G4597220
UR SDS 3 BLADE
Reliance sds (3x14-1/4"x17"-ml
Loading…
↗
21
6CE45C8110
Damper rubber, propeller 1
Loading…
↗
22
6CF45B7020
UR SDS 4 BLADE
Sws hs4 sds (ss 4x15"x21"-tl)
Loading…
↗
22
6CF45B7220
UR SDS 4 BLADE
Sws hs4 sds (ss 4x15"x22"-tl)
Loading…
↗
22
6CF45B7420
UR SDS 4 BLADE
Sws hs4 sds (ss 4x15"x23"-tl)
Loading…
↗
