F300DET (2025)
LOWER CASING & DRIVE 4

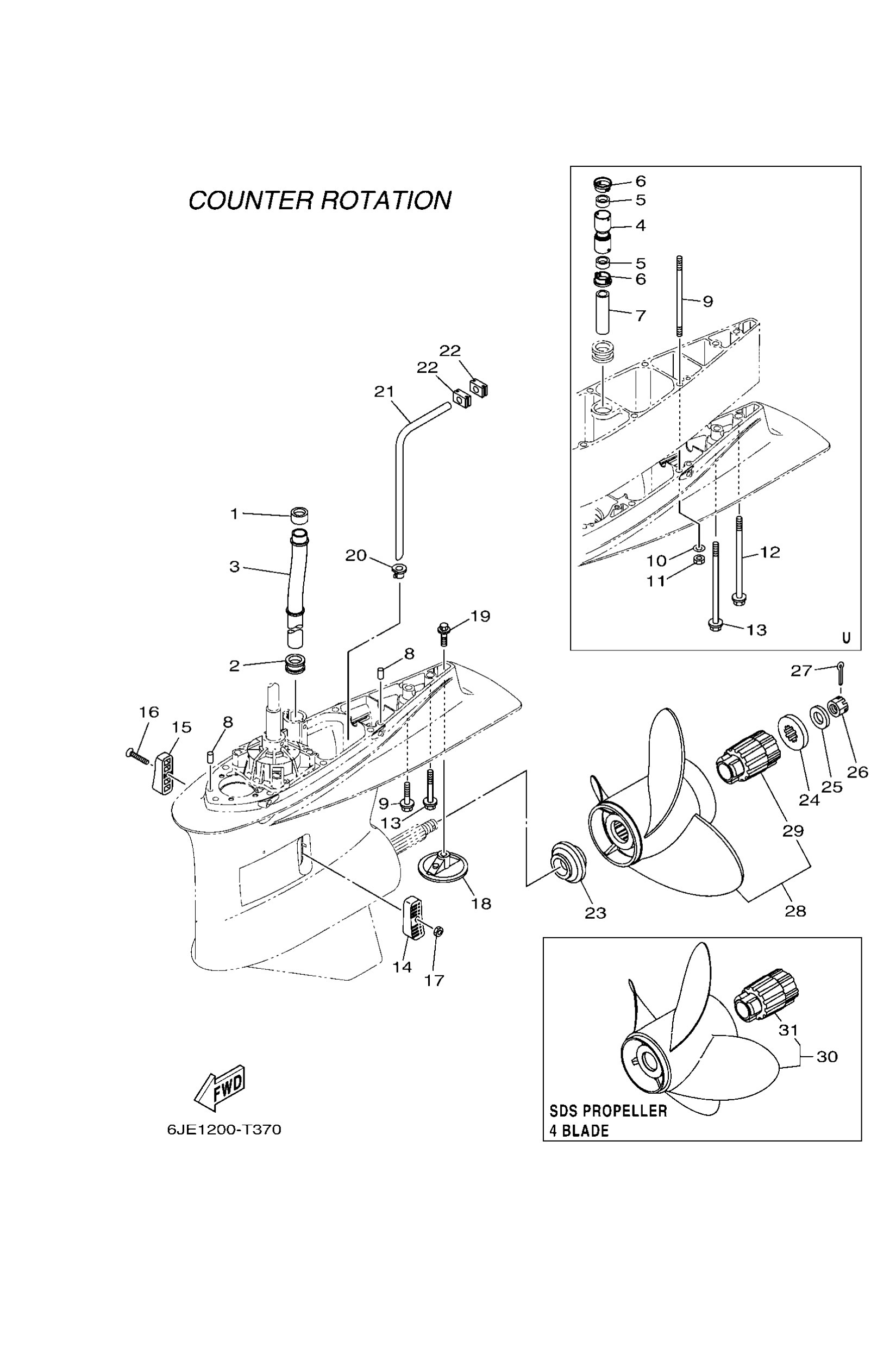

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
5
6AW4436501
U(30.3")
Damper, water seal 1
Loading…
↗
2
6AW4436601
Damper, water seal 2
Loading…
↗
3
6CE4436100
Tube, water 1
Loading…
↗
4
6CE4436200
U(30.3")
Tube, water 2
Loading…
↗
6
6AW4431200
U(30.3")
Cover, water pump housing
Loading…
↗
7
6AW4436300
U(30.3")
Tube, water 3
Loading…
↗
8
9360816M16
Pin, dowel(6t4)
Loading…
↗
9
9011910024
X(25.3")
Bolt, with washer
Loading…
↗
9
9011610067
U(30.3")
Bolt, stud
Loading…
↗
10
9299510600
U(30.3")
Washer, plate
Loading…
↗
11
9538010600
U(30.3")
Nut(624)
Loading…
↗
12
9011910008
U(30.3")
Bolt, with washer
Loading…
↗
13
97E7510570
X(25.3")
Bolt, hexagon w/w deep recess
Loading…
↗
13
9011910009
U(30.3")
Bolt, with washer
Loading…
↗
14
6AW4521400
Cover, water inlet 1
Loading…
↗
15
6AW4521500
Cover, water inlet 2
Loading…
↗
16
9015205003
Screw, countersunk
Loading…
↗
17
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
18
6CE4537300
Anode
Loading…
↗
19
9010510M00
Bolt, hexagon (663)
Loading…
↗
20
6AW4436700
Damper, water seal 3
Loading…
↗
21
6JD4436200
Tube, water 2
Loading…
↗
22
6AW4437601
Grommet, water tube 2
Loading…
↗
23
6AW4598700
Spacer 1
Loading…
↗
24
6AW4599700
Spacer 2
Loading…
↗
25
9020119M01
Washer, plate(6u1)
Loading…
↗
26
9017118M04
Nut, castle (6e5)
Loading…
↗
27
9149040030
Pin, cotter (663)
Loading…
↗
28
6AX4597220
UR SDS 3 BLADE
Sws xl sds (3x16-1/4x17"-xl)
Loading…
↗
28
6AX4597820
UR SDS 3 BLADE
Sws xl sds (3x15-1/4x23"-xl)
Loading…
↗
28
6AX4597620
UR SDS 3 BLADE
Sws xl sds (3x15-1/4x21"-xl)
Loading…
↗
28
6AX4597420
UR SDS 3 BLADE
Sws xl sds (3x15-1/2x19"-xl)
Loading…
↗
28
6AX4597020
UR SDS 3 BLADE
Sws xl sds (3x16-1/4x15"-xl)
Loading…
↗
28
6AX4593020
UR SDS 3 BLADE
Sws xl sds (3x16-1/4 x13 -xl)
Loading…
↗
29
6AW45C8110
Propeller damper rubber assembly
Loading…
↗
30
6AX45B7020
UR SDS 4 BLADE
Sws xl4 sds (4x16-1/8x15"-xl)
Loading…
↗
30
6AX45B7220
UR SDS 4 BLADE
Sws xl4 sds (4x16-1/8x17"-xl)
Loading…
↗
30
6AX45B7620
UR SDS 4 BLADE
Sws xl4-hp sds(4x15-3/8x22"-xl
Loading…
↗
30
6AX45B7420
UR SDS 4 BLADE
Sws xl4-hp sds(4x15-3/8x24"-xl
Loading…
↗
