Yamaha Outboard Parts - LOWER CASING & DRIVE 4 - FL115AET (2012) | Flood Marine

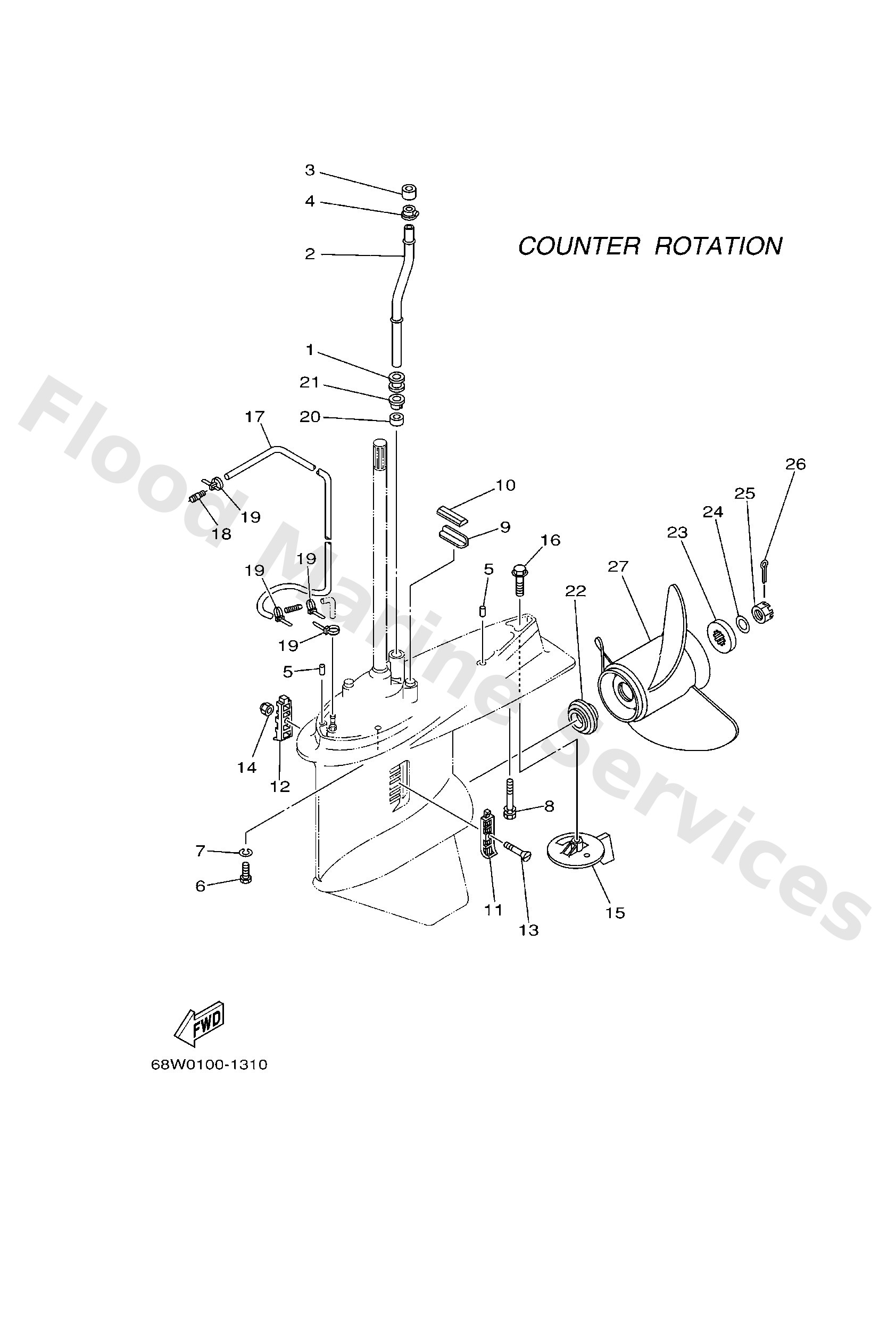

Diagram: LOWER CASING & DRIVE 4

Diagram

Parts List

Reference
Description
Price


1
6E54436600
Damper, water seal 2
Loading…

↗
2
68V4436130 X(25.3")
Tube, water 1
Loading…

↗
3
6E54436500
Damper, water seal 1
Loading…

↗
4
6E54431200
Cover, water pump housing
Loading…

↗
5
9360812M05
Pin, dowel b (6e5)
Loading…

↗
6
9707510045
Bolt(64d)
Loading…

↗
7
9299510100
Ybs67-10 washer, spring
Loading…

↗
8
9011910M89
Bolt, with washer
Loading…

↗
9
6634537600
Guide, seal damper
Loading…

↗
10
6884537500
Damper, seal 2
Loading…

↗
11
6884521402
Cover, water inlet
Loading…

↗
12
6884521502
Cover, water inlet
Loading…

↗
13
9015205M07
Screw, countersunk
Loading…

↗
14
9018505002
Nut nylon (sus)(ex4)
Loading…

↗
15
6L64537100
Tab-trim
Loading…

↗
16
9010510M00
Bolt, hexagon (663)
Loading…

↗
17
90445076K2
Hose (l1700)
Loading…

↗
18
6E58355800
End, nipple
Loading…

↗
19
9046511M10
Clamp
Loading…

↗
22
63P4598700
Spacer 1
Loading…

↗
23
6884599701
Spacer 2
Loading…

↗
24
9299018200
Washer (6e5)
Loading…

↗
25
9017118M04
Nut, castle (6e5)
Loading…

↗
26
9149040030
Pin, cotter (663)
Loading…

↗
27
6L64593001 UR
Propeller (3x13"x17"-kl)
Loading…

↗
27
6L64597200 UR
Propeller (ss 3x13"x21"-kl)
Loading…

↗
27
6L64597000 UR
Propeller (3x13 x19 -kl)
Loading…

↗
