FL115BET (2020)
LOWER CASING & DRIVE 4

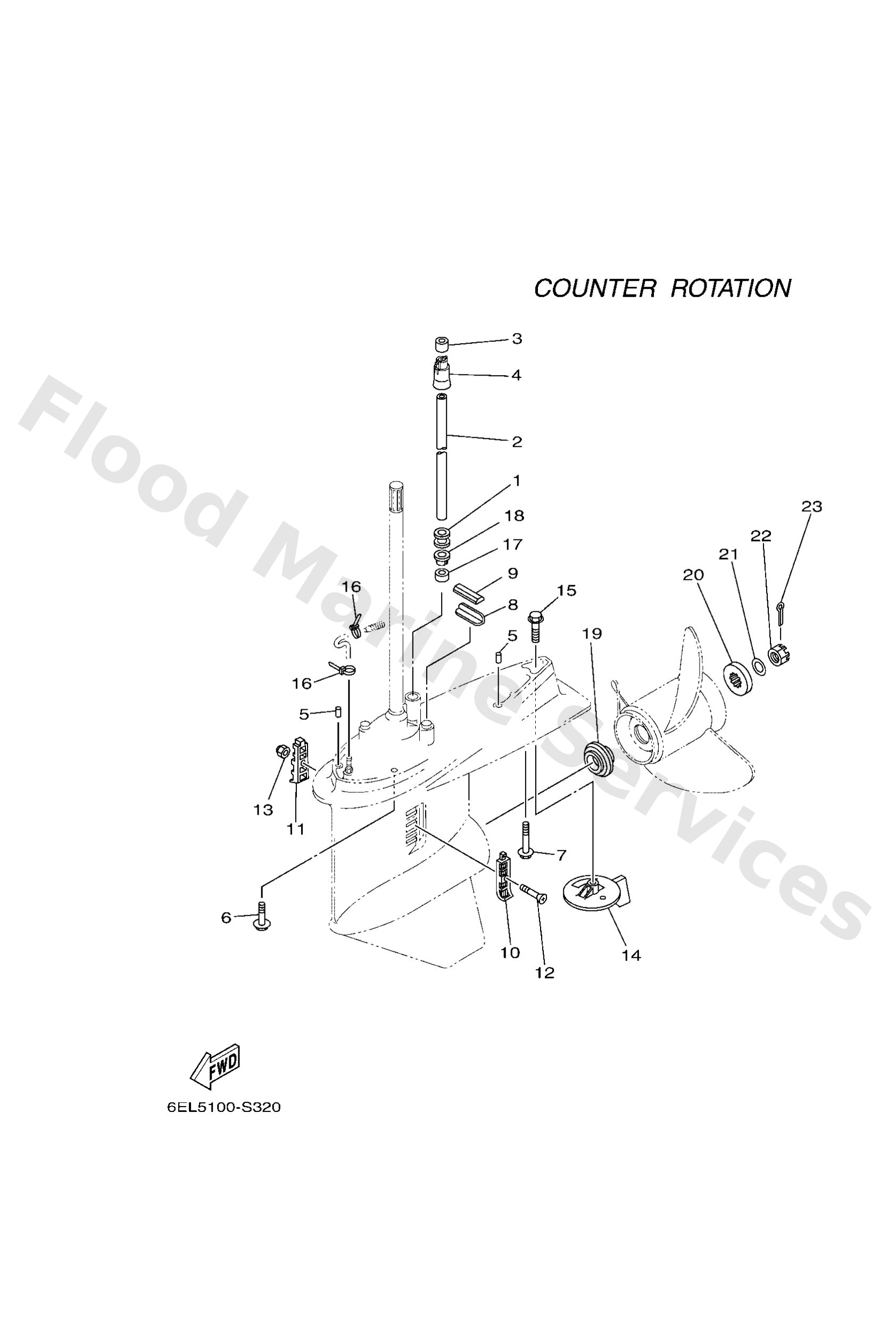

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6E54436600
Damper, water seal 2
Loading…
↗
2
9044016002
X(25.3")
Pipe
Loading…
↗
3
6EK4436501
Damper, water seal 1
Loading…
↗
4
6EK4437900
Guide, water tube
Loading…
↗
5
9360812M05
Pin, dowel b (6e5)
Loading…
↗
6
97E9510545
Bolt, hexagon w/w deep recess
Loading…
↗
7
9011910M89
Bolt, with washer
Loading…
↗
8
6634537600
Guide, seal damper
Loading…
↗
9
6884537500
Damper, seal 2
Loading…
↗
10
6884521402
Cover, water inlet
Loading…
↗
11
6884521502
Cover, water inlet
Loading…
↗
12
9015205M07
Screw, countersunk
Loading…
↗
13
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
14
6L64537100
Tab-trim
Loading…
↗
15
9010510M00
Bolt, hexagon (663)
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
6E54436500
Damper, water seal 1
Loading…
↗
18
6E54431200
Cover, water pump housing
Loading…
↗
19
63P4598700
Spacer 1
Loading…
↗
20
6884599701
Spacer 2
Loading…
↗
21
9299018200
Washer (6e5)
Loading…
↗
22
9017118M04
Nut, castle (6e5)
Loading…
↗
23
9149040030
Pin, cotter (663)
Loading…
↗
