FL200FET (2017)
LOWER CASING & DRIVE 4

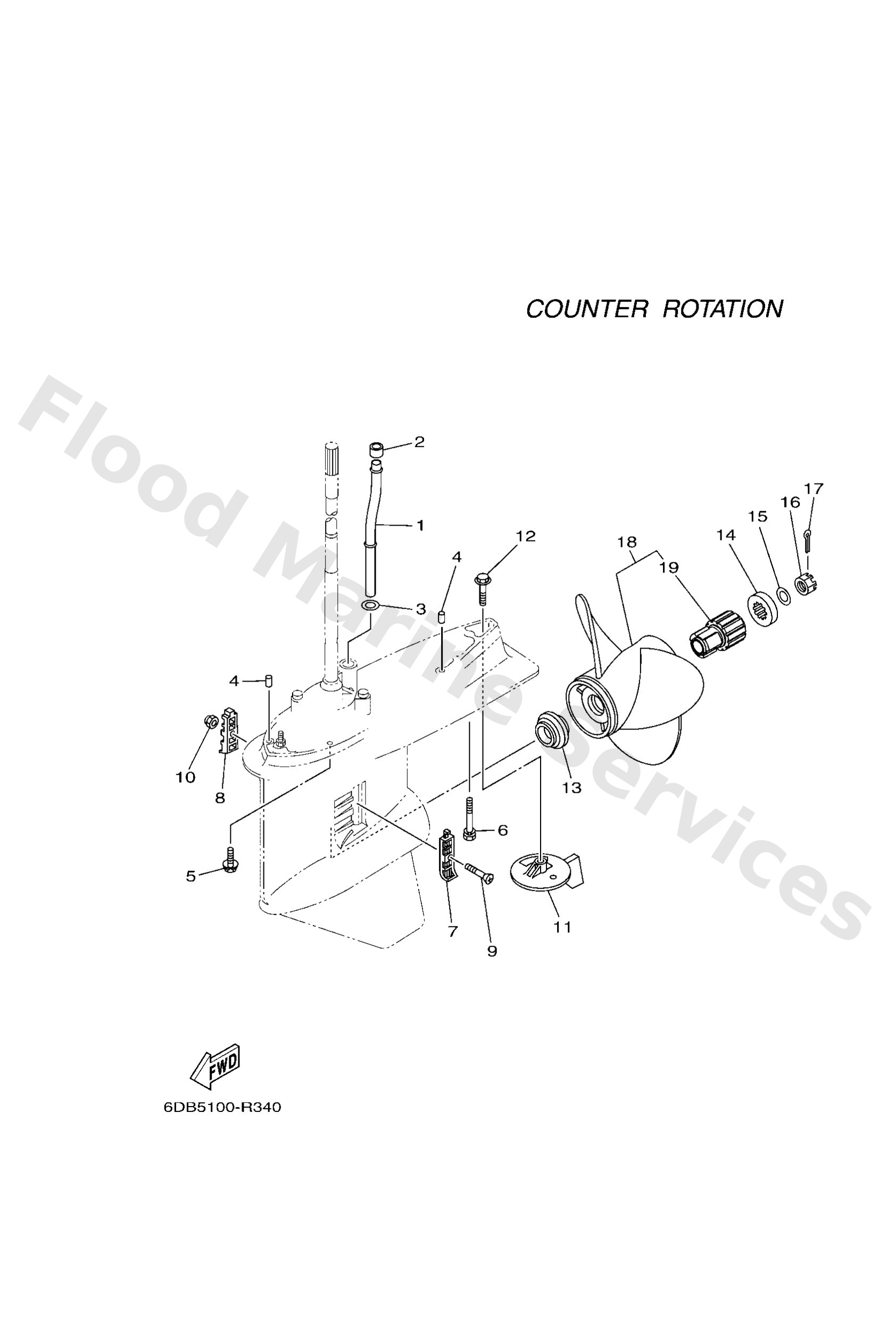

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6DA4436100
X(25.3")
Tube, water 1
Loading…
↗
2
6E54436500
Damper, water seal 1
Loading…
↗
3
9020216061
X(25.3")
Washer, plate(663)
Loading…
↗
4
9360816M16
Pin, dowel(6t4)
Loading…
↗
5
9759510645
Bolt, hexagon w/w deep recess
Loading…
↗
6
9011910MA2
Bolt, with washer
Loading…
↗
7
6J94521400
Cover, water inlet
Loading…
↗
8
6J94521500
Cover, water inlet
Loading…
↗
9
9015205M08
Screw, countersunk
Loading…
↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
11
6K14537102
Tab-trim
Loading…
↗
12
9010510M00
Bolt, hexagon (663)
Loading…
↗
13
63P4598700
Spacer 1
Loading…
↗
14
6884599701
Spacer 2
Loading…
↗
15
9299018200
Washer (6e5)
Loading…
↗
16
9017118M04
Nut, castle (6e5)
Loading…
↗
17
9149040030
Pin, cotter (663)
Loading…
↗
18
68G4597020
UR SDS PROP.
Reliance sds (3x14-1/2"x15" ml
Loading…
↗
18
68G4597220
UR SDS PROP.
Reliance sds (3x14-1/4"x17"-ml
Loading…
↗
18
68G4597820
UR SDS PROP.
Reliance sds (3x14-1/4"x18"-ml
Loading…
↗
18
68G4597420
UR SDS PROP.
Reliance sds (3x13-3/4"x19"-ml
Loading…
↗
18
68G4597620
UR SDS PROP.
Reliance sds (3x13-3/4"x21"-ml
Loading…
↗
19
6CE45C8110
Damper rubber, propeller 1
Loading…
↗
