FL225FET (2014)
LOWER CASING & DRIVE 4

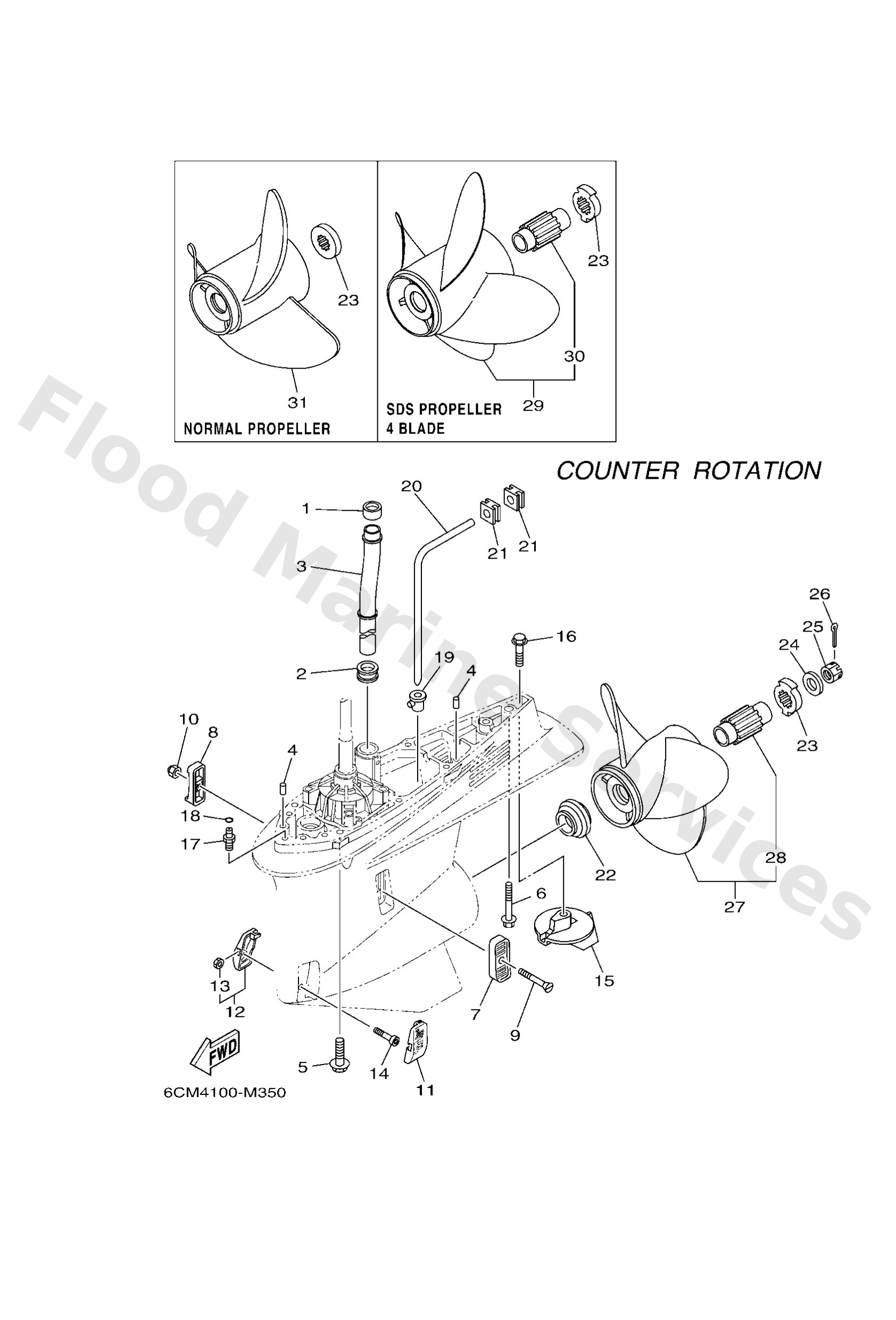

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6AW4436500
Damper, water seal 1
Loading…
↗
2
6AW4436600
Damper, water seal 2
Loading…
↗
3
6CE4436100
Tube, water 1
Loading…
↗
4
9360816M16
Pin, dowel(6t4)
Loading…
↗
5
9011910038
X(25.3")
Bolt, with washer
Loading…
↗
6
9757510570
X(25.3")
Bolt, hexagon w/w deep recess
Loading…
↗
7
6P24521400
Cover, water inlet 1
Loading…
↗
8
6P24521500
Cover, water inlet 2
Loading…
↗
9
9015205M08
Screw, countersunk
Loading…
↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
11
6CE4522400
Cover, water inlet 3
Loading…
↗
12
6CE4522500
Cover, water inlet 4
Loading…
↗
14
9011005039
Bolt, hexagon socket head
Loading…
↗
15
61A4537100
Anode
Loading…
↗
16
9010510M00
Bolt, hexagon (663)
Loading…
↗
17
63P4537800
Nipple, hose
Loading…
↗
18
9321007003
O-ring (11m)
Loading…
↗
19
6D04436700
Damper, water seal 3
Loading…
↗
20
6D04436201
Tube, water 2
Loading…
↗
21
6D04436600
Damper, water seal 2
Loading…
↗
22
69J4598700
Spacer 1
Loading…
↗
23
6CE4599700
FOR SDS PROP.
Spacer 2
Loading…
↗
23
6884599701
AP NORMAL PROP.
Spacer 2
Loading…
↗
24
9299018200
Washer (6e5)
Loading…
↗
25
9017118M04
Nut, castle (6e5)
Loading…
↗
26
9149040030
Pin, cotter (663)
Loading…
↗
27
6CF4597210
UR SDS 3 BLADE
Propeller (3X15"X21"-Tl)
Loading…
↗
27
6CF4593000
UR SDS 3 BLADE
-
Loading…
↗
27
6CF4597010
UR SDS 3 BLADE
Propeller (3X15-1/4"X19"-Tl)
Loading…
↗
27
6CF4597400
UR SDS 3 BLADE
-
Loading…
↗
27
6CF4597600
UR SDS 3 BLADE
-
Loading…
↗
27
6CF4597800
UR SDS 3 BLADE
-
Loading…
↗
28
6CE45C8100
Propeller damper sds gen 1
Loading…
↗
29
6CF45B7400
UR SDS 4 BLADE
Propeller (4X15"X23"-Tl)
Loading…
↗
29
6CF45B7200
UR SDS 4 BLADE
Propeller (4X15"X22"-Tl)
Loading…
↗
29
6CF45B7000
UR SDS 4 BLADE
-
Loading…
↗
31
61B4597400
AP NORMAL PROP.
Propeller (3x14-1/2"x19"-tl)
Loading…
↗
