Yamaha Outboard Parts - LOWER CASING & DRIVE 4 - FL225FET (2019) | Flood Marine

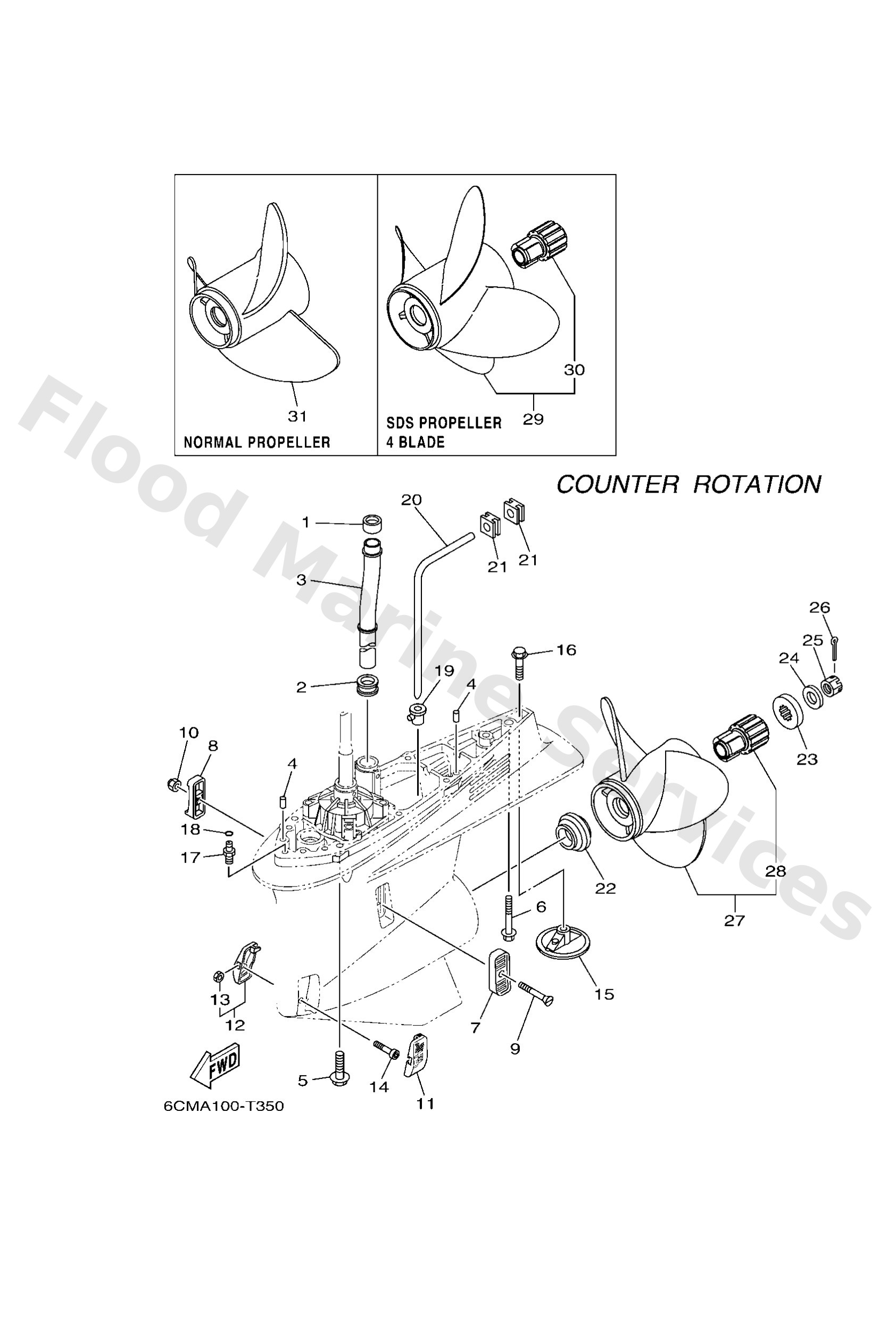

Diagram: LOWER CASING & DRIVE 4

Diagram

Parts List

Reference

Description

Price

1

6AW4436500

Damper, water seal 1

Loading…

2

6AW4436600

Damper, water seal 2

Loading…

3

6CE4436100

Loading…

4

9360816M16

Pin, dowel(6t4)

Loading…

5

9011910038 X(25.3")

Bolt, with washer

Loading…

6

97E7510570 X(25.3")

Bolt, hexagon w/w deep recess

Loading…

7

6P24521400

Cover, water inlet 1

Loading…

8

6P24521500

Cover, water inlet 2

Loading…

9

9015205M08

Screw, countersunk

Loading…

10

9018505002

Nut nylon (sus)(ex4)

Loading…

11

6CE4522400

Cover, water inlet 3

Loading…

12

6CE4522500

Cover, water inlet 4

Loading…

14

9011005039

Bolt, hexagon socket head

Loading…

15

6CE4537300

Loading…

16

9010510M00

Bolt, hexagon (663)

Loading…

17

63P4537800

Loading…

18

9321007003

Loading…

19

6D04436700

Damper, water seal 3

Loading…

20

6D04436201

Loading…

21

6D04436600

Damper, water seal 2

Loading…

22

69J4598700

Loading…

23

6884599701

Loading…

24

9299018200

Loading…

25

9017118M04

Nut, castle (6e5)

Loading…

26

9149040030

Pin, cotter (663)

Loading…

27

6CF4593020 UR SDS 3 BLADE

Sws2 w/sds (3x15-3/4 x13-tl)

Loading…

27

6CF4597620 UR SDS 3 BLADE

Sws2 w/sds (3x15-3/4 x15-tl)

Loading…

27

6CF4597820 UR SDS 3 BLADE

Sws2 w/sds (3x15-1/2 x17-tl)

Loading…

27

6CF4597020 UR SDS 3 BLADE

Sws2 w/sds (3x15-1/4 x19-tl)

Loading…

27

6CF4597220 UR SDS 3 BLADE

Sws2 w/sds (3x15 x21-tl)

Loading…

27

6CF4597420 UR SDS 3 BLADE

Sws2 w/sds (3x14-3/4 x23-tl)

Loading…

28

6CE45C8110

Damper rubber, propeller 1

Loading…

29

6CF45B7020 UR SDS 4 BLADE

Sws hs4 sds (ss 4x15"x21"-tl)

Loading…

29

6CF45B7220 UR SDS 4 BLADE

Sws hs4 sds (ss 4x15"x22"-tl)

Loading…

29

6CF45B7420 UR SDS 4 BLADE

Sws hs4 sds (ss 4x15"x23"-tl)

Loading…

31

61B4597400 AP NORMAL PROP.

Propeller (3x14-1/2"x19"-tl)

Loading…
