FL250BET (2010)
LOWER CASING & DRIVE 4

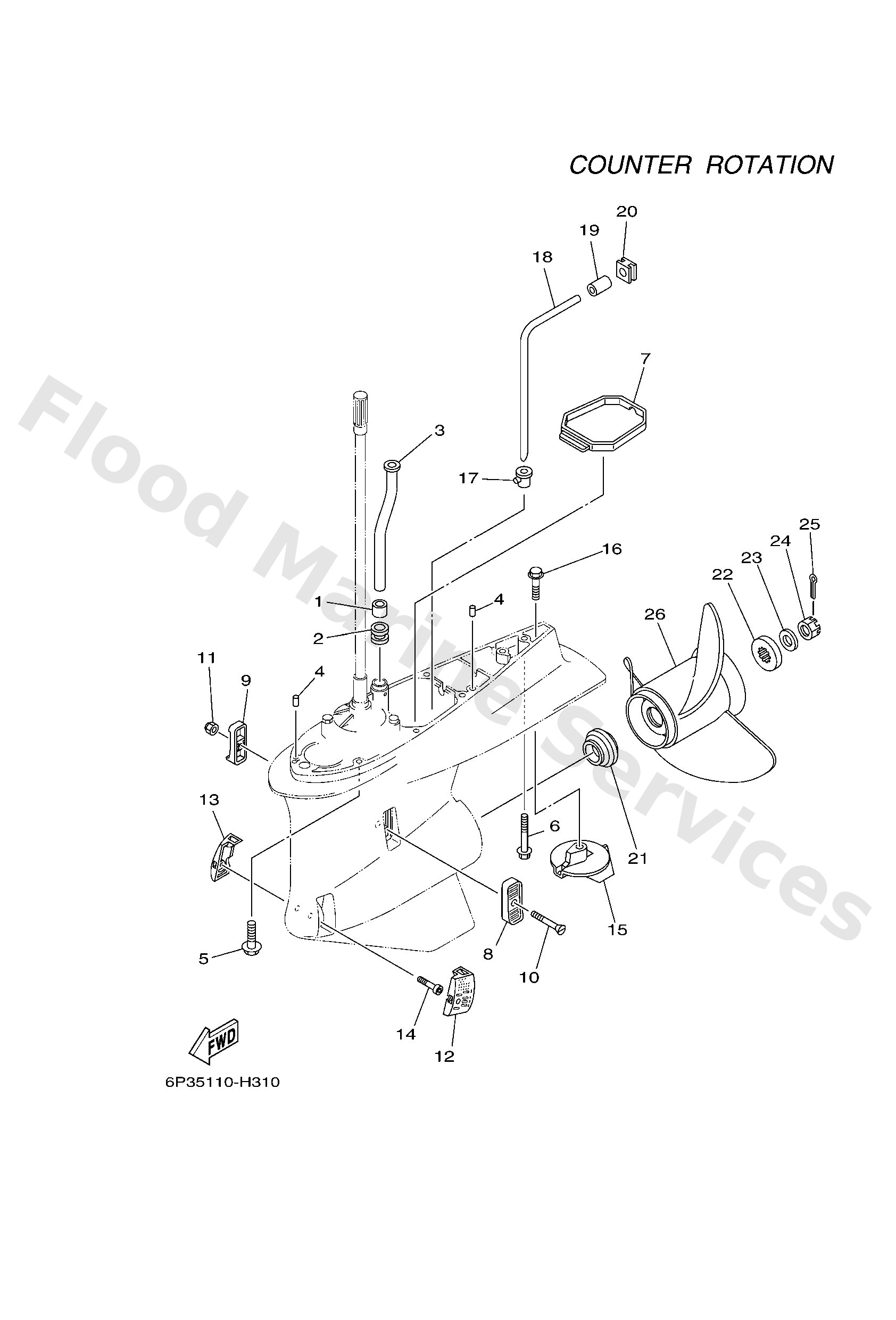

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6E54436500
Damper, water seal 1
Loading…
↗
2
6E54436600
Damper, water seal 2
Loading…
↗
3
69J4436110
U(30.3")
Tube, water 1
Loading…
↗
3
69J4436100
X(25.3")
Tube, water 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9011910038
X(25.3")
Bolt, with washer
Loading…
↗
6
9011910MA2
X(25.3")
Bolt, with washer
Loading…
↗
6
9011910008
U(30.3")
Bolt, with washer
Loading…
↗
7
6D04537500
Damper, seal
Loading…
↗
8
6P24521400
Cover, water inlet 1
Loading…
↗
9
6P24521500
Cover, water inlet 2
Loading…
↗
10
9015205M08
Screw, countersunk
Loading…
↗
11
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
12
6P24522400
Cover, water inlet 3
Loading…
↗
13
6P24522500
Cover, water inlet 4
Loading…
↗
14
9011005039
Bolt, hexagon socket head
Loading…
↗
15
61A4537100
Anode
Loading…
↗
16
9010510M00
Bolt, hexagon (663)
Loading…
↗
17
6D04436700
Damper, water seal 3
Loading…
↗
18
6D04436201
Tube, water 2
Loading…
↗
19
6D04436500
Damper, water seal 1
Loading…
↗
20
6D04436600
Damper, water seal 2
Loading…
↗
21
69J4598700
Spacer 1
Loading…
↗
22
6884599701
Spacer 2
Loading…
↗
23
9299018200
Washer (6e5)
Loading…
↗
24
9017118M04
Nut, castle (6e5)
Loading…
↗
25
9149040030
Pin, cotter (663)
Loading…
↗
26
6BS45B7400
UR
Propeller (4X15"X23"-Tl)
Loading…
↗
26
6BS45B7200
UR
Propeller (4X15"X22"-Tl)
Loading…
↗
26
6BS45B7000
UR
Propeller (4X15"X21"-Tl)
Loading…
↗
26
6D14597800
UR
Propeller (3X15-1/2"X17"-Tl)
Loading…
↗
26
6D14597200
UR
Propeller (3X15"X21"-Tl)
Loading…
↗
26
6D14597000
UR
Propeller (3X15-1/4"X19"-Tl)
Loading…
↗
26
6R145978A0
UR
Propeller (3X15–1/4”X17”–Ml)
Loading…
↗
26
6R145976A0
UR
Propeller (3X15–1/4”X15”–Ml)
Loading…
↗
26
6R145974A0
UR
Propeller (3X14–1/2”X23”–Ml)
Loading…
↗
26
6R145972A0
UR
Propeller (3X14–7/8”X21”–Ml)
Loading…
↗
26
6R145970A1
UR
Propeller (3X15-1/4"X19"-Ml)
Loading…
↗
26
61B459780098
UR
Propeller (3x5"x17"-tl)
Loading…
↗
26
61B459740098
UR
Propeller (3x14-1/2"x19"-tl)
Loading…
↗
26
61B459720098
UR
Propeller (ss 3x14-1/2"x21"-tl
Loading…
↗
26
6K1459780298
UR
Propeller (3x13-3/4"x17"-ml1)
Loading…
↗
26
6K1459740298
UR
Propeller (3x13-3/4"x19"-ml1)
Loading…
↗
26
6K1459720198
UR
Propeller (3x13-3/4"x21"-ml)
Loading…
↗
26
6K1459700198
UR
Propeller (3x15-1/4"x15"-ml)
Loading…
↗
