FL350AET (2009)
LOWER CASING & DRIVE 4

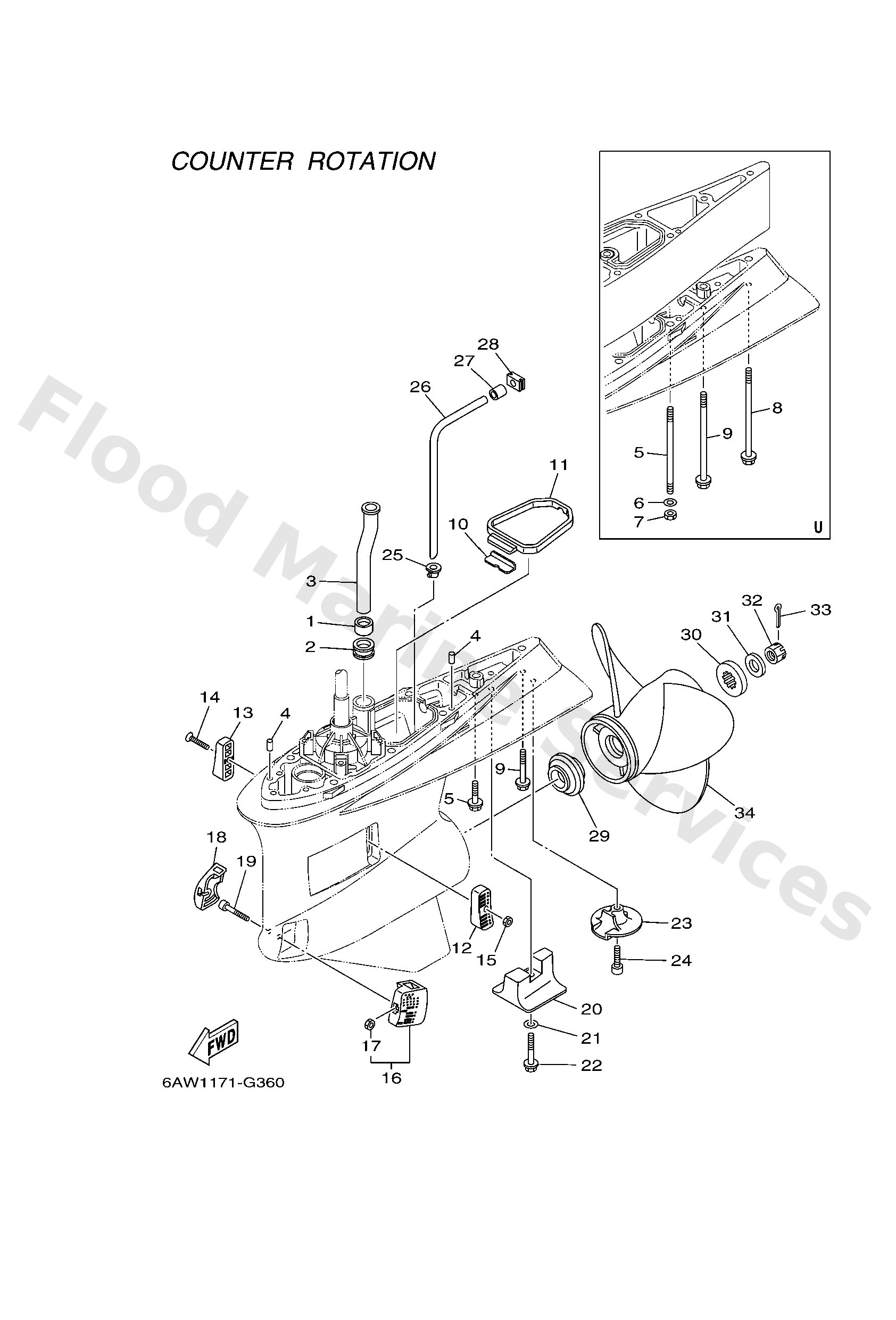

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6AW4436500
Damper, water seal 1
Loading…
↗
2
6AW4436600
Damper, water seal 2
Loading…
↗
3
6AW4436110
U(30.1")
Tube, water 1
Loading…
↗
3
6AW4436100
X(25.1")
Tube, water 1
Loading…
↗
4
9360812M05
Pin, dowel b (6e5)
Loading…
↗
5
9011910038
X(25.1")
Bolt, with washer
Loading…
↗
5
9011610041
U(30.1")
Bolt, stud
Loading…
↗
6
9020110048
U(30.1")
Washer, plate
Loading…
↗
7
9017010009
U(30.1")
Nut
Loading…
↗
8
9011910008
U(30.1")
Bolt, with washer
Loading…
↗
9
9011910009
U(30.1")
Bolt, with washer
Loading…
↗
9
9757510570
X(25.1")
Bolt, hexagon w/w deep recess
Loading…
↗
10
61A453760094
Guide, seal damper
Loading…
↗
11
6AW4537500
Damper, seal
Loading…
↗
12
6AW4521400
Cover, water inlet 1
Loading…
↗
13
6AW4521500
Cover, water inlet 2
Loading…
↗
14
9015205003
Screw, countersunk
Loading…
↗
15
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
16
6AW4522400
Cover, water inlet 3
Loading…
↗
18
6AW4522500
Cover, water inlet 4
Loading…
↗
19
9011005050
Bolt, hexagon socket head
Loading…
↗
20
6AW4537300
Anode
Loading…
↗
21
9299010300
Washer
Loading…
↗
22
9010510257
Bolt, flange
Loading…
↗
23
6AW4561900
Cap
Loading…
↗
24
9011010018
Bolt, hexagon socket head
Loading…
↗
25
6AW4436700
Damper, water seal 3
Loading…
↗
26
6AW4436200
Tube, water 2
Loading…
↗
27
6AW4437500
Grommet, water tube 1
Loading…
↗
28
6AW4437600
Grommet, water tube 2
Loading…
↗
29
6AW4598700
Spacer 1
Loading…
↗
30
6AW4599700
Spacer 2
Loading…
↗
31
9020119M01
Washer, plate(6u1)
Loading…
↗
32
9017118M04
Nut, castle (6e5)
Loading…
↗
33
9149040030
Pin, cotter (663)
Loading…
↗
34
6AX4597000
UR
Propeller (3X16-1/4"X17"-Xl)
Loading…
↗
34
6AX4597200
UR
Propeller (3X16-1/4"X19"-Xl)
Loading…
↗
34
6AX4597400
UR
Propeller (3X15-1/2"X21"-Xl)
Loading…
↗
34
6AX4597600
UR
Propeller (3X15-1/4"X23"-Xl)
Loading…
↗
34
6AX4597800
UR
Propeller (3X15-1/4"X25"-Xl)
Loading…
↗
