LF200SA (2023)
LOWER CASING & DRIVE 4

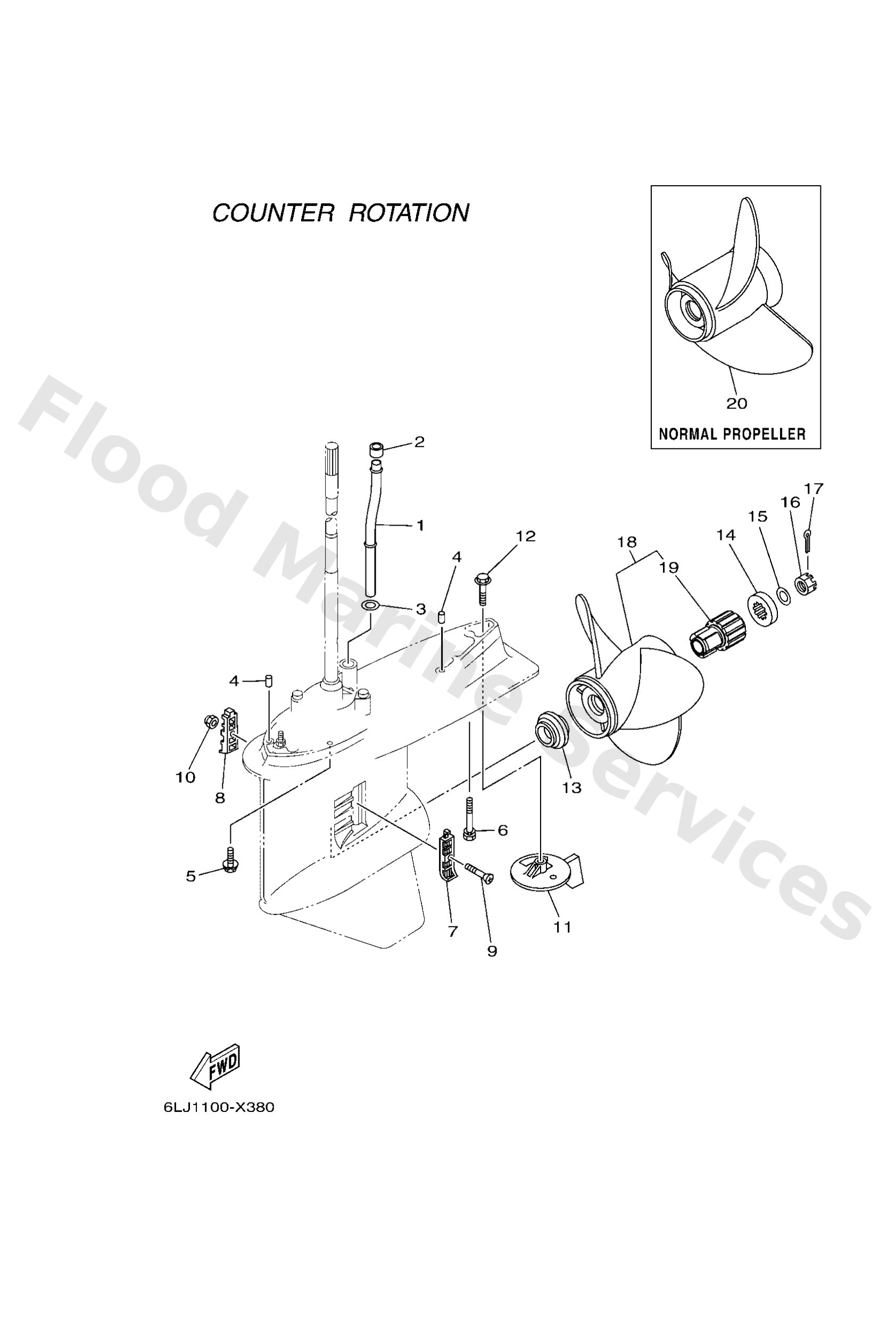

Diagram: LOWER CASING & DRIVE 4
Parts List
Reference
Description
Price
1
6DA4436100
X(25.2")
Tube, water 1
Loading…
↗
2
6E54436501
Damper, water seal 1
Loading…
↗
3
9020216061
X(25.2")
Washer, plate(663)
Loading…
↗
4
9360816M16
Pin, dowel(6t4)
Loading…
↗
5
97E9510645
Bolt, hexagon w/w deep recess
Loading…
↗
6
9011910072
Bolt, with washer
Loading…
↗
7
6J94521400
Cover, water inlet
Loading…
↗
8
6J94521500
Cover, water inlet
Loading…
↗
9
9015205M08
Screw, countersunk
Loading…
↗
10
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
11
6K14537102
Tab-trim
Loading…
↗
12
9010510M00
Bolt, hexagon (663)
Loading…
↗
13
63P4598700
Spacer 1
Loading…
↗
14
6884599701
Spacer 2
Loading…
↗
15
9299018200
Washer (6e5)
Loading…
↗
16
9017118M04
Nut, castle (6e5)
Loading…
↗
17
9149040030
Pin, cotter (663)
Loading…
↗
18
68G4597420
UR SDS PROP.
Reliance sds (3x13-3/4"x19"-ml
Loading…
↗
18
68G4597820
UR SDS PROP.
Reliance sds (3x14-1/4"x18"-ml
Loading…
↗
18
68G4597220
UR SDS PROP.
Reliance sds (3x14-1/4"x17"-ml
Loading…
↗
18
60J4597600
UR SDS PROP.
Propeller (3X14-1/4"X20"-Ml)
Loading…
↗
18
68G4597020
UR SDS PROP.
Reliance sds (3x14-1/2"x15" ml
Loading…
↗
18
60J4597800
UR SDS PROP.
Propeller (3X14-1/4"X22"-Ml)
Loading…
↗
18
60J4597400
UR SDS PROP.
Propeller (3X14-1/4"X18"-Ml)
Loading…
↗
18
60J4597200
UR SDS PROP.
Propeller (3x14-1/4 x16 -ml)
Loading…
↗
18
60J4597000
UR SDS PROP.
Propeller (3X14-1/4"X14"-Ml)
Loading…
↗
18
68G4593020
UR SDS PROP.
Reliance sds (3x14-1/2"x14"-ml
Loading…
↗
18
6CF4597220
UR SDS PROP.
Sws2 w/sds (3x15 x21-tl)
Loading…
↗
18
6CF4597420
UR SDS PROP.
Sws2 w/sds (3x14-3/4 x23-tl)
Loading…
↗
18
6CF4593620
UR SDS PROP.
Sws2 w/sds (3x14-3/4 x22 -tl)
Loading…
↗
18
6CF4593220
UR SDS PROP.
Sws2 w/sds (3x15 x20-tl)
Loading…
↗
18
6CF4597020
UR SDS PROP.
Sws2 w/sds (3x15-1/4 x19-tl)
Loading…
↗
18
6CF4593420
UR SDS PROP.
Sws2 w/sds (3x15-1/4 x18 -tl)
Loading…
↗
18
68G4597620
UR SDS PROP.
Reliance sds (3x13-3/4"x21"-ml
Loading…
↗
19
6CE45C8110
Damper rubber, propeller 1
Loading…
↗
20
6K14594700
UR NORMAL PROP.
Propeller (3x14-1/2 x17 -ml)
Loading…
↗
20
6K14597802
UR NORMAL PROP.
Propeller (3x13-3/4"x17"-ml1)
Loading…
↗
20
6K14594500
UR NORMAL PROP.
Propeller (3x14 x19 -ml)
Loading…
↗
20
6K14597402
UR NORMAL PROP.
Propeller (3x13-3/4"x19"-ml1)
Loading…
↗
20
6K14597201
UR NORMAL PROP.
Propeller (3x13-3/4"x21"-ml)
Loading…
↗
20
6K14597600
UR NORMAL PROP.
Propeller (3x13-3/8"x23"-ml)
Loading…
↗
