XF375NSA (2018)
LOWER CASING & DRIVE 5

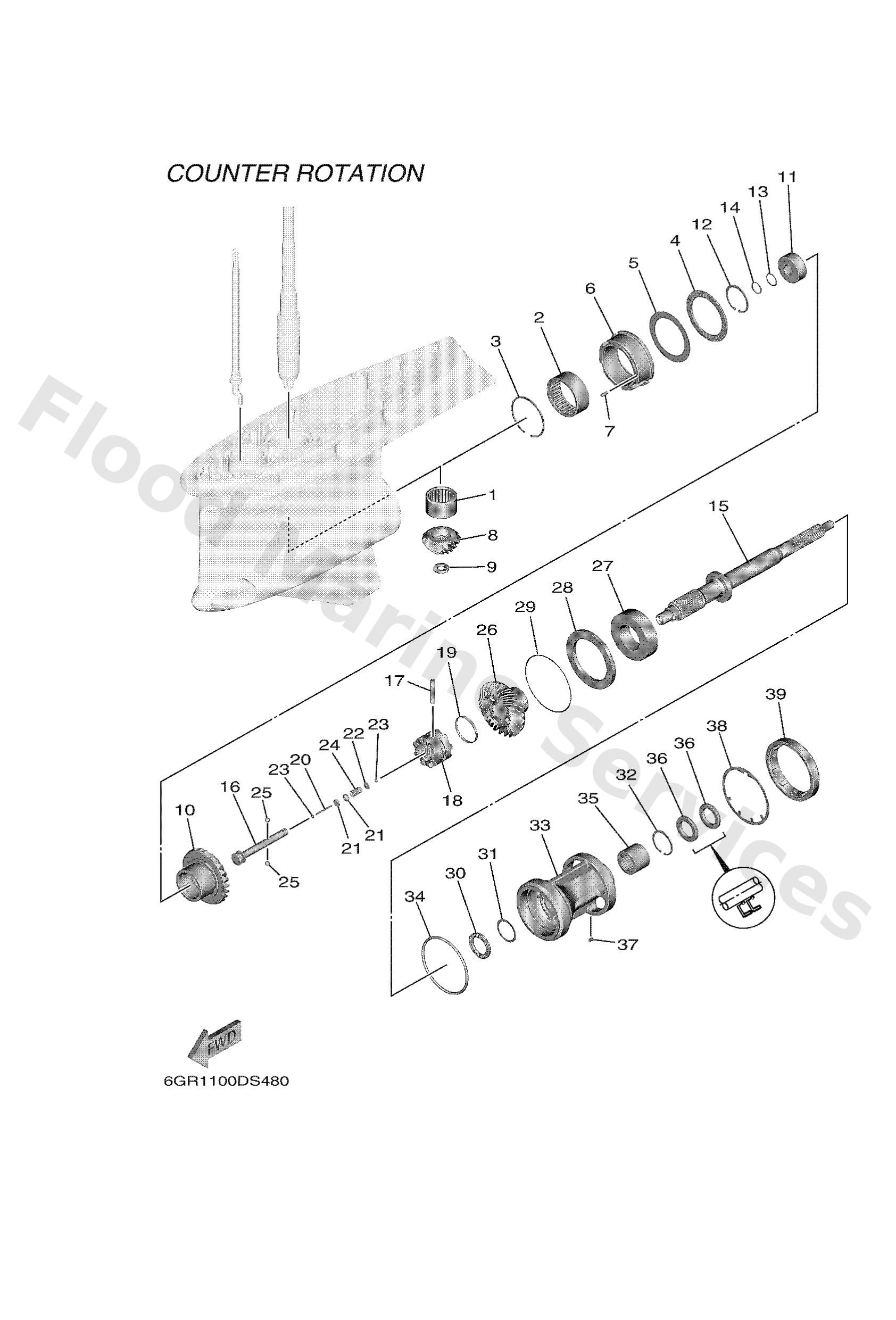

Diagram: LOWER CASING & DRIVE 5
Parts List
Reference
Description
Price
1
93311944A0
Bearing
Loading…
↗
2
93311675A1
Bearing
Loading…
↗
3
9345092171
Circlip
Loading…
↗
4
9334069012
Bearing
Loading…
↗
5
6GR4556700
UR
Shim (t:2.00mm)
Loading…
↗
5
6GR4556710
UR
Shim (t:2.03mm)
Loading…
↗
5
6GR4556720
UR
Shim (t:2.06mm)
Loading…
↗
5
6GR4556730
UR
Shim (t:2.09mm)
Loading…
↗
5
6GR4556740
UR
Shim (t:2.12mm)
Loading…
↗
5
6GR4556750
UR
Shim (t:2.15mm)
Loading…
↗
5
6GR4556760
UR
Shim (t:2.18mm)
Loading…
↗
5
6GR4556770
UR
Shim (t:2.21mm)
Loading…
↗
6
6GR4582400
Adapter
Loading…
↗
7
9360616117
Pin, Dowel
Loading…
↗
8
6GR4555100
Pinion
Loading…
↗
9
9017018009
Nut
Loading…
↗
10
6GS4556100
Gear 1
Loading…
↗
11
9339000033
Bearing
Loading…
↗
12
9900962500
Circlip(mf1)
Loading…
↗
13
90201253K0
Washer, plate(59w)
Loading…
↗
14
9344025020
Circlip
Loading…
↗
15
6GS4561100
Shaft, propeller
Loading…
↗
16
6GR4563400
Slide, shift
Loading…
↗
17
6GR4563200
Pin, cross
Loading…
↗
18
6GR4563100
Clutch, dog
Loading…
↗
19
6GR4563300
Ring, cross pin
Loading…
↗
20
6H14566800
Shaft, free 1
Loading…
↗
21
61A4563500
Plunger, shift
Loading…
↗
22
9020102M00
Washer, plate(61a)
Loading…
↗
23
9018302M03
Nut, spring (6h1)
Loading…
↗
24
9050110M77
Spring, compression(61a)
Loading…
↗
25
9350104011
Ball
Loading…
↗
26
6GS4557100
Gear
Loading…
↗
27
93332000B2
Bearing
Loading…
↗
28
6GR4557600
Washer, thrust 2
Loading…
↗
29
6GR4557700
UR
Shim (t:0.10mm)
Loading…
↗
29
6GR4557710
UR
Shim (t:0.12mm)
Loading…
↗
29
6GR4557720
UR
Shim (t:0.15mm)
Loading…
↗
29
6GR4557730
UR
Shim (t:0.18mm)
Loading…
↗
29
6GR4557740
UR
Shim (t:0.30mm)
Loading…
↗
29
6GR4557750
UR
Shim (t:0.40mm)
Loading…
↗
29
6GR4557760
UR
Shim (t:0.50mm)
Loading…
↗
30
93341440U5
Bearing, thrust (6k0)
Loading…
↗
31
6K14557801
UR
Shim (t:0.10mm)
Loading…
↗
31
6K14557810
UR
Shim (t:0.12mm)
Loading…
↗
31
6K14557820
UR
Shim (t:0.15mm)
Loading…
↗
31
6K14557830
UR
Shim (t:0.18mm)
Loading…
↗
31
6K14557840
UR
Shim (t:0.30mm)
Loading…
↗
31
6K14557850
UR
Shim (t:0.40mm)
Loading…
↗
31
6K14557860
UR
Shim (t:0.50mm)
Loading…
↗
32
9900955500
Circlip
Loading…
↗
33
6GS4533200
Housing, bearing
Loading…
↗
34
9321126001
O-ring
Loading…
↗
35
93311737A2
Bearing
Loading…
↗
36
9310137001
Oil seal
Loading…
↗
37
9028205008
Key, straight
Loading…
↗
38
6GR4538300
Washer, claw
Loading…
↗
39
6GR4538400
Nut
Loading…
↗
