2BMH (2003)
LOWER CASING. DRIVE

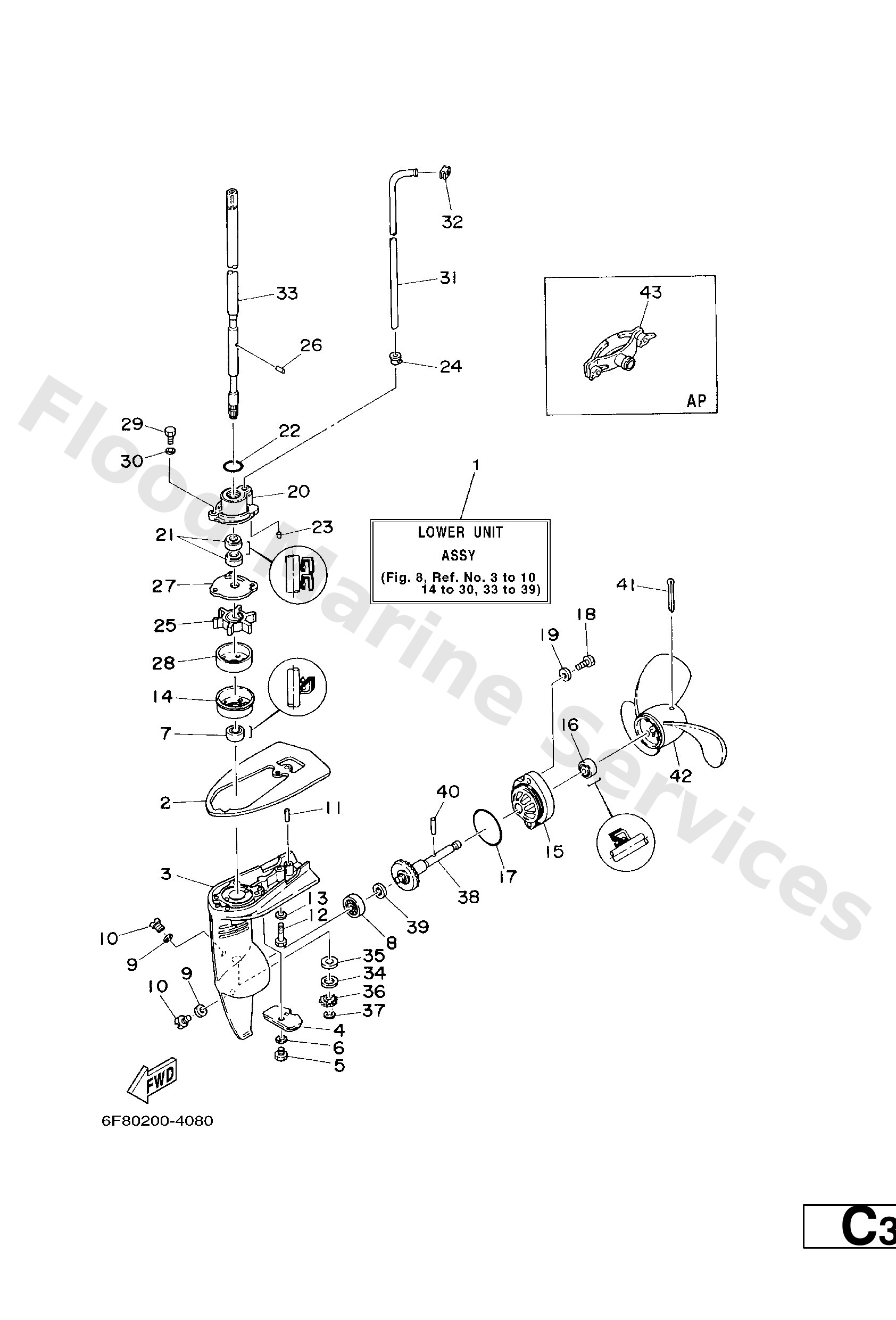

Diagram: LOWER CASING. DRIVE
Parts List
Reference
Description
Price
1
6A1−45300−03−4D
Lower unit assembly
Loading…
↗
2
6A1−45181−00−4D
Plate
Loading…
↗
3
6A1−45311−02−4D
Casing, Lower
Loading…
↗
4
6L5−45251−03
Anode
Loading…
↗
5
95895−06012
Bolt, flange deep recess
Loading…
↗
6
92990−06300
Washer, tooth
Loading…
↗
7
93103−11051
Oil seal (11x21x8-646)
Loading…
↗
8
93306−00001
Brg,r-b 6000 26mm 19g ky
Loading…
↗
9
90430−08020
Gasket
Loading…
↗
10
90340−08002
Plug, straight screw
Loading…
↗
11
93605−18M04
Pin, dowel b (6a1)
Loading…
↗
12
97095−06030
Bolt(jf7)
Loading…
↗
13
92995−06600
Washer, plain (646)
Loading…
↗
14
6A1−44325−00
Protector, oil seal
Loading…
↗
15
6A1−45361−01−4D
Cap, lower casing
Loading…
↗
16
93103−10052
Oil seal (10x21x10-646)
Loading…
↗
17
93210−42101
O-ring (183)
Loading…
↗
18
97090−06014
Bolt(gj3)
Loading…
↗
19
92990−06600
Washer, plain (646)
Loading…
↗
20
6A1−44312−01−94
Cover,water pump housing
Loading…
↗
21
93101−11M44
Oil seal(6a1)
Loading…
↗
22
93210−19123
O-ring (646)
Loading…
↗
23
93604−09068
Pin,dowel (646)
Loading…
↗
24
646−44366−01
Damper, water seal 2
Loading…
↗
25
646−44352−01
Impeller
Loading…
↗
26
93604−09066
Pin, dowel
Loading…
↗
27
646−44323−00
Outer plate,cartridge
Loading…
↗
28
646−44322−00
Insert, cartridge
Loading…
↗
29
97095−05016
Bolt(6a1)
Loading…
↗
30
92995−05600
Washer, plain (646)
Loading…
↗
31
6A1−44361−00
Tube, water
Loading…
↗
32
646−44365−00
Damper, water seal 1
Loading…
↗
33
6A1−45510−01
Drive shaft assembly
Loading…
↗
34
90201−11M49
Washer, plate (6e0)
Loading…
↗
35
646−45534−00−03
UR
Shim (T)0.30Mm)
Loading…
↗
35
646−45534−00−04
UR
Shim (T)0.40Mm)
Loading…
↗
35
646−45534−00−05
UR
Shim (T)0.50Mm)
Loading…
↗
36
646−45551−00
Pinion
Loading…
↗
37
99001−06600
Circlip(53l)
Loading…
↗
38
646−45560−00
Gear
Loading…
↗
39
646−45567−00−03
UR
Shim (t:0.30mm)
Loading…
↗
39
646−45567−00−04
UR
Shim (t:0.40mm)
Loading…
↗
39
646−45567−00−05
UR
Shim (t:0.50mm)
Loading…
↗
40
90250−03M10
Pin, straight(6a1)
Loading…
↗
41
91490−30040
Pin, cotter (am5)
Loading…
↗
42
6A1−45943−00
UR
Propeller assembly (3x7-1/4"x4"-a)
Loading…
↗
42
646−45942−01−EL
UR
Propeller (3x7-1/4 x5-1/2 -a)
Loading…
↗
42
646−45944−01−EL
UR
Propeller (3x7-1/4 x4-1/2 -a)
Loading…
↗
43
646−28193−00
AP
Plug, Water Check
Loading…
↗
