3AMH (2002)
LOWER CASING. DRIVE

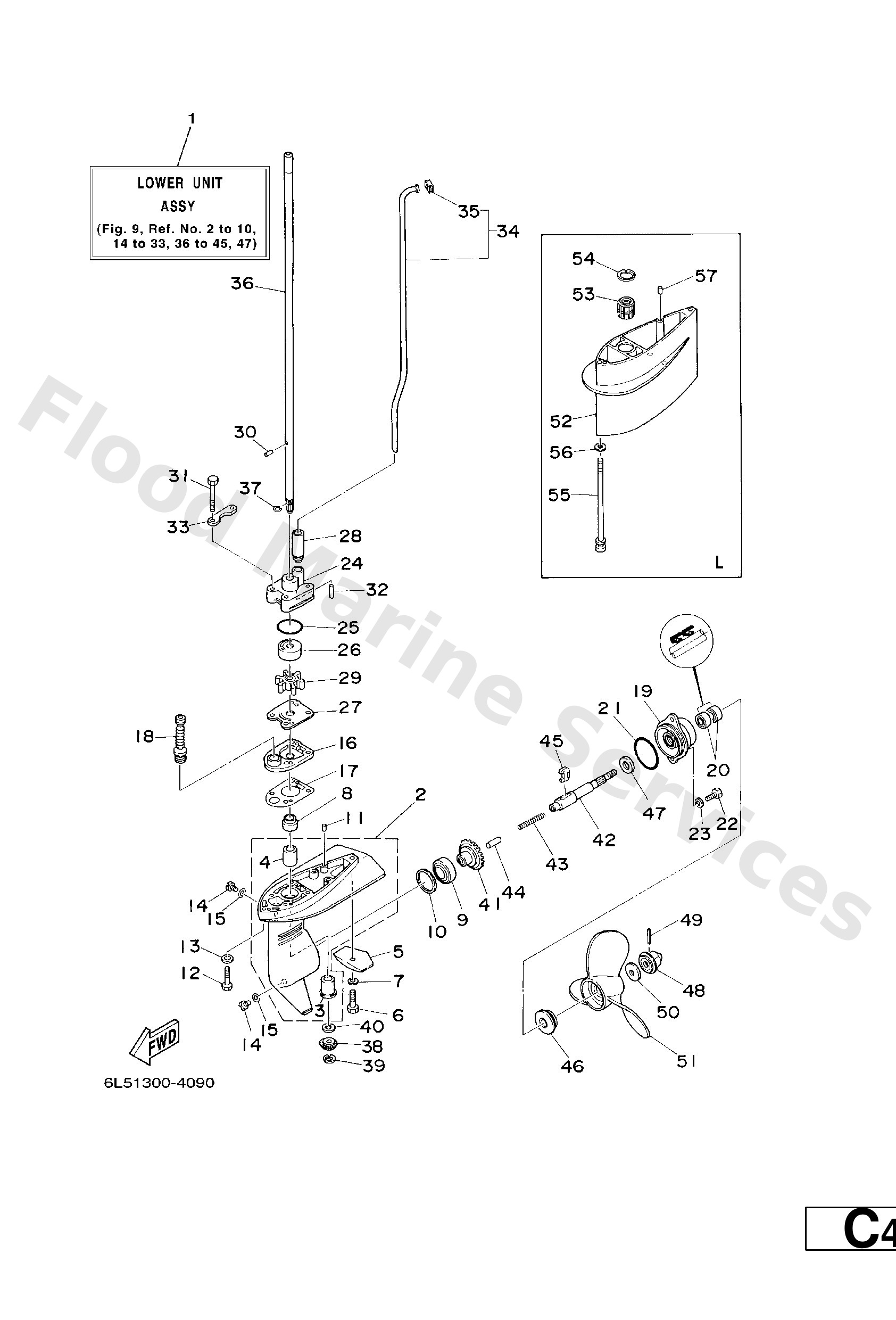

Diagram: LOWER CASING. DRIVE
Parts List
Reference
Description
Price
1
6L5−45300−11−4D
L
Lower Unit assembly
Loading…
↗
1
6L5−45300−01−4D
S
Lower unit assembly
Loading…
↗
2
6L5−45311−00−4D
Casing, lower
Loading…
↗
3
6L5−45317−09
Bushing, d/shaft 2 90381-09m08
Loading…
↗
4
6L5−45316−09
Bushing, d/shaft 1 90380-09m23
Loading…
↗
5
6L5−45251−03
Anode
Loading…
↗
6
95895−06030
S
Bolt, flange deep recess
Loading…
↗
6
90101−06M18
L
Bolt(6l5)
Loading…
↗
7
92990−06300
Washer, tooth
Loading…
↗
8
93103−09M41
Oil seal
Loading…
↗
9
93316−003U0
Bearing, cylindrical(6l5)
Loading…
↗
10
6L5−45567−00
UN
Shim
Loading…
↗
57
93604−12M07
L
Pin, dowel (688)
Loading…
↗
12
97095−06030
Bolt(jf7)
Loading…
↗
13
92995−06600
Washer, plain (646)
Loading…
↗
14
90340−08002
Plug, straight screw
Loading…
↗
15
90430−08020
Gasket
Loading…
↗
16
6L5−45321−00−5B
Plate
Loading…
↗
17
6L5−45315−A0
Packing,l0wer casing
Loading…
↗
18
6L2−44147−00
Boot, shift rod
Loading…
↗
19
6L5−45361−00−4D
Cap, lower casing
Loading…
↗
20
93101−13M12
Oil seal
Loading…
↗
21
93210−48214
O-ring
Loading…
↗
22
97095−06016
Bolt, hexagon deep recess
Loading…
↗
24
6L5−44311−00
Housing, water pump
Loading…
↗
25
93210−33M85
O-ring(6l5)
Loading…
↗
26
6L5−44322−00
Insert, cartridge
Loading…
↗
27
6L5−44323−00
Outer plate, cartridge
Loading…
↗
28
6E0−44366−00
Damper, water seal 2
Loading…
↗
29
6L5−44352−00
Impeller
Loading…
↗
30
93604−07M13
Pin, dowel(6l5)
Loading…
↗
31
97095−06040
Bolt (682)
Loading…
↗
32
93604−18080
Pin. dowel. (647)
Loading…
↗
33
6L5−44328−00
Plate
Loading…
↗
34
6L5−44360−11
L
Water Tube assembly
Loading…
↗
34
6L5−44360−01
S
Water tube assembly
Loading…
↗
35
646−44365−00
Damper, water seal 1
Loading…
↗
36
6L5−45511−00
S
Shaft, drive
Loading…
↗
36
6L5−45511−10
L
Shaft, Drive
Loading…
↗
37
90467−07M12
Clip(6l5)
Loading…
↗
38
6L5−45551−00
Pinion
Loading…
↗
39
99001−06600
Circlip(53l)
Loading…
↗
40
6L5−45533−00−20
UR
Shim (T)2.0Mm)
Loading…
↗
40
6L5−45533−00−21
UR
Shim (t:2.1mm)
Loading…
↗
40
6L5−45533−00−22
UR
Shim (t:2.2mm)
Loading…
↗
40
6L5−45533−00−23
UR
Shim (t:2.3mm)
Loading…
↗
41
6L5−45560−00
Gear
Loading…
↗
42
6L5−45611−00
Shaft, propeller
Loading…
↗
43
90501−10064
Spring, compression 6164563600
Loading…
↗
44
6L5−45635−00
Plunger, shift
Loading…
↗
45
6L5−45631−00
Clutch, dog
Loading…
↗
46
6L5−45987−01
Spacer 1
Loading…
↗
47
90201−13198
Washer 6474556600
Loading…
↗
48
6L5−45616−00
Nut, propeller
Loading…
↗
49
91490−25030
Pin, cotter(6l5)
Loading…
↗
50
90201−08M54
Washer, plate (6e5)
Loading…
↗
51
6L5−45943−00−EL
UR
Propeller (3x7-1/4 x6 -bs)
Loading…
↗
51
6L5−45945−00−EL
UR
Propeller (3x7-1/4"x7-1/4"-bs)
Loading…
↗
51
6L5−45947−00−EL
UR
Propeller (3x7-1/4"x8-1/4"-bs)
Loading…
↗
51
6L5−45949−00−EL
UR
Propeller (3x7-1/4 x5 -bs)
Loading…
↗
51
6L5−45952−00−EL
UR
Propeller (3x7-1/4"x5-1/2"-bs)
Loading…
↗
52
6L5−45211−00−4D
L
Extension
Loading…
↗
53
6L5−45318−00
L
Bushing, drive shaft
Loading…
↗
54
93420−22M03
L
Cir clip (6e0)
Loading…
↗
56
92990−06600
L
Washer, plain (646)
Loading…
↗
