115BETO (1998)
LOWER CASING. DRIVE 1

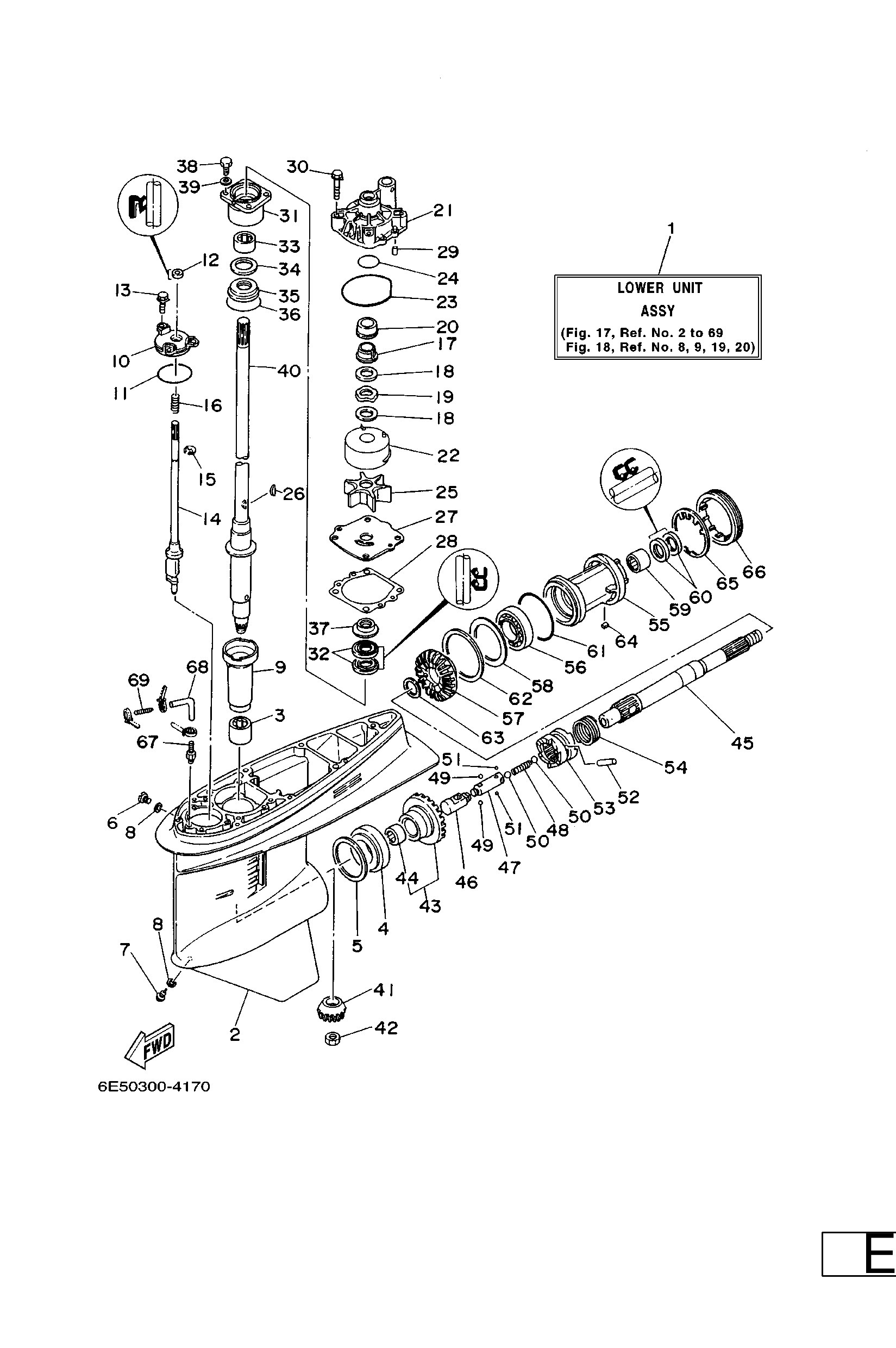

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
3
93315628U9
Brg,cyl-cal roller (6e5)
Loading…
↗
4
93332000U7
Brg,tapered roller 76mm (6e5)
Loading…
↗
6
9034008M04
Plug, straight screw
Loading…
↗
7
6884534100
Plug, drain
Loading…
↗
8
9043008020
Gasket
Loading…
↗
9
6E54553600
Sleeve, drive shaft
Loading…
↗
10
6E54532100
Plate
Loading…
↗
11
9321058677
O-ring(47x)
Loading…
↗
12
9310609014
Oil seal
Loading…
↗
13
9011906M10
Bolt, with washer
Loading…
↗
14
6E54415001
Shift cam assembly
Loading…
↗
15
9900108600
Circlip(2r6)
Loading…
↗
16
9050111M10
Spring, compression (663)
Loading…
↗
17
61A4553800
Spacer, 1
Loading…
↗
18
9020122M01
Washer, plate(61a)
Loading…
↗
19
9020622M19
Washer, wave(61a)
Loading…
↗
20
61A4552700
Collar, drive shaft
Loading…
↗
21
61A4431101
Housing, water pump
Loading…
↗
22
61A4432201
Insert, cartridge
Loading…
↗
23
9321086M38
O-ring (6e5)
Loading…
↗
24
9321037M67
O-ring (6g8)
Loading…
↗
25
6E54435200
Impeller
Loading…
↗
26
9028004M05
Key, woodruff (6e5)
Loading…
↗
27
6E54432300
Outer plate, cartridge
Loading…
↗
28
6E544315A0
Gasket,water pump
Loading…
↗
29
9360612019
Pin, dowel (614)
Loading…
↗
30
9011908M14
Bolt, with washer
Loading…
↗
31
6E5453310094
Housing, bearing
Loading…
↗
32
9310128M16
Oil seal (6e5)
Loading…
↗
33
93315430V5
Bearing, cylindrical(6k0)
Loading…
↗
34
6E5455870112
Shim (t:0.12mm)
Loading…
↗
34
6E5455870150
Shim (t:0.50mm)
Loading…
↗
34
6E5455870140
Shim (t:0.40mm)
Loading…
↗
34
6E5455870130
Shim (t:0.30mm)
Loading…
↗
34
6E5455870118
Shim (t:0.18mm)
Loading…
↗
34
6E5455870115
Shim (t:0.15mm)
Loading…
↗
34
6E5455870110
Shim (t:0.10mm)
Loading…
↗
35
93341930U0
Bearing, thrust(64d)
Loading…
↗
36
9321054534
O-ring (70e)
Loading…
↗
37
6E54534400
Cover, oil seal
Loading…
↗
38
9709508025
Bolt (62g)
Loading…
↗
39
9299008600
Washer, plain (663)
Loading…
↗
40
6E54550101
Drive shaft comp.
Loading…
↗
41
6E54555102
Pinion
Loading…
↗
42
9017016M01
Nut, hexagon (688)
Loading…
↗
43
6E54556001
Gear 1 assembly
Loading…
↗
44
93315425U7
Brg,cyl-cal roller (6e5)
Loading…
↗
45
6E54561101
Shaft, propeller
Loading…
↗
46
6E54564101
Shifter
Loading…
↗
47
6E54563401
Slide, shift
Loading…
↗
48
9050116M37
Spring (6g5)
Loading…
↗
49
9350732031
Ball (12r)
Loading…
↗
50
9351132027
Ball (498)
Loading…
↗
51
9350316003
Ball
Loading…
↗
52
9025008M07
Pin, straight (6g5)
Loading…
↗
53
6E54563101
Clutch, dog
Loading…
↗
54
6E54563301
Ring, cross pin
Loading…
↗
55
6E5453320094
Housing, bearing
Loading…
↗
56
93306208U0
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
57
6E54557101
Gear 2
Loading…
↗
58
6E54557600
Washer, thrust 2
Loading…
↗
59
93315430U8
Bearing
Loading…
↗
60
9310130M17
Oil seal (6e5)
Loading…
↗
61
9321086M39
O-ring (6e5)
Loading…
↗
62
6L6455770040
Shim (t:0.40mm)
Loading…
↗
62
6L6455770050
Shim (t:0.50mm)
Loading…
↗
62
6L6455770030
Shim (t:0.30mm)
Loading…
↗
62
6L6455770018
Shim (t:0.18mm)
Loading…
↗
62
6L6455770015
Shim (t:0.15mm)
Loading…
↗
62
6L6455770012
Shim (t:0.12mm)
Loading…
↗
62
6L6455770010
Shim (t:0.10mm)
Loading…
↗
63
9020130M92
Washer (6g5)
Loading…
↗
64
9028204010
Key, strait(663)
Loading…
↗
65
6884538300
Washer, claw
Loading…
↗
66
6884538400
Nut
Loading…
↗
67
6E54537800
Nipple, hose
Loading…
↗
68
9044507ME8
Hose (l250)
Loading…
↗
69
6E58355810
End, nipple
Loading…
↗
