15FWC (2002)
LOWER CASING. DRIVE 1

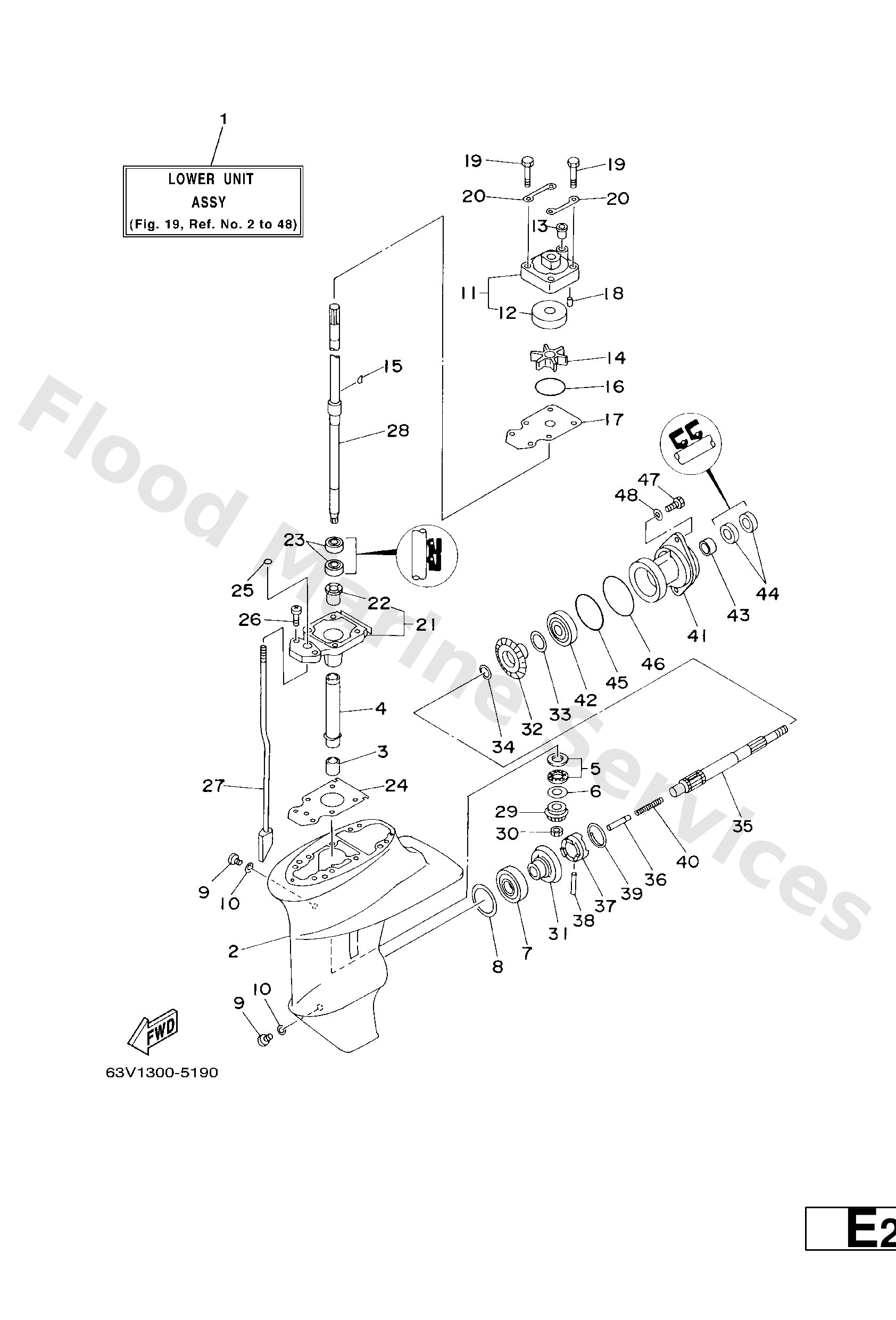

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
63V--45300--13--4D
L
Lower unit assembly
Loading…
↗
1
63V--45300--03--4D
S
Lower unit assembly
Loading…
↗
2
63V--45311--01--4D
Casing, lower
Loading…
↗
3
93315--314V8
Bearing, needle (6e7)
Loading…
↗
4
63V--45536--00
Sleeve, drive shaft
Loading…
↗
5
93341--41414
Bearing
Loading…
↗
6
6E8--45587--10--13
UR
Shim (t:1.13mm)
Loading…
↗
6
6E8--45587--10--20
UR
Shim (t:1.20mm)
Loading…
↗
7
93332--00005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
8
664--45567--01--10
UR
Shim (t:0.10mm)
Loading…
↗
8
664--45567--01--12
UR
Shim (t:0.12mm)
Loading…
↗
8
664--45567--01--15
UR
Shim (t:0.15mm)
Loading…
↗
8
664--45567--01--18
UR
Shim (t:0.18mm)
Loading…
↗
8
664--45567--01--30
UR
Shim (t:0.30mm)
Loading…
↗
8
664--45567--01--40
UR
Shim (t:0.40mm)
Loading…
↗
8
664--45567--01--50
UR
Shim (t:0.50mm)
Loading…
↗
9
90340--08002
Plug, straight screw
Loading…
↗
10
90430--08020
Gasket
Loading…
↗
11
63V--44301--00
Water pump housing comp.
Loading…
↗
12
63V--44322--00
Insert, cartridge
Loading…
↗
13
647--44366--00
Damper, water seal 2
Loading…
↗
14
63V--44352--01
Impeller
Loading…
↗
15
63V--44338--00
Key, woodruff
Loading…
↗
16
93210--44398
O-ring(55x)
Loading…
↗
17
63V--44323--00
Outer plate, cartridge
Loading…
↗
18
93604--12M07
Pin, dowel (688)
Loading…
↗
19
97080--08045
Bolt, hexagon
Loading…
↗
20
63V--44328--00
Plate
Loading…
↗
21
63V--45331--00--5B
Housing, bearing
Loading…
↗
22
9038114020
Bushing, drive shaft 1
Loading…
↗
23
93101--20048
Oil seal (20x30x6-648)
Loading…
↗
24
63V--45315--A0
Packing, lower casing
Loading…
↗
25
93210--06ME6
O-ring
Loading…
↗
26
97080--08025
Screw, bind(j36)
Loading…
↗
27
63V--44150--00
S
Shift cam assembly
Loading…
↗
27
63V--44150--10
L
Shift cam assembly
Loading…
↗
28
63V--45510--01
S
Drive shaft assembly
Loading…
↗
28
63V--45510--11
L
Drive shaft assembly
Loading…
↗
29
63V--45551--00
Pinion
Loading…
↗
30
90179--08M06
Nut (6e7)
Loading…
↗
31
6E7--45560--01
Gear
Loading…
↗
32
6E7--45571--00
Gear 2
Loading…
↗
33
626--45577--00--01
UR
Shim (t:0.10mm)
Loading…
↗
33
626--45577--00--03
UR
Shim (t:0.30mm)
Loading…
↗
33
626--45577--00--05
UR
Shim (t:0.50mm)
Loading…
↗
34
90201--17682
Washer, plate (2k7)
Loading…
↗
35
683--45611--00
Shaft propeller
Loading…
↗
36
650--45635--00
Plunger, shift
Loading…
↗
37
682--45631--00
Clutch, dog
Loading…
↗
38
90250--05010
Pin straight 648456320000
Loading…
↗
39
648--45633--00
Ring, cross pin
Loading…
↗
40
90501--14M06
Spring, compression
Loading…
↗
41
683--45361--02--4D
Cap, lower casing
Loading…
↗
42
93306--00501
Bearing(1ff)
Loading…
↗
43
93315--317U2
Brg,cyl-cal roller 14g (683)
Loading…
↗
44
93101--17054
Oil seal (17x30x6-650)
Loading…
↗
45
93210--57M09
O-ring (683)
Loading…
↗
46
93210--56M80
O-ring(6j8)
Loading…
↗
47
97095--06020
Bolt(7u8)
Loading…
↗
48
92995--06600
Washer, plain (646)
Loading…
↗
