20DWO (2002)
LOWER CASING. DRIVE 1

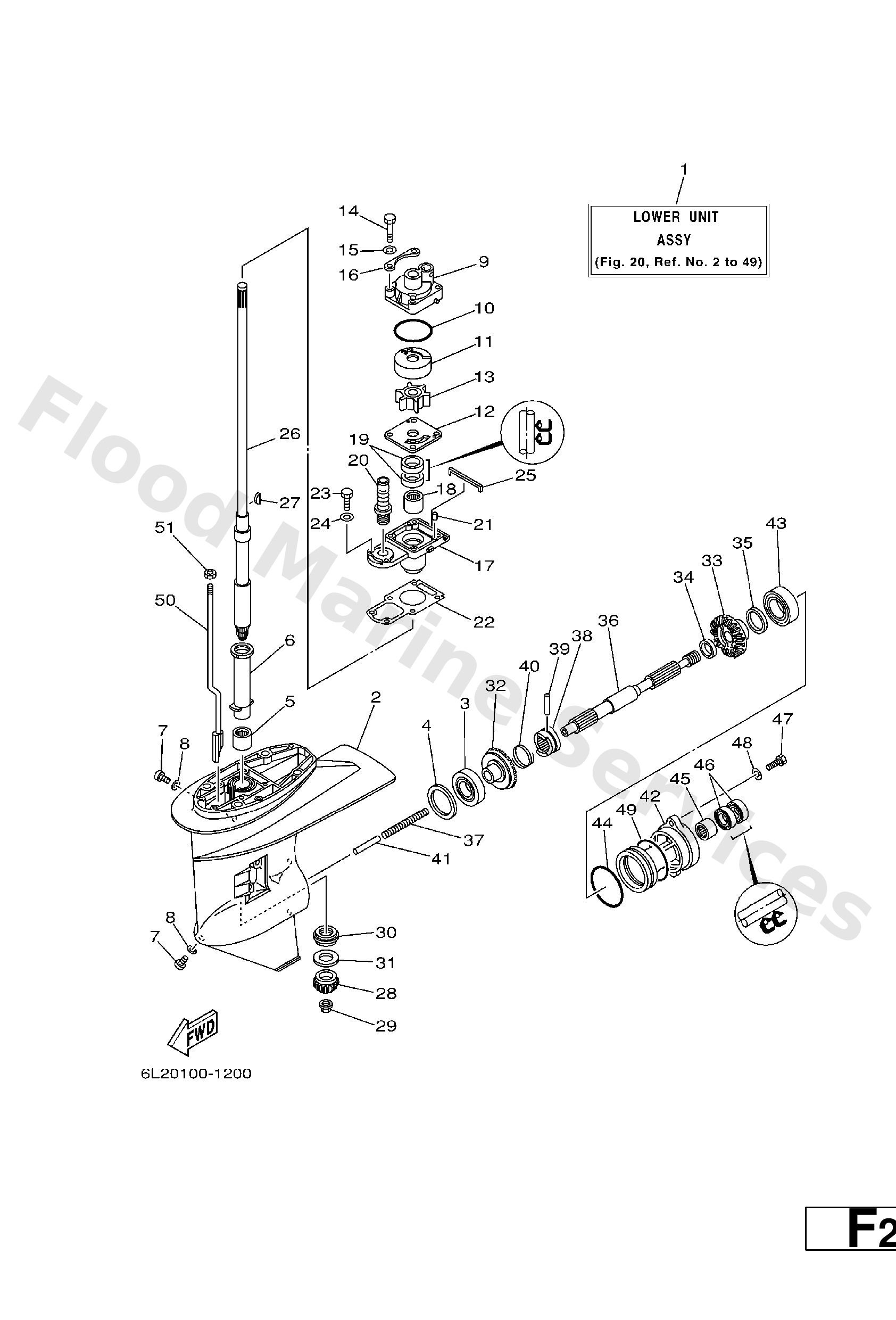

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
6L2−45300−12−4D
L
Lower unit assembly
Loading…
↗
1
6L2−45300−02−4D
S
Lower unit assembly
Loading…
↗
2
6L2−45311−02−4D
Casing, lower
Loading…
↗
3
93332−00005
Brg,cyl-cal roller 0.19g nt
Loading…
↗
4
6L2−45567−00−10
UR
Shim (t:1.0mm)
Loading…
↗
4
6L2−45567−00−11
UR
Shim (t:1.1mm)
Loading…
↗
4
6L2−45567−00−12
UR
Shim (t:1.2mm)
Loading…
↗
4
6L2−45567−00−13
UR
Shim (t:1.3mm)
Loading…
↗
4
6L2−45567−00−14
UR
Shim (t:1.4mm)
Loading…
↗
5
93315−220V9
Bearing, cylindrical(6l2)
Loading…
↗
6
6L2−45536−00
Sleeve, drive shaft
Loading…
↗
7
90340−08002
Plug, straight screw
Loading…
↗
8
90430−08020
Gasket
Loading…
↗
9
6L2−44311−00
Housing, water pump
Loading…
↗
10
93210−45161
O-ring
Loading…
↗
11
6L2−44322−00
Insert, cartridge
Loading…
↗
12
6L2−44323−00
Outer plate, cartridge
Loading…
↗
13
6L2−44352−00
Impeller
Loading…
↗
14
97095−06040
Bolt (682)
Loading…
↗
15
92995−06600
Washer, plain (646)
Loading…
↗
16
6L2−44328−00
Plate
Loading…
↗
17
6L2−45331−00−5B
Housing, bearing
Loading…
↗
18
93315−22004
Brg,cyl-cal roller 21g nt
Loading…
↗
19
93101−20048
Oil seal (20x30x6-648)
Loading…
↗
20
6L2−44147−00
Boot, shift rod
Loading…
↗
21
93604−12M07
Pin, dowel (688)
Loading…
↗
22
6L2−45315−A0
Packing,l0wer casing
Loading…
↗
23
97095−06020
Bolt(7u8)
Loading…
↗
25
6L2−45375−00
Damper, seal
Loading…
↗
26
6L2−45510−10
L
Drive shaft assembly
Loading…
↗
26
6L2−45510−00
S
Drive shaft assembly
Loading…
↗
27
90280−03024
Key, woodruff(662)
Loading…
↗
28
6L2−45551−01
Pinion
Loading…
↗
29
90179−10M14
Nut(6j8)
Loading…
↗
30
93341−320U0
Bearing, thrust (6l2)
Loading…
↗
31
6L2−45587−00−15
UR
Shim (t:1.5mm)
Loading…
↗
31
6L2−45587−00−16
UR
Shim (t:1.6mm)
Loading…
↗
32
6L2−45560−00
Gear
Loading…
↗
33
6L2−45571−00
Gear
Loading…
↗
34
90201−20417
Washer, plate(663)
Loading…
↗
35
6L2−45577−00−10
UR
Shim (t:1.0mm)
Loading…
↗
35
6L2−45577−00−11
UR
Shim (t:1.1mm)
Loading…
↗
35
6L2−45577−00−12
UR
Shim (t:1.2mm)
Loading…
↗
35
6L2−45577−00−13
UR
Shim (t:1.3mm)
Loading…
↗
36
6L2−45611−00
Shaft, propeller
Loading…
↗
37
90501−10065
Spring compression648456360000
Loading…
↗
38
6L2−45631−00
Clutch, dog
Loading…
↗
39
90250−05010
Pin straight 648456320000
Loading…
↗
40
648−45633−00
Ring, cross pin
Loading…
↗
41
648−45635−00
Plunger,shift
Loading…
↗
42
6L2−45361−03−4D
Cap, lower casing
Loading…
↗
43
93306−00612
Bearing(2hr)
Loading…
↗
44
93210−60MA3
O-ring(6j8)
Loading…
↗
46
93101−20M07
Oil seal
Loading…
↗
49
93210−60M99
O-ring(6t3)
Loading…
↗
50
6L2−44150−00
S
Shift cam assembly
Loading…
↗
50
6L2−44150−10
L
Shift cam assembly
Loading…
↗
51
95380−06600
Nut(661)
Loading…
↗
