250BETO (2002)
LOWER CASING. DRIVE 1

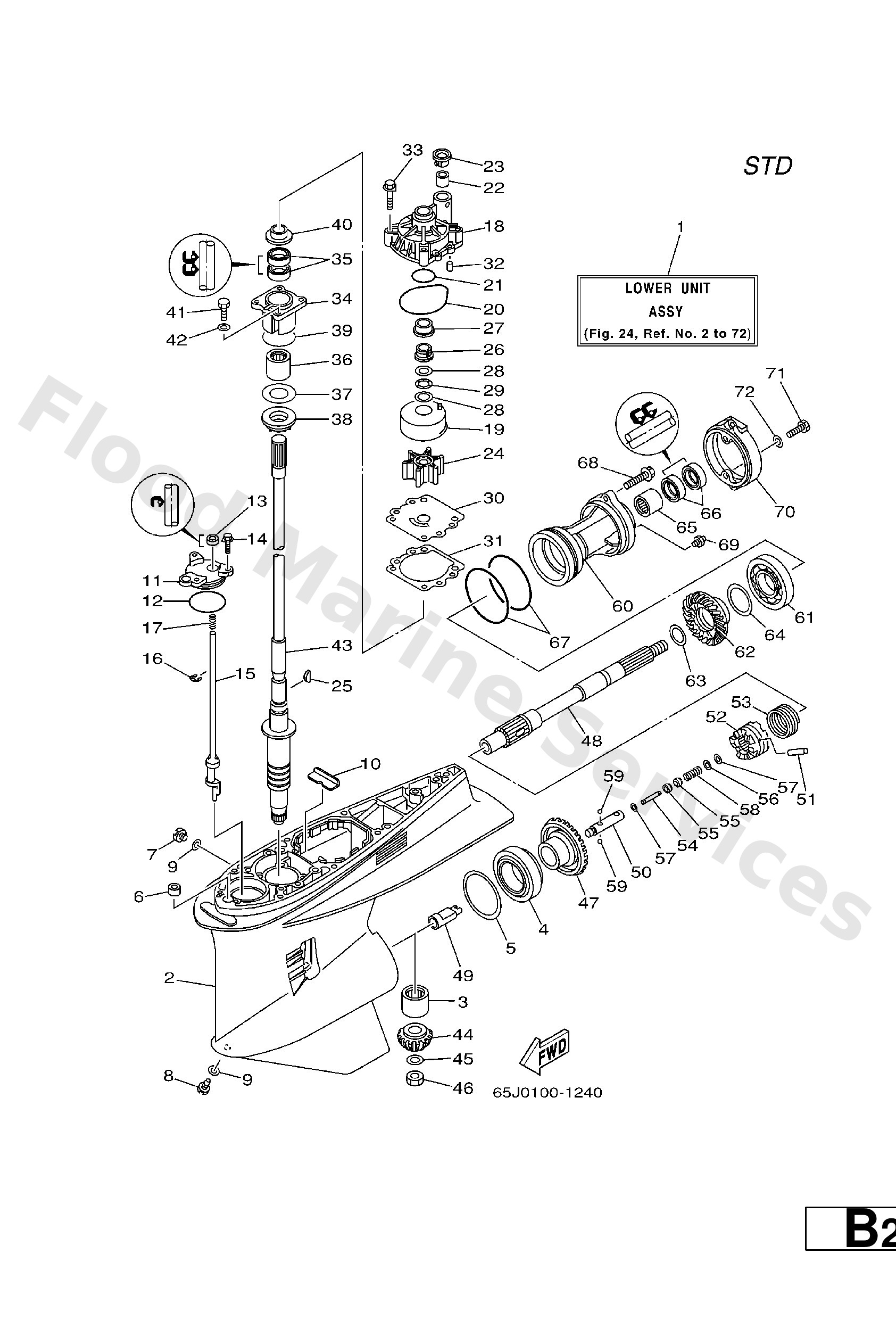

Diagram: LOWER CASING. DRIVE 1
Parts List
Reference
Description
Price
1
65J45300208D
X
Lower Unit assembly
Loading…
↗
2
61A45301038D
Casing, lower
Loading…
↗
3
93311--832V2
Ball bearing
Loading…
↗
4
93332--000W1
Bearing(61a)
Loading…
↗
5
61A--45567--00--12
UR
Shim (t:0.12mm)
Loading…
↗
5
61A--45567--00--15
UR
Shim (t:0.15mm)
Loading…
↗
5
61A--45567--00--18
UR
Shim (t:0.18mm)
Loading…
↗
5
61A--45567--00--30
UR
Shim (t:0.30mm)
Loading…
↗
5
61A455670040
UR
Shim (t:0.40mm)
Loading…
↗
5
61A455670050
UR
Shim (t:0.50mm)
Loading…
↗
5
61A--45567--00--10
UR
Shim (t:0.10mm)
Loading…
↗
6
663--44366--00
Damper, water seal 2
Loading…
↗
7
90340--08002
Plug, straight screw
Loading…
↗
8
688--45341--10
Plug, drain
Loading…
↗
9
90430--08020
Gasket
Loading…
↗
10
61A453760094
Guide, seal damper
Loading…
↗
11
61A--45321--01
Plate
Loading…
↗
12
93210--64488
93210-64488
Loading…
↗
13
93106--09014
Oil seal
Loading…
↗
14
90119--06M10
Bolt, with washer
Loading…
↗
15
61A--44150--01
Shift cam assembly
Loading…
↗
16
99001--08600
Circlip(2r6)
Loading…
↗
17
90501--11M10
Spring, compression (663)
Loading…
↗
18
61A--44311--01
Housing, water pump
Loading…
↗
19
61A--44322--02
Insert, cartridge
Loading…
↗
20
93210--86M38
O-ring (6e5)
Loading…
↗
21
93210--37160
O-ring (6g8)
Loading…
↗
22
6E5--44365--00
Damper, water seal 1
Loading…
↗
23
6E5--44312--00
Cover, water pump housing
Loading…
↗
24
6E5--44352--01
Impeller
Loading…
↗
25
90280--04M05
Key, woodruff (6e5)
Loading…
↗
26
61A--45538--00
Spacer, 1
Loading…
↗
27
61A--45527--00
Collar, drive shaft
Loading…
↗
28
90201--22M01
Washer, plate(61a)
Loading…
↗
29
90206--22M19
Washer, wave(61a)
Loading…
↗
30
6G5--44323--00
Outer plate, cartridge
Loading…
↗
31
6E5--44315--A0
Gasket,water pump
Loading…
↗
32
93606--12019
Pin, dowel (614)
Loading…
↗
33
90119--08M14
Bolt, with washer
Loading…
↗
34
61A--45331--00--94
Housing, bearing
Loading…
↗
35
93101--28M16
Oil seal (6e5)
Loading…
↗
36
93317--330U2
Bearing, cylindrical(6k0)
Loading…
↗
37
61A--45587--00--50
UR
Shim (t:0.50mm)
Loading…
↗
37
61A--45587--00--40
UR
Shim (t:0.40mm)
Loading…
↗
37
61A455870030
UR
Shim (t:0.30mm)
Loading…
↗
37
61A455870018
UR
Shim (t:0.18mm)
Loading…
↗
37
61A--45587--00--12
UR
Shim (t:0.12mm)
Loading…
↗
37
61A455870015
UR
Shim (t:0.15mm)
Loading…
↗
37
61A455870010
UR
Shim (t:0.10mm)
Loading…
↗
38
93341--930U9
Bearing
Loading…
↗
39
93210--55M14
O-ring (70e)
Loading…
↗
40
6E5--45344--00
Cover, oil seal
Loading…
↗
41
97095--08025
Bolt (62g)
Loading…
↗
42
92995--08600
Washer, plain (663)
Loading…
↗
43
61A4550120
X
Drive shaft comp.
Loading…
↗
44
61A--45551--03
Pinion
Loading…
↗
45
90201--16M00
Washer, plate(6t5)
Loading…
↗
46
90170--16M19
Nut(6t5)
Loading…
↗
47
61A4556003
Gear
Loading…
↗
48
61A--45611--02
Shaft, propeller
Loading…
↗
49
61A4564101
Shifter
Loading…
↗
50
61A--45634--01
Slide, shift
Loading…
↗
51
61A--45632--00
Pin, cross
Loading…
↗
52
61A4563103
Clutch, dog
Loading…
↗
53
61A--45633--00
Ring, cross pin
Loading…
↗
54
6H1--45668--00
Shaft, free 1
Loading…
↗
55
61A--45635--00
Plunger, shift
Loading…
↗
56
90201--02M00
Washer, plate(61a)
Loading…
↗
57
90183--02M03
Nut, spring (6h1)
Loading…
↗
58
90501--10M77
Spring, compression(61a)
Loading…
↗
59
93501--04011
Ball
Loading…
↗
60
61A--45332--02--94
Housing, bearing
Loading…
↗
61
93306--210U0
Bearing(61a)
Loading…
↗
62
61A4557100
Gear
Loading…
↗
63
90201--31M00
Washer, plate(61a)
Loading…
↗
64
61A--45577--00--30
UR
Shim (t:0.30mm)
Loading…
↗
64
61A455770040
UR
Shim (t:0.40mm)
Loading…
↗
64
61A455770018
UR
Shim (t:0.18mm)
Loading…
↗
64
61A455770015
UR
Shim (t:0.15mm)
Loading…
↗
64
61A455770012
UR
Shim (t:0.12mm)
Loading…
↗
64
61A455770010
UR
Shim (t:0.10mm)
Loading…
↗
64
61A455770050
UR
Shim (t:0.50mm)
Loading…
↗
65
93317--330U5
Bearing
Loading…
↗
66
93101--30M17
Oil seal (6e5)
Loading…
↗
67
93211--04384
O-ring (705)
Loading…
↗
68
90105--08M48
Bolt, Flange
Loading…
↗
69
93700--09M00
Nipple, grease(6t4)
Loading…
↗
70
61A45361015B
Cap, lower casing
Loading…
↗
71
97095--08020
Bolt, hexagon
Loading…
↗
